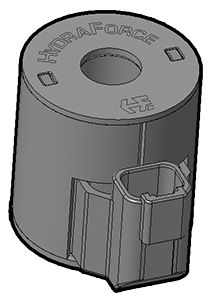

E COIL 10 SIZE

Overview

Description

Magnet wire winding overmolded 30% glass filled polyester, and enclosed in a three piece zinc plated metal shell.

Properties
Magnet wire:
  • U.S. class N 200 °C (392 °F) minimum rating
Mating connector:
  • DT06-2S-P012 DEUTSCH DT04-2P
  • DELPHI/PACKARD number 12052641 METRI-PACK 150-2M
Coil metal frame:
  • plated for 1,000 hours of salt spray per ASTM B117-09 before corrosion (red rust)
Electrical Parameters
Coil resistance:
  • 4.78 ohm ±3% At 20 °C (68 °F), 10 Vdc coil
  • 7.09 ohm ±3% At 20 °C (68 °F), 12 Vdc coil
  • 19.12 ohm ±5% At 20 °C (68 °F), 20 Vdc coil
  • 28.5 ohm ±5% At 20 °C (68 °F), 24 Vdc coil
Coil inductance:
  • 14.91 mH ±5% At 20 °C (68 °F), 10 Vdc coil
  • 15.30 mH ±5% At 20 °C (68 °F), 12 Vdc coil
  • 51.51 mH ±5% At 20 °C (68 °F), 20 Vdc coil
  • 70.18 mH ±5% At 20 °C (68 °F), 24 Vdc coil
Coil initial current draw:
  • 2.09 A 10 V coil
  • 1.69 A 12 V coil
  • 1.05 A 20 V coil
  • 0.84 A 24 V coil
Coil initial power consumption:
  • 20.92 W 10 V coil
  • 20.31 W 12 V coil
  • 20.92 W 20 V coil
  • 20.21 W 24 V coil
Bidirectional Zener Diode Parameters
Maximum clamping voltage:
  • 45.7 V 12 Vdc coil
  • 64.8 V 24 Vdc coil
Maximum peak pulse current:
  • 13.2 A 12 Vdc coil
  • 9.3 A 24 Vdc coil
Reverse standoff voltage:
  • 28.2 V 12 Vdc coil
  • 40.2 V 24 Vdc coil
Maximum reverse leakage:
  • 5.0 µA 12, 24 Vdc coil
Breakdown voltage:
  • 31.4 to 34.7 V 12 Vdc coil
  • 44.7 to 49.4 V 24 Vdc coil
Diode part number:
  • 6110163 12 Vdc coil (ref)
  • 4000063 24 Vdc coil (ref)
Ultra-fast Diode Parameters (12/24 Vdc Coil)
Average forward current:
  • 3.5 A
Repetitive peak reverse voltage:
  • 600 V
Diode part number:
  • 4002474

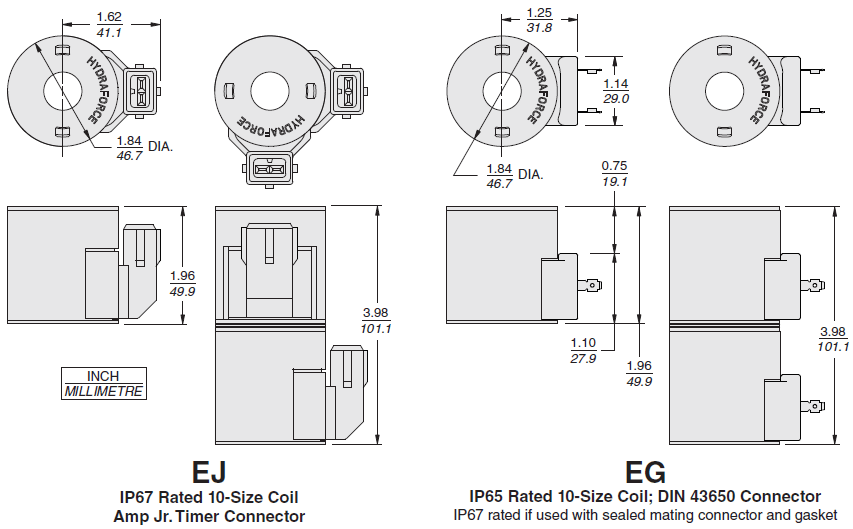

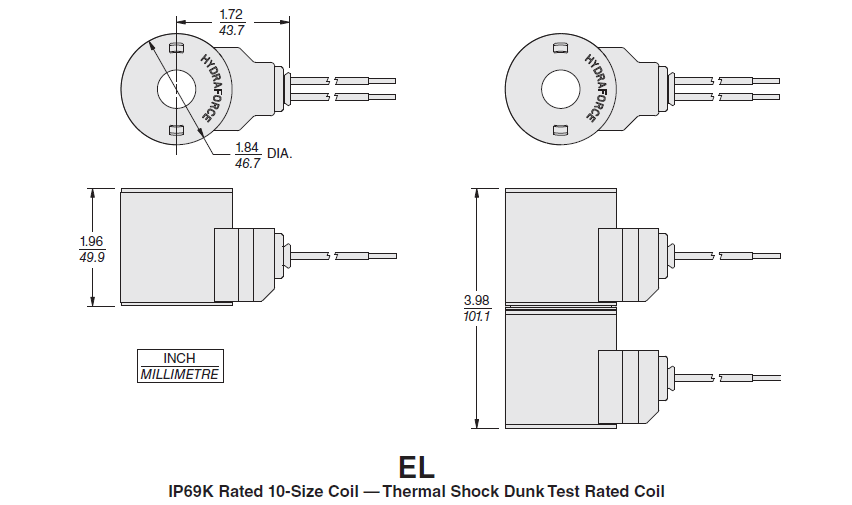

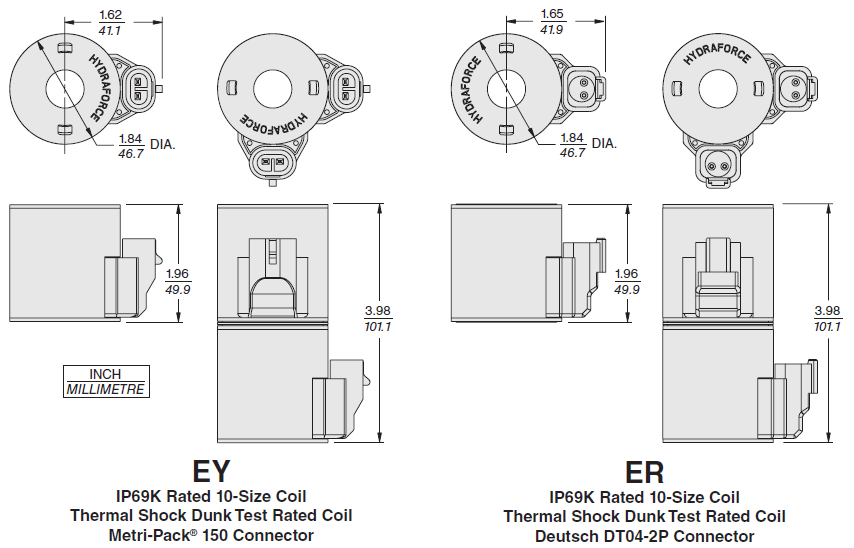

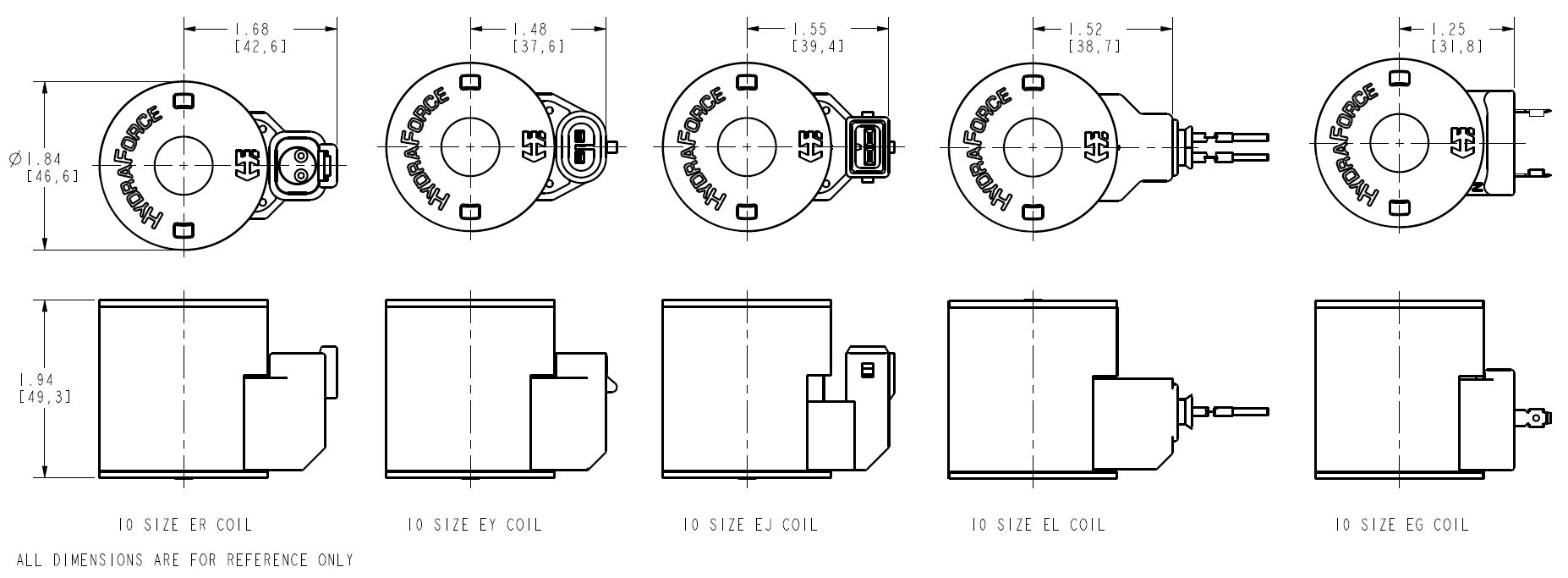

Coil_10_EJ_EG_DIM(2022-02-24) Coil_10_EL_DIM(2022-02-24) Coil_10_EY_ER_DIM(2022-02-24)
Model code
Part no.
Voltage
Connector
IP rating
Diode
10EL
4317210
10
Dual leads/no connector
IP69K
10ER
4303710
10
Deutsch DT04-2P
IP69K
10ER/Z
4304110
10
Deutsch DT04-2P
IP69K
Bidirectional zener diode
12EL
4305712
12
Dual leads/no connector
IP69K
12EL
4317212
12
Dual leads/no connector
IP69K
12EL/Z
4307112
12
Dual leads/no connector
IP69K
Bidirectional zener diode
12EL/W/Z
4307212
12
WeatherPak on leads
IP69K
Bidirectional zener diode
12EG
4305882
12
DIN 43650
IP65
12EJ
4305612
12
AMP Jr. timer
IP67
12EY
4303512
12
Metri-Pack 150 2M
IP69K
12EY/Z
4303912
12
Metri-Pack 150 2M
IP69K
Bidirectional zener diode
12ER
4303712
12
Deutsch DT04-2P
IP69K
12ER/Z
4304112
12
Deutsch DT04-2P
IP69K
Bidirectional zener diode
20ER
4303720
20
Deutsch DT04-2P
IP69K
24EL
4305724
24
Dual leads/no connector
IP69K
24EL/Z
4307124
24
Dual leads/no connector
IP69K
Bidirectional zeener diode
24EL/W/Z
4307224
24
WeatherPak on leads
IP69K
Bidirectional zener diode
24EG
4305884
24
DIN 43650
IP65
24EJ
4305624
24
AMP Jr. timer
IP67
24EY
4303524
24
Metri-Pack 150 2M
IP69K
24EY/Z
4303924
24
Metri-Pack 150 2M
IP69K
Bidirectional zener diode
24ER
4303724
24
Deutsch DT04-2P
IP69K
24ER/Z
4304124
24
Deutsch DT04-2P
IP69K
Bidirectional zener diode
