Cartridge Valves - Electro-proportional Valves - Pressure Controls - Reducing/Relieving - Direct Acting - Pressure Rising With Current - Drop-In Cartridges

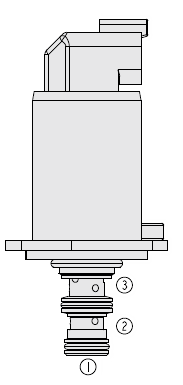

EHPR98-G33A

PROPORTIONAL PRESSURE REDUCING / RELIEVING CARTRIDGE VALVE

Expand All|Collapse All

Overview

Description

The EHPR98-G33XX is a direct-acting, spool-type, proportional, pressure reducing relieving valve. It is a 3rd generation HydraForce drop-in, flange mounted cartridge type valve for use with mineral based or synthetic (with lubricating properties) hydraulic fluids. The coil is an integral part of the valve and is not serviceable the regulated pressure is proportional to the input electrical current in the pressure ranges shown.

Features

  • Economical drop-in style
  • Mounting plate option.
  • Compact size
  • Retrofit option to replace EHPR98-T33
  • Quick response time
  • Inlet screen and pressure options
  • Top-mounted connector
  • Low leakage
Pressure Ratings
Pressure rating:
  • 241 bar (3500 psi) Port 2
  • 45 bar (650 psi) Port 1
  • 34.5 bar (500 psi) Port 3
Proof pressure:
  • 54 bar (780 psi) Port 3
  • 345 bar (5000 psi) Ports 1, 2
Burst pressure:
  • 258 bar (3750 psi) Port 3
Control pressure at maximum control current:
  • 30 bar (435 psi)
Flow Ratings
Flow rating:
  • 3.8 lpm (1.0 gpm)
Maximum internal leakage:
  • 200 ml/min (12.2 in³/min) De-energized, at 241 bar (3500 psi)
  • 200 ml/min (12.2 in³/min) Energized at Imax, at 241 bar (3500 psi)
Hysteresis:
  • 4 % 150 Hz PWM
Other Ratings
Cycle life:
  • 10 million cycles
Environmental rating:
  • IP69K
Corrosion protection:
  • 960 hour salt spray per ASTM B117
Temperature Ratings
Operating fluid temperature:
  • -40 to 149 °C (-40 to 300 °F) HNBR
  • -26 to 204 °C (-15 to 400 °F) Fluorocarbon
  • -54 to 107 °C (-65 to 225 °F) Polyurethane
Storage temperature:
  • -40 to 70 °C (-40 to 158 °F)
Ambient temperature:
  • -40 to 80 °C (-40 to 176 °F)
Fluids:
  • Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Unit weight:
  • 0.26 kg (0.57 lb)
Internal wetted surface area:
  • 90 cm² (14 in²)
Maximum control current:
  • 1.130 A Coil 10 V
  • 0.940 A Coil 12 V
  • 0.780 A Coil 14 V
  • 0.565 A Coil 20 V
  • 0.470 A Coil 24 V
  • 0.390 A Coil 28 V
Coil resistance:
  • 4.83 ohm Coil 10 V
  • 7.28 ohm Coil 12 V
  • 10.05 ohm Coil 14 V
  • 18.35 ohm Coil 20 V
  • 29.54 ohm Coil 24 V
  • 40.36 ohm Coil 28 V
Valve inductance:
  • 68 mH 10 V coil
  • 104 mH 12 V coil
  • 152 mH 14 V coil
  • 284 mH 20 V coil
  • 433 mH 24 V coil
  • 645 mH 28 V coil

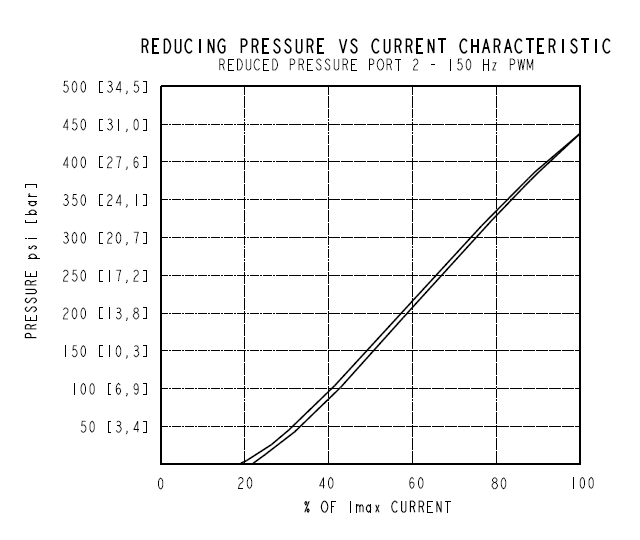

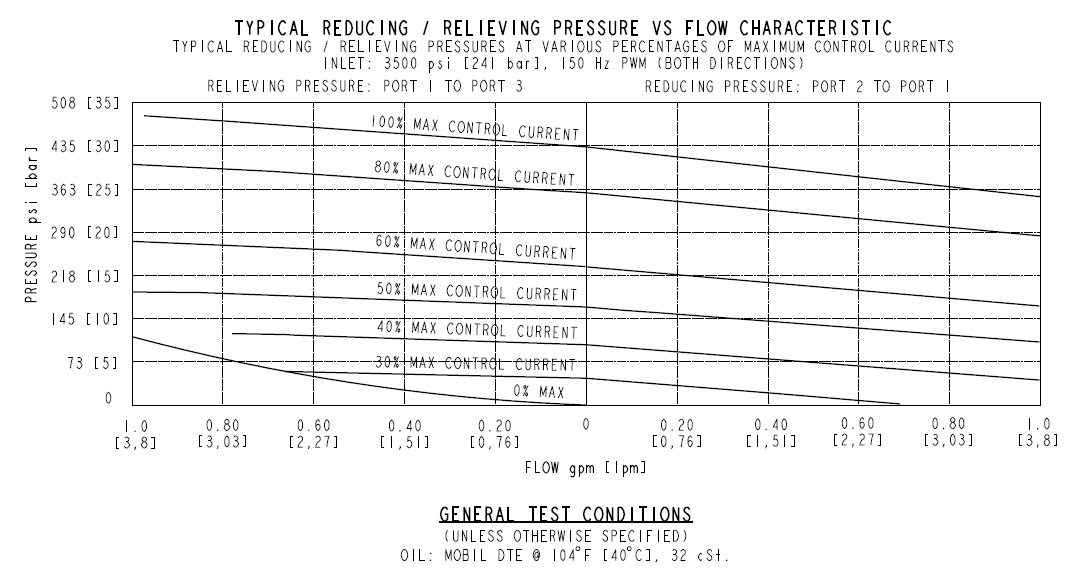

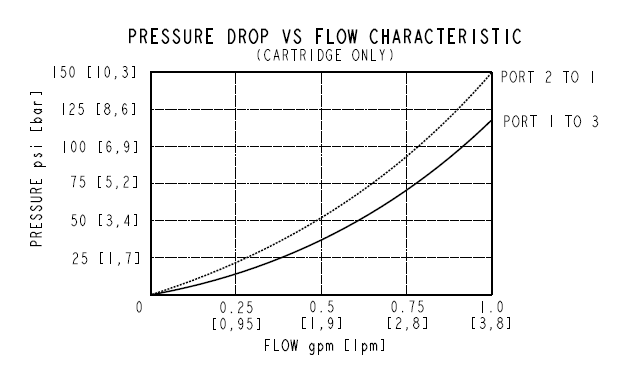

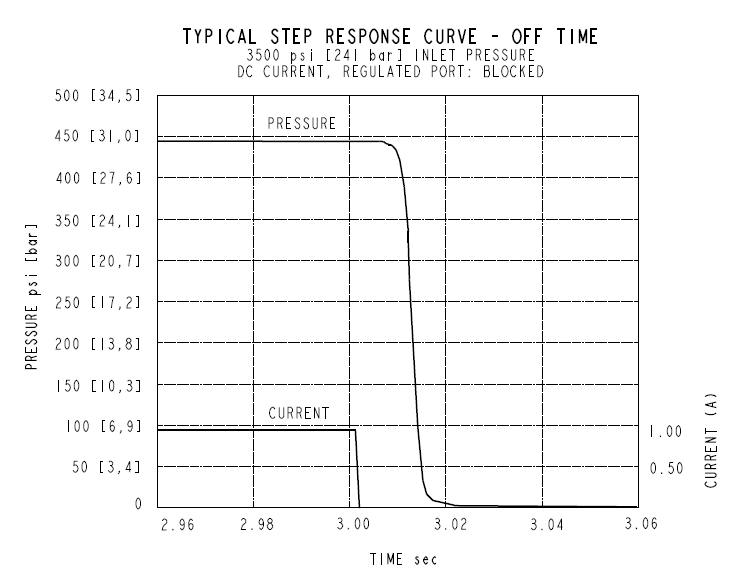

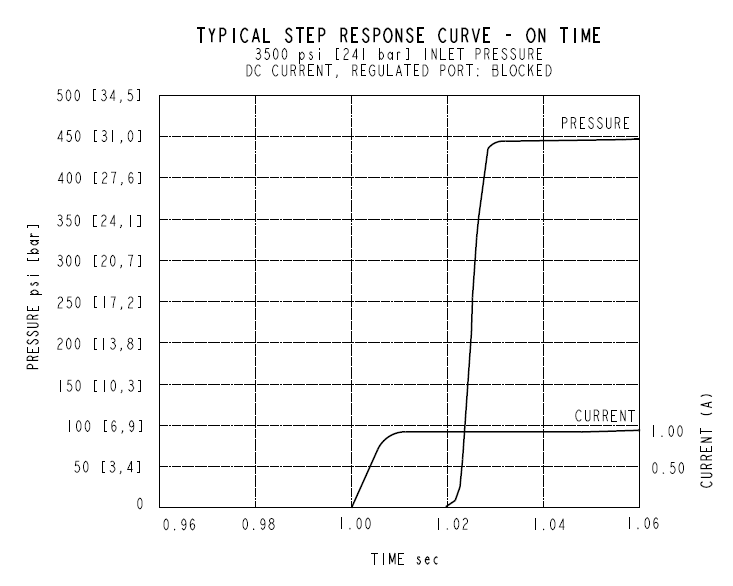

EHPR98-G33A_Perf1(2022-02-24) EHPR98-G33A_Perf2(2022-02-24) EHPR98-G33A_Perf3(2022-02-24) EHPR98-G33A_Perf4(2022-02-24) EHPR98-G33A_Perf5(2022-02-24)

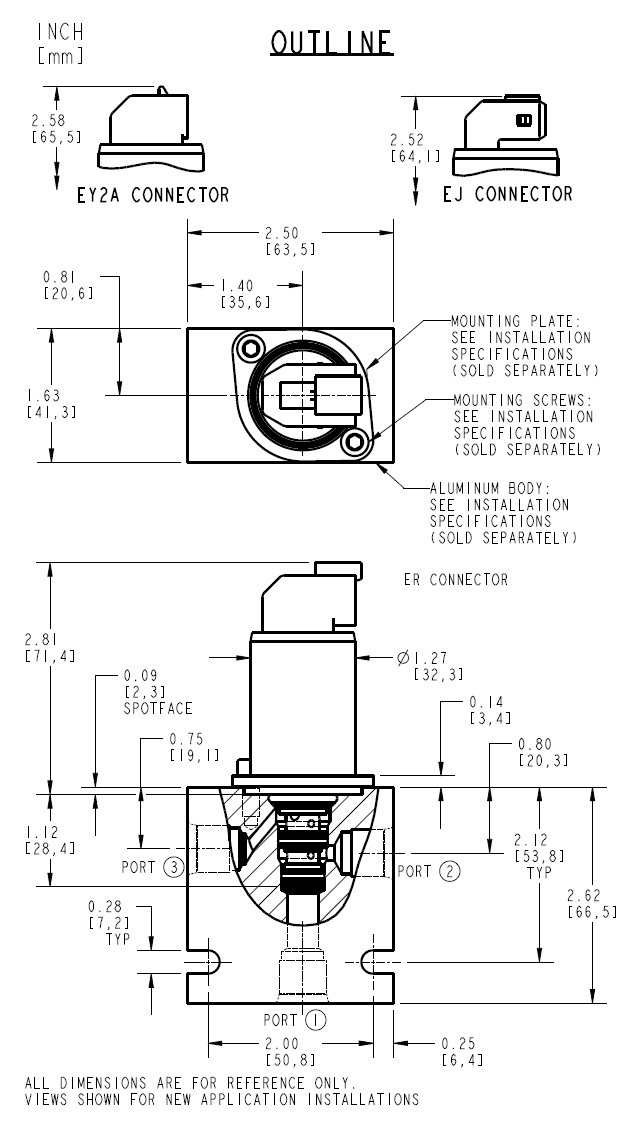

EHPR98-G33A_Dim(2022-02-24)
Cavity:
  • VC-G027 Standard configuration
Installation type:
  • Flange mounted
Orientation restriction:
  • None
Mounting screw torque:
  • 3 to 4 N-m (2.2 to 3.0 ft-lb) For standard VC-G027 Cavity
  • 1.2 to 1.5 N-m (0.9 to 1.1 ft-lb) For retrofit VC-T009 Cavity
Note:
  • For retro-fitting into older drop-in cavities and other mounting options, see "Mounting-options-for-G3-valves" technical reference
Mounting plate:
  • HF P/N 4595096 Use with standard VC-G027 cavity
  • HF P/N 4210226 Use with retrofit VC-T009 cavity
Mounting screw:
  • M5 x 0,8 x 12 mm long, HF P/N: 4002609 (sold separately) Use with standard VC-G027 cavity
  • M4 x 0.7 x 12 mm long, HF P/N: 4001015 (sold separately) Use with retrofit VC-T009 cavity
Seal kit:
  • SK-G027-X X=seal option
Ported test body:
  • HF P/N: 71611X0

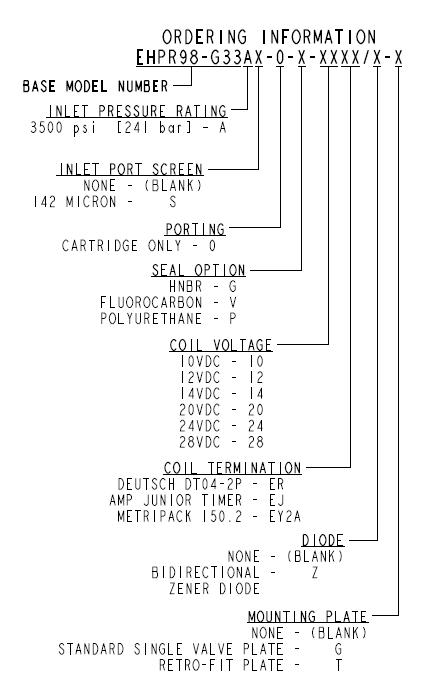

EHPR98-G33A_Order(2022-02-24)

Model Options

EHPR98-G33AG-H-J-KL-U
G Screen
CODE
DESCRIPTION
BLANK
NONE
S
100 Mesh Screen
H Line Body
CODE
DESCRIPTION
0
No Body
J Seal
CODE
DESCRIPTION
G
HNBR (Hydrogenated Nitrile Butadiene Rubber)
V
Fluorocarbon
P
Polyurethane
K Coil Voltage
CODE
DESCRIPTION
10
10 VDC
12
12 VDC
14
14 VDC
20
20 VDC
24
24 VDC
28
28 VDC
L Coil Termination
CODE
DESCRIPTION
EJ
E-Coil, AMP Jr.
ER
E-Coil, Deutsch
EY2A
E-Coil, Metri-Pack 150.2
U Mounting Plate
CODE
DESCRIPTION
BLANK
None
G
Standard Single Valve Plate
T
Retro-Fit Plate
