body_42-6w-XXX

42-Size 6-Way Valve Housings

Download PDF of Page Request a Quote
Expand All|Collapse All
Pressure rating:
  • 207 bar (3000 psi) Aluminum
  • 345 bar (5000 psi) Ductile iron
Material:
  • 6061-T6511 Aluminum
  • Dura-bar Ductile iron

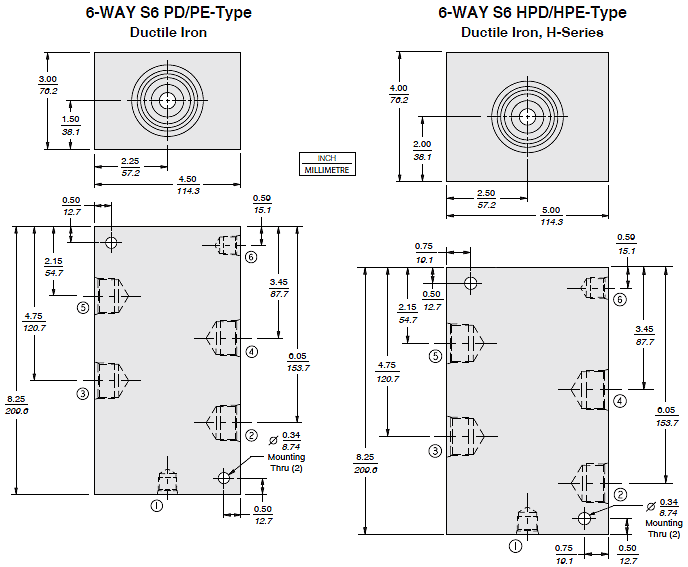

42_Hous-6w(2022-02-24)

CAVITY: HVC42-S6

P/N: 7158070
Code: 20HT
Material: DUCTILE IRON
Port 1
Port 2
Port 3
Port 4
Port 5
Port 6
SAE 6
SAE 20
SAE 20
SAE 20
SAE 20
SAE 6

CAVITY: VC42-S6

P/N: 7150470
Code: 20TD
Material: DUCTILE IRON
Port 1
Port 2
Port 3
Port 4
Port 5
Port 6
SAE 6
SAE 20
SAE 20
SAE 20
SAE 20
SAE 6
Download PDF of Page Request a Quote
