Cartridge Valves - Directional Control Valves - Load Shuttle

LS08-30

LOAD SHUTTLE VALVE

Overview

Description

A load shuttle, screw-in, cartridge style, hydraulic check valve, for use in blocking circuits where a priority of flow/direction is given to a higher pressure circuit over a lower one.

Operation

The LS08-30 will allow flow from the higher pressure port 1 or 3 to port 2.

Features

  • Rapid response to load direction changes.
  • Compact size.
Pressure Ratings
Pressure rating:
  • 241 bar (3500 psi)
Flow Ratings
Flow rating:
  • See performance graph
Maximum internal leakage:
  • 0.25 ml/min (5 drops/min) At 207 bar (3000 psi)
Temperature Ratings
Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °F) With buna N seals
  • -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals
  • -54 to 107 °C (-65 to 225 °F) With polyurethane seals
  • -54 to 107 °C (-65 to 225 °F) With urethane seals
Storage temperature:
  • -40 to 70 °C (-40 to 160 °F)
Ambient temperature:
  • -40 to 90 °C (-40 to 194 °F)
Other Ratings
Corrosion protection:
  • 960 hr salt spray per ASTM b117 (gls08-30)
Fluids:
  • Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 20/18/14 per ISO 4406
Unit weight:
  • 0.06 kg (0.14 lb)
Internal wetted surface area:
  • 70 cm² (10.8 in²)
LS08-30_Perf_Chrt(2022-02-24)

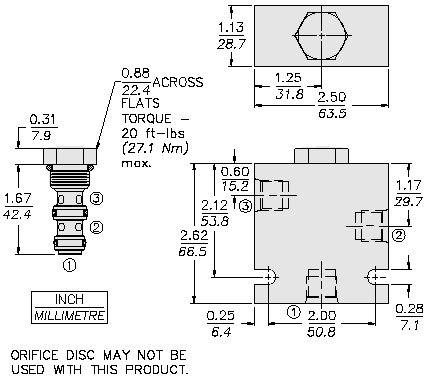

LS08-30_Dim_Dwg(2022-02-24)
Cavity:
Cartridge installation torque:
  • 25.8 to 28.5 N-m (19 to 21 ft-lb)
Maximum allowable torque:
  • 54.2 N-m (40 ft-lb)
Orientation restriction:
  • None
Seal kit:
  • SK08-3N-MM Buna N
  • SK08-3V-MM Fluorocarbon
  • SK08-3P-MM Polyurethane
  • SK08-3U-OO Urethane
LS08-30_Order(2022-02-24)

Model Options

LS08-30-H-J
H Line Body
CODE
DESCRIPTION
0
No Body
4T
Aluminum SAE 4
6T
Aluminum SAE 6
6TD
Ductile Iron SAE 6
8TD
Ductile Iron SAE 8
3B
Aluminum BSPP 3/8" (3)
3BD
Ductile Iron BSPP 3/8" (3)
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
