TS10-27

Pressure releiving proportional cartridge valve

TS10-27_sym_2026-07-01
STP Files Download PDF of Page Request a Quote
Expand All|Collapse All

Description

TS10-27X is a pilot operated spool type, proportional pressure relieving valve. The regulated pressure is inversely proportional to the input electrical current.

Operation

The TS10-27X blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to open the valve by overcoming the preset induced spring force. Applying current to the coil decreases the induced spring force, thereby reducing the valve setting.

Hysteresis:
  • Note: 200 Hz PWM
  • 3.2% A
  • 3.0% B
  • 4.8% C
Pressure Ratings
Pressure rating:
  • Note: At Port 1
  • 4000 psi [275.8 bar]
Proof pressure:
  • 5000 psi [344.7 bar] Port 1
  • 3000 psi [206.8 bar] Port 2
Burst pressure:
  • Note: At All ports
  • 11.800 psi [814 bar]
Pressure rise:
  • 21 psi/gpm [0.38 bar/lpm] A
  • 20 psi/gpm [0.36 bar/lpm] B
  • 25 psi/gpm[0.46 bar/lpm] C
Regulated pressure range:
  • Note: from zero to maximum control current
  • 6.9 to 206.8 bar (100 to 3000 psi) A
  • 6.9 to 138 bar (100 to 2000 psi) B
  • 6.9 to 69 bar (100 to 1000 psi) C
Flow Ratings
Flow rating:
  • Note: ΔP=300-350 psi [20.7-24.1 bar] (cartridge only) port 1 to port 2 (coil energized)
  • 20 gpm [75.7 lpm]
Maximum pilot flow:
  • 0.76 lpm (0.2 gpm)
Temperature Ratings
Operating fluid temperature:
  • 40 °f to 212 °f [-40 °c to 100 °c] Buna N
  • 15 °f to 400 °f [-26 °c to 204 °c] Fluorocarbon
  • 65 °f to 225 °f [-54 °c to 107C] Polyurethane
Storage temperature:
  • -40 °f to 160 °f [-40 °c to 70 °c]
Ambient temperature:
  • -40 °f to 160 °f [-40 °c to 70 °c]
Fluids:
  • Mineral based or synthetic with lubricating properties
Fluid viscosity range:
  • 7.4-420 cSt
Maximum operating contamination level:
  • 18/16/13 per ISO 4406
Corrosion protection:
  • 960 Hr salt spray per ASTM B117
Unit weight:
  • 0.40 lb [0.18 kg]
Internal wetted surface area:
  • 22.9 in² [147.7 cm²]
Coil
Coil resistance at 68°F [20°C]
Valve inductance
Maximum control current
D-Coil 12 VDC
6.7 ohms ±5%
134 mH
1.15 A
D-Coil 24 VDC
25 ohms ±5%
500 mH
0.57 A
E-Coil 12 VDC
7.32 ohms ±5%
139 mH
1.20 A
E-Coil 24 VDC
29.4 ohms ±5%
560 mH
0.60 A
Dither PWM frequency:
  • 200 Hz

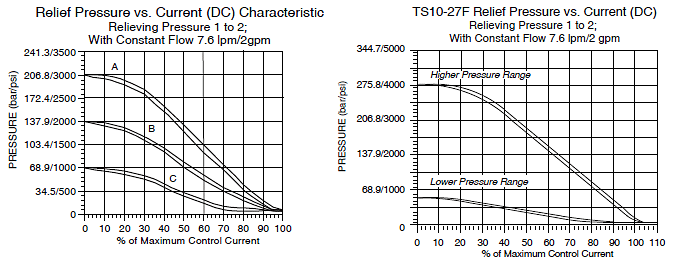

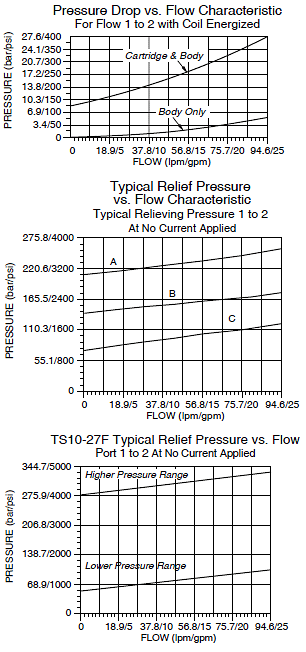

TS10-27_perf_2026-07-01 TS10-27_perf_2_2026-07-01 TS10-27_perf_3_2026-07-01 TS10-27_perf_4_2026-07-01

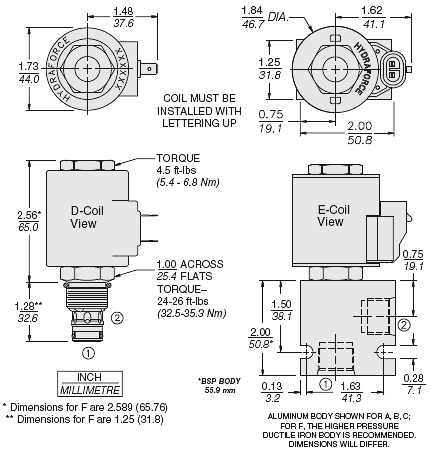

TS10-27_dim_2026-07-01
Cavity:
  • VC10-2
Cartridge installation torque:
  • 24-26 ft-lb [32.5-35.3 N-m]
Coil nut torque:
  • 4-5 ft-lb [5.4-6.8 N-m]
Orientation restriction:
  • None
Seal kit:
  • Note: X = seal option
  • SK10-2X-B
Housings:
Coils:

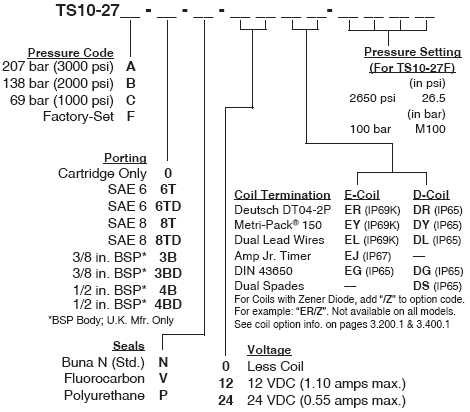

TS10-27_order_2026-07-01

Model Options

TS10-27D-H-J-L
D Regulating Pressure Range
CODE
DESCRIPTION
A
206.8 to 6.9 bar (3000 to 100 psi) Pressure Range
B
137.9 to 6.9 bar (2000 to 100 psi) Pressure Range
C
68.9 to 6.9 bar (1000 to 100 psi) Pressure Range
E
Adjustable Crack Pressure at Zero Current
F
275.8 to 27.6 bar (4000 to 400 psi) Crack Pressure at Zero Current
H Line Body
CODE
DESCRIPTION
0
No Body
6T
Aluminum SAE 6
8T
Aluminum SAE 8
6TD
Ductile Iron SAE 6
8TD
Ductile Iron SAE 8
2B
Aluminum BSPP 1/4" (2)
3B
Aluminum BSPP 3/8" (3)
4B
Aluminum BSPP 1/2" (4)
4BD
Ductile Iron BSPP 1/2" (4)
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
L Coil
CODE
DESCRIPTION
0
No Coil
10DG
10 VDC, D-Coil, DIN 43650
10DL
10 VDC, D-Coil, Dual Lead Wires
10DS
10 VDC, D-Coil, Dual Spade
10EL
10 VDC, E-Coil, Dual Lead Wires
10ER
10 VDC, E-Coil, Deutsch
12DG
12 VDC, D-Coil, DIN 43650
12DL
12 VDC, D-Coil, Dual Lead Wires, 18 inches long
12DL/36
12 VDC, D-Coil, Dual Lead Wires, 36 inches long
12DL/W
12 VDC, D-Coil, Dual Lead Wires with Weatherpak
12DR
12 VDC, D-Coil, Deutsch
12DS
12 VDC, D-Coil, Dual Spade
12EG
12 VDC, E-Coil, DIN 43650
12EJ
12 VDC, E-Coil, AMP Jr.
12EL
12 VDC, E-Coil, Dual Lead Wires, 18 inches long
12EL/36
12 VDC, E-Coil, Dual Lead Wires, 36 inches long
12ER
12 VDC, E-Coil, Deutsch
12EY
12 VDC, E-Coil, Metri-Pack 150
20DS
20 VDC, D-Coil, Dual Spade
20ER
20 VDC, E-Coil, Deutsch
24AG
24 VDC, D-Coil, DIN 43650
24AP
24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires
24DG
24 VDC, D-Coil, DIN 43650
24DL
24 VDC, D-Coil, Dual Lead Wires
24DL/W
24 VDC, D-Coil, Dual Lead Wires with Weatherpak
24DP
24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires
24DR
24 VDC, D-Coil, Deutsch
24DS
24 VDC, D-Coil, Dual Spade
24EG
24 VDC, E-Coil, DIN 43650
24EJ
24 VDC, E-Coil, AMP Jr.
24EL
24 VDC, E-Coil, Dual Lead Wires, 18 inches long
24EL/36
24 VDC, E-Coil, Dual Lead Wires, 36 inches long
24ER
24 VDC, E-Coil, Deutsch
24EY
24 VDC, E-Coil, Metri-Pack 150
36DS
36 VDC, D-Coil, Dual Spade
