Description
The handle S/A for use with manual operator to maintain proportional pilot operated hydraulic directional valves.
Operation
The handle S/A can be oriented 360° in 20° increments.
Cartridge Valves - Cartridge Valve Accessories - Manual Operators
4213260
HANDLE S/A FOR PE/HPE-X ASSEMBLY FOR PE/HPEXX-S67XM VALVES
Overview
Properties
Unit weight:
- 0.2 kg (0.43 lb)
Manufacturer:
- Azeta, Italy
Installation Specifications
Screw installation torque:
- 1.1 to 1.4 N-m (10 to 12 in-lb)
Hex nut installation torque:
- 11.3 to 13.6 N-m (100 to 120 in-lb)

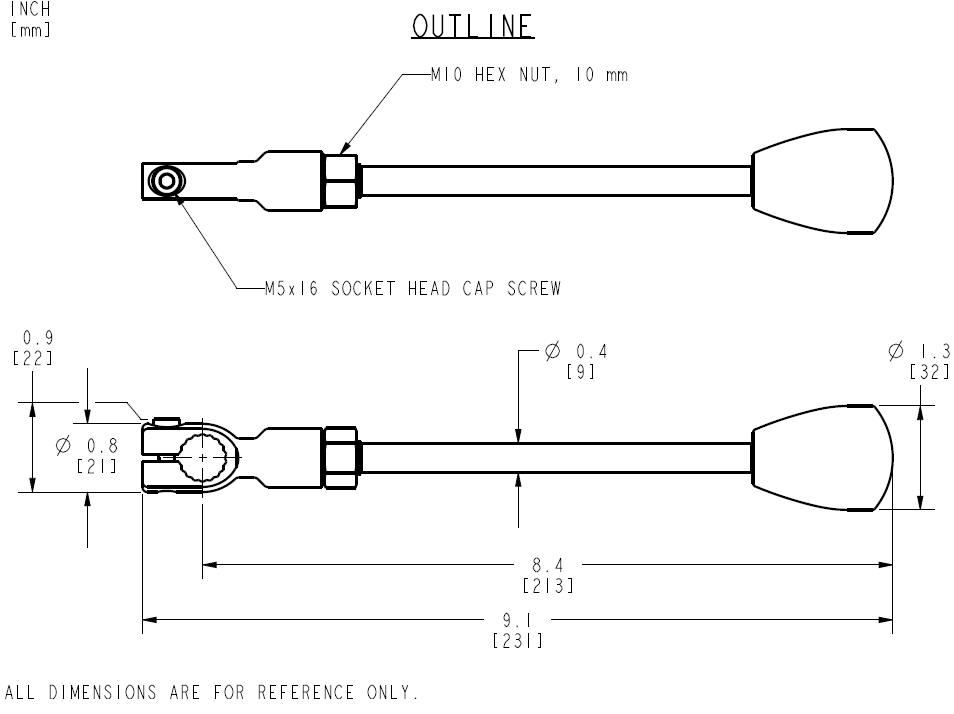

Dimensions
Ordering Information
HF Part No:
- 4213260
