08-Size 2-Way Valve Housings

Expand All|Collapse All

Ratings

Pressure rating:

207 bar (3000 psi) Aluminum
345 bar (5000 psi) Ductile iron

Material:

6061-T6511 Aluminum
Dura-bar Ductile iron

Dimensions

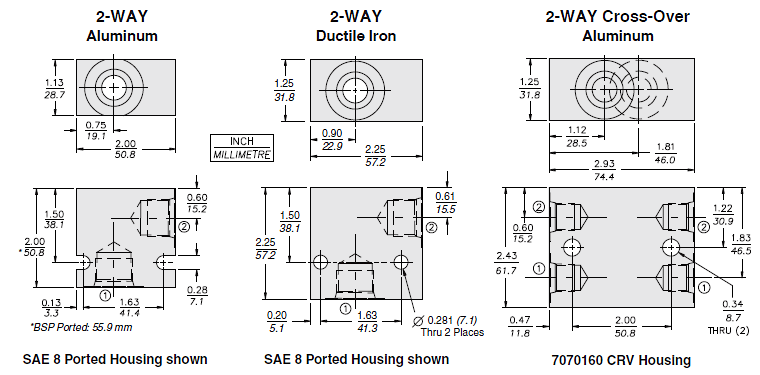

08_Hous-2w(2022-02-24)

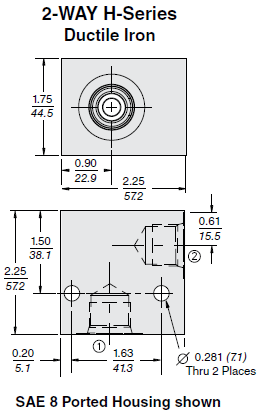

08_Hous-2w-H(2022-02-24)

Part Numbers

CAVITY: VC08-2

P/N: 7024640

Code: 4T

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 4

SAE 4

P/N: 7024660

Code: 6T

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 6

SAE 6

P/N: 7070160

Code: 6T

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 6 (2)

SAE 6 (2)

P/N: 7024680

Code: 8T

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 8

SAE 8

P/N: 7151010

Code: 6TD

Material: DUCTILE IRON

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 6

SAE 6

P/N: 7151020

Code: 8TD

Material: DUCTILE IRON

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 8

SAE 8

P/N: 7028620

Code: 2B

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

1/4" BSP

1/4" BSP

P/N: 7028630

Code: 3B

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

3/8" BSP

3/8" BSP

P/N: 7151050

Code: 3BD

Material: DUCTILE IRON

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

3/8" BSP

3/8" BSP
