Cartridge Valves - Cartridge Valve Accessories - Bodies - VC-T004

body_VC-T004

VC-T004 4-Way Valve Housings

Pressure rating:
  • 207 bar (3000 psi) Aluminum
Material:
  • 6061-T6511 Aluminum

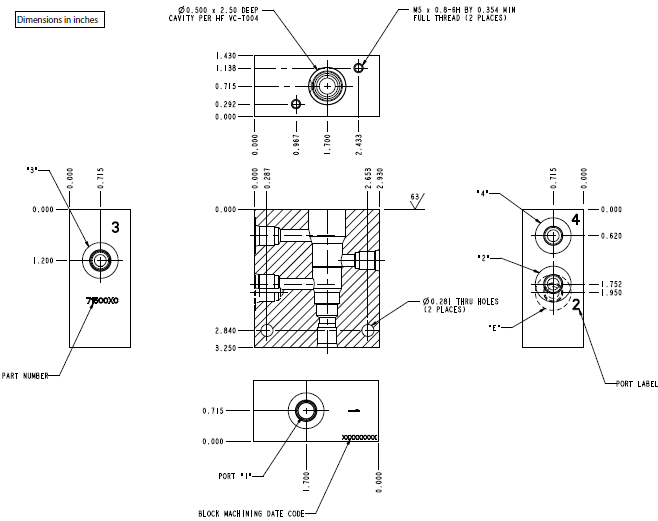

VC-T004_71500X0(2022-02-24)

CAVITY: VC-T004

P/N: 7150030
Code: 8T
Material: ALUMINUM
Port 1
Port 2
Port 3
Port 4
Port 5
Port 6
SAE 8
SAE 8
SAE 8
SAE 8

NOTE: DROP-IN FOR SV98-T40

P/N: 7150080
Code: 2B
Material: ALUMINUM
Port 1
Port 2
Port 3
Port 4
Port 5
Port 6
1/4" BSP
1/4" BSP
1/4" BSP
1/4" BSP

NOTE: DROP-IN
