Cartridge Valves - Solenoid Valves - 2-Position 2-Way - Spool Type - Normally Closed - Free Reverse Flow

SV10-P24

SOLENOID CARTRIDGE VALVE SPOOL, 2 PORT, NORMALLY CLOSED WITH INTEGRAL POSITION SENSOR

Overview

Description

A solenoid-operated, 2 port, normally closed, direct-acting, spool-type, screw in hydraulic cartridge valve, designed to operate as a bidirectional blocking valve.

Operation

When de-energized, the SV10-P24 blocks flow in both directions. when energized, the cartridges spool shifts to open the bidirectional flow path.

Features

  • Integral position sensor indicates when valve is shifted.
  • Continuous-duty rated coil.
  • Hardened seat for long life and low leakage.
  • Optional coil voltages and terminations.
  • Efficient wet-armature construction.
  • Cartridges are voltage interchangeable.
  • Waterproof E-Coils rated up to IP69K.
  • Unitized, molded coil design.
  • 960 hour salt-spray rated solenoid tubes and coils.
Pressure Ratings
Pressure rating:
  • 207 bar (3000 psi)
Proof pressure:
  • 345 bar (5000 psi)
Burst pressure:
  • 827 bar (12000 psi)
Flow Ratings
Flow rating:
  • 37.9 lpm (10 gpm)
Maximum internal leakage:
  • 82 ml/min (5 in³/min) At 207 bar (3000 psi)

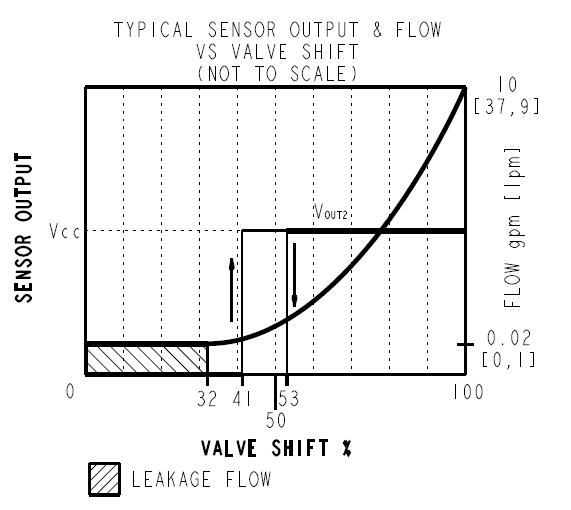

  • 0.1 lpm (0.02 gpm) Typical flow (leakage) in transition at 207 bar (3000 psi). (see "Flow vs % Valve Shift" graph for flow in transition from valve close to valve open).
Other Ratings
Response:
  • 55 ms Pull-in. Response times measured per NFPA/T3.5.30-2008 *Inlet pressure at port 2 is 207 bar (3000 psi) *Valve oriented vertically and purged of air
  • 46 sec Drop-out. Response times measured per NFPA/T3.5.30-2008 *Inlet pressure at port 2 is 207 bar (3000 psi) *Valve oriented vertically and purged of air
Minimum pull-in voltage:
  • 10.2 Vdc 12Vdc coil
Temperature Ratings
Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °F) With buna N seals
  • -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals *See Position sensor operating temperature*
  • -54 to 107 °C (-65 to 225 °F) With urethane seals *See Position sensor operating temperature*
Storage temperature:
  • -40 to 70 °C (-40 to 160 °F)
Ambient temperature:
  • -40 to 70 °C (-40 to 160 °F)
Position sensor operating temperature:
  • -40 to 110 °C (-40 to 230 °F) Sensor element operating temperature limits the operating temperature of the entire assembly
Fluids:
  • Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 20/18/14 per ISO 4406
Electrical Parameters
Supply voltage:
  • 9 to 32 Vdc Vcc
Output voltage with target present:
  • Vcc
Output clamp current:
  • 40 to 65 mA For Vcc up to 32 Vdc
Ratings
ESD:
  • ±8 kV Air discharge
EMI:
  • 30 V/m From 400 MHz to 2 GHz
IP rating:
  • IP67
Vibration:
  • 10 G 10 to 2000 Hz sinosudial
Mechanical shock:
  • 50 G 11 ms, half-wave sinosudial
Properties
Connector:
  • Deutsch DT04-4P Option N3 (dual output)
  • M12 Option M3 (dual output)
Unit weight:
  • 0.49 kg (1.08 lb) Cartridge
Internal wetted surface area:
  • 215 cm² (34.4 in²)
SV10-P24_Perf1(2022-02-24) SV10-P24_Perf2(2022-02-24)

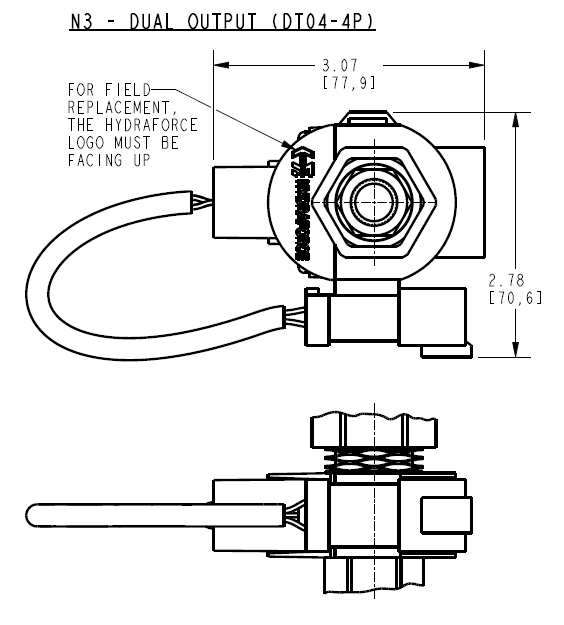

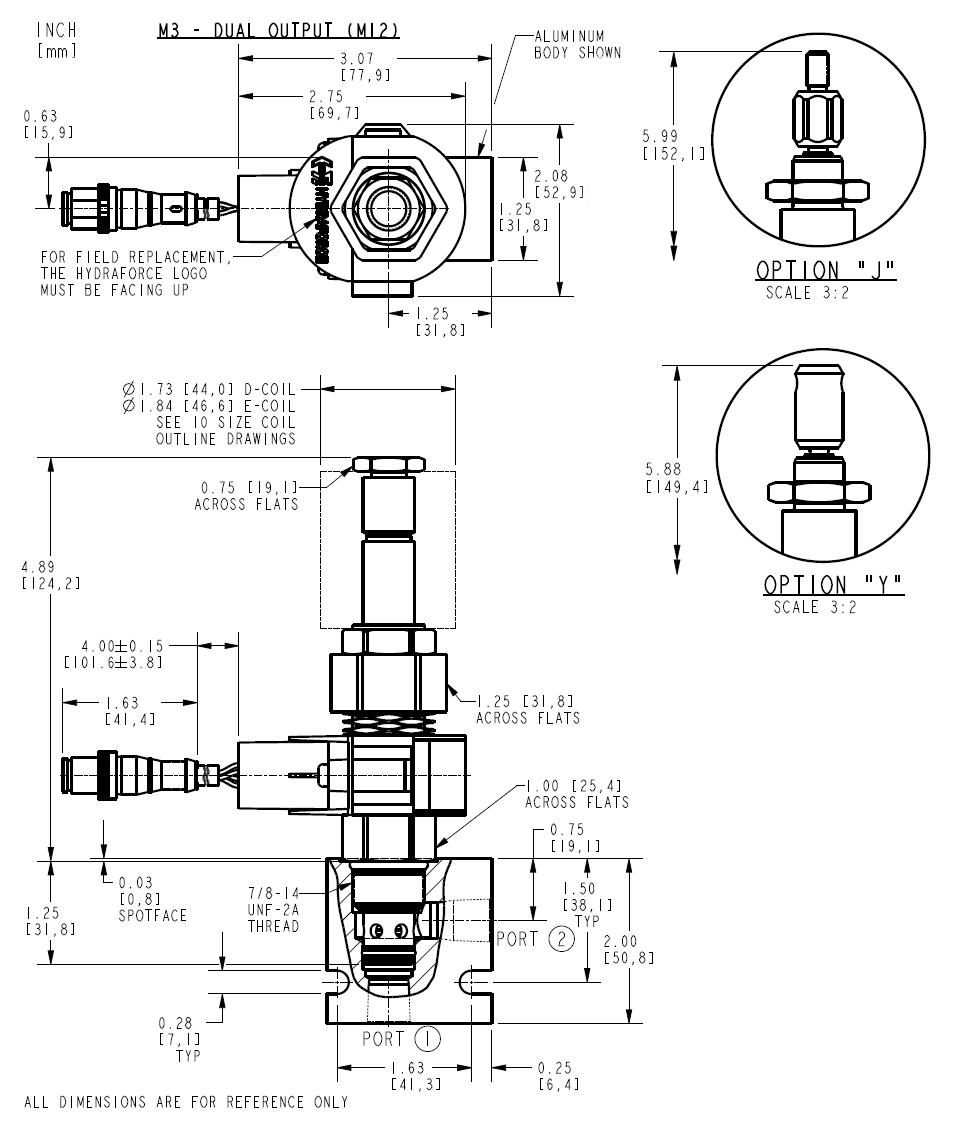

SV10-P24_Dim1(2022-02-24) SV10-P24_Dim2(2022-02-24)
HSV10-P20A_Sym2(2022-02-24) HSV10-P20A_Sym3(2022-02-24)
Cavity:
Cartridge installation torque:
  • 32.5 to 35.3 N-m (24 to 26 ft-lb)
Coil nut torque:
  • 6.8 to 9.5 N-m (5 to 7 ft-lb)
Orientation restriction:
  • None

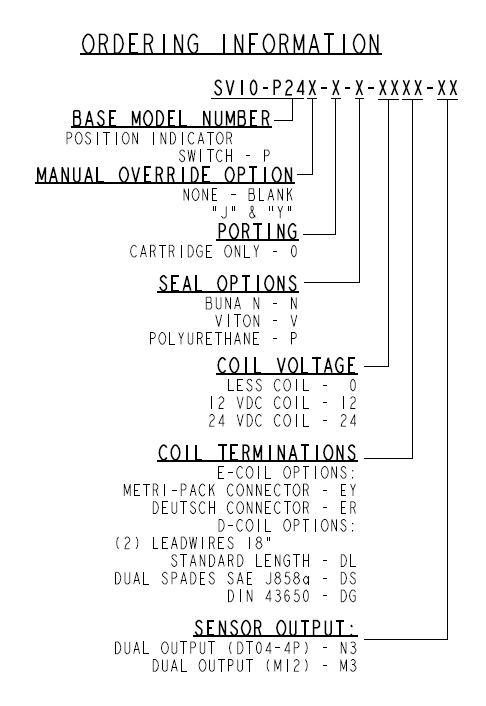

SV10-P24_Order(2022-02-24)

Model Options

SV10-P24EG-H-J-L-M
E Manual Override
CODE
DESCRIPTION
BLANK
NONE
M
Two Position Override, Red Knurled Knob
G Screen
CODE
DESCRIPTION
BLANK
NONE
S
100 Mesh Screen
H Line Body
CODE
DESCRIPTION
0
No Body
6T
Aluminum SAE 6
8T
Aluminum SAE 8
6TD
Ductile Iron SAE 6
8TD
Ductile Iron SAE 8
2B
Aluminum BSPP 1/4" (2)
3B
Aluminum BSPP 3/8" (3)
4B
Aluminum BSPP 1/2" (4)
4BD
Ductile Iron BSPP 1/2" (4)
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
L Coil
CODE
DESCRIPTION
0
No Coil
10DG
10 VDC, D-Coil, DIN 43650
10DL
10 VDC, D-Coil, Dual Lead Wires
10DR/D
10 VDC, D-Coil, Deutsch with Diode
10DS
10 VDC, D-Coil, Dual Spade
10EL
10 VDC, E-Coil, Dual Lead Wires
10ER
10 VDC, E-Coil, Deutsch
10ER/Z
10 VDC, E-Coil, Deutsch with Zener Diode
12DG
12 VDC, D-Coil, DIN 43650
12DL
12 VDC, D-Coil, Dual Lead Wires, 18 inches long
12DL/36
12 VDC, D-Coil, Dual Lead Wires, 36 inches long
12DL/W
12 VDC, D-Coil, Dual Lead Wires with Weatherpak
12DL/W/D
12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode
12DR
12 VDC, D-Coil, Deutsch
12DR/D
12 VDC, D-Coil, Deutsch with Diode
12DR/Z
12 VDC, D-Coil, Deutsch with Zener Diode
12DS
12 VDC, D-Coil, Dual Spade
12EG
12 VDC, E-Coil, DIN 43650
12EJ
12 VDC, E-Coil, AMP Jr.
12EL
12 VDC, E-Coil, Dual Lead Wires, 18 inches long
12EL/36
12 VDC, E-Coil, Dual Lead Wires, 36 inches long
12EL/W/Z
12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode
12EL/Z
12 VDC, E-Coil, Dual Lead Wires with Zener Diode
12ER
12 VDC, E-Coil, Deutsch
12ER/Z
12 VDC, E-Coil, Deutsch with Zener Diode
12EY
12 VDC, E-Coil, Metri-Pack 150
12EY/Z
12 VDC, E-Coil, Metri-Pack 150 with Zener Diode
20DR/D
20 VDC, D-Coil, Deutsch with Diode
20DS
20 VDC, D-Coil, Dual Spade
20ER
20 VDC, E-Coil, Deutsch
24AG
24 VDC, D-Coil, DIN 43650
24AP
24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires
24DG
24 VDC, D-Coil, DIN 43650
24DL
24 VDC, D-Coil, Dual Lead Wires
24DL/W
24 VDC, D-Coil, Dual Lead Wires with Weatherpak
24DL/W/D
24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode
24DP
24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires
24DR
24 VDC, D-Coil, Deutsch
24DR/D
24 VDC, D-Coil, Deutsch with Diode
24DS
24 VDC, D-Coil, Dual Spade
24EG
24 VDC, E-Coil, DIN 43650
24EJ
24 VDC, E-Coil, AMP Jr.
24EL
24 VDC, E-Coil, Dual Lead Wires, 18 inches long
24EL/36
24 VDC, E-Coil, Dual Lead Wires, 36 inches long
24EL/W/Z
24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode
24ER
24 VDC, E-Coil, Deutsch
24ER/Z
24 VDC, E-Coil, Deutsch with Zener Diode
24EY
24 VDC, E-Coil, Metri-Pack 150
24EY/Z
24 VDC, E-Coil, Metri-Pack 150 with Zener Diode
36DS
36 VDC, D-Coil, Dual Spade
115AG
115 VAC, D-Coil, DIN 43650
115AP
115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires
230AG
230 VAC, D-Coil, DIN 43650
230AP
230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires
M Position Sensor Termination
CODE
DESCRIPTION
BLANK
No Position Sensor
M3
Neutral Sense, M12-4P, Dual Output NC/NO
N3
Neutral Sense, DT04-4P, Dual Output NC/NO
