EPFR16-S35

PRESSURE COMPENSATING ELEMENT WITH INTERNAL ORIFICE

Overview

Description

EPFR16-S35 is a screw-in, cartridge style, bypass type pressure compensating element intended for use with remote fixed or variable orifice to provide a constant flow regardless of load pressure changes.

Operation

It is spring biased spool type valve provided with a small internal orifice between ports 2 and 3 so that the valve would bypass all flow to tank at bias spring pressure value plus pressure rise at no load flow demand. The orifice is pressure compensated to restrict flow loss through it at load flow demand.

Features

  • Multiple function in a single cavity.
  • Low bleed flow throughout the operating pressure range.
  • Range of bias spring options; tall adaptor required for higher pressures. An extra tall adaptor is required for the 240 psi bias spring option.
  • High system efficiency.
  • Industry-common cavity.
Pressure Ratings
Pressure rating:
  • 241 bar (3500 psi)
Flow Ratings
Flow rating:
  • See performance graph
Maximum flow loss:
  • 0.6 lpm (0.15 gpm) Between ports 3 and 2 at 241 bar (3500 psi)
Temperature Ratings
Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °F) With buna N seals
  • -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals
  • -54 to 107 °C (-65 to 225 °F) With polyurethane seals
Storage temperature:
  • -40 to 70 °C (-40 to 160 °F)
Ambient temperature:
  • -40 to 90 °C (-40 to 194 °F)
Fluids:
  • Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 20/18/14 per ISO 4406
Unit weight:
  • 0.29 kg (0.64 lb) EPFR16-S35
  • 0.42 kg (0.92 lb) EPFR16-S35T
  • 0.72 kg (1.59 lb) EPFR16-S35T-X-X-240
  • 0.57 kg (1.26 lb) EPFR16-S35TM
  • 0.87 kg (1.59 lb) EPFR16-S35TM-X-X-240
  • 0.62 kg (1.36 lb) EPFR16-S35TMC
  • 0.91 kg (2.01 lb) EPFR16-S35TMC-X-X-240
Internal wetted surface area:
  • 223 cm² (34.5 in²) EPFR16-S35
  • 295 cm² (45.7 in²) EPFR16-S35T
  • 375 cm² (58.2 in²) EPFR-S35T-X-X-240
  • 296 cm² (45.9 in²) EPFR16-S35TM
  • 372 cm² (57.7 in²) EPFR-S35TM-X-X-240
  • 296 cm² (45.9 in²) EPFR16-S35TMC
  • 372 cm² (57.7 in²) EPFR-S35TMC-X-X-240

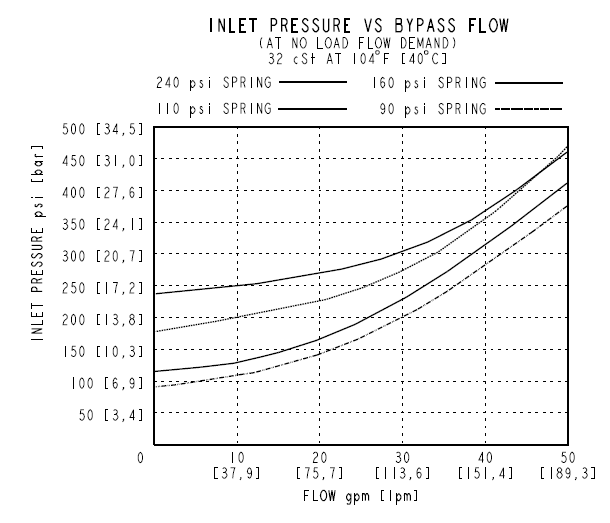

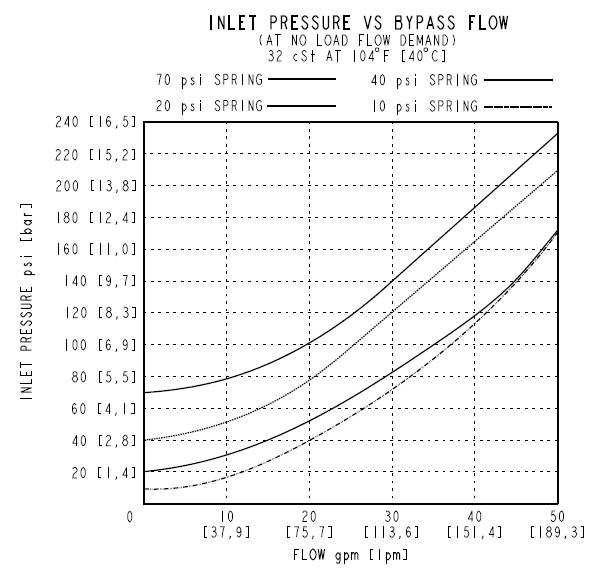

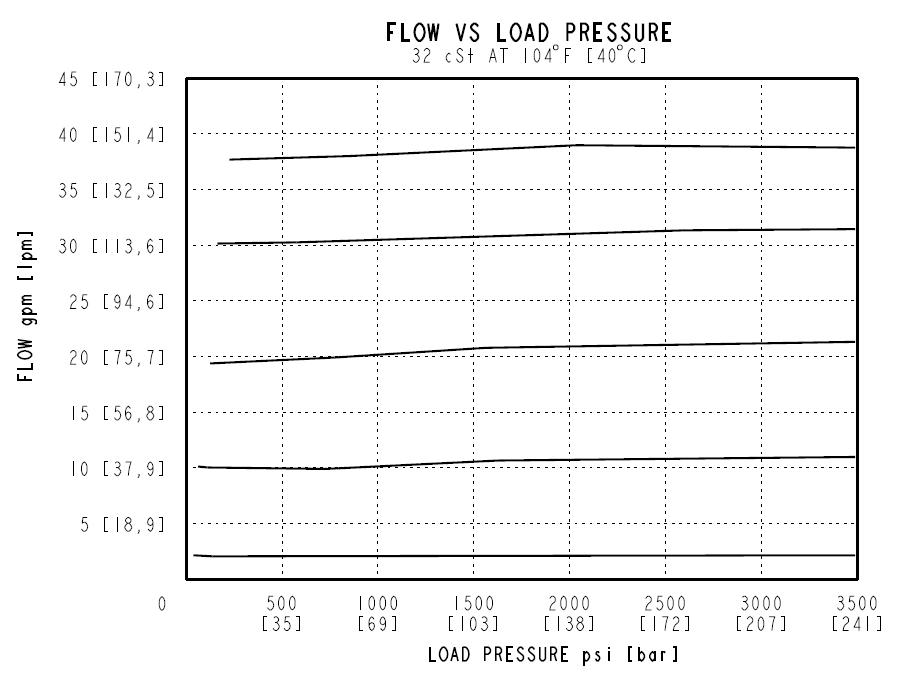

EPFR16-S35_Perf1(2022-02-24) EPFR16-S35_Perf2(2022-02-24) EPFR16-S35_Perf3(2022-02-24)

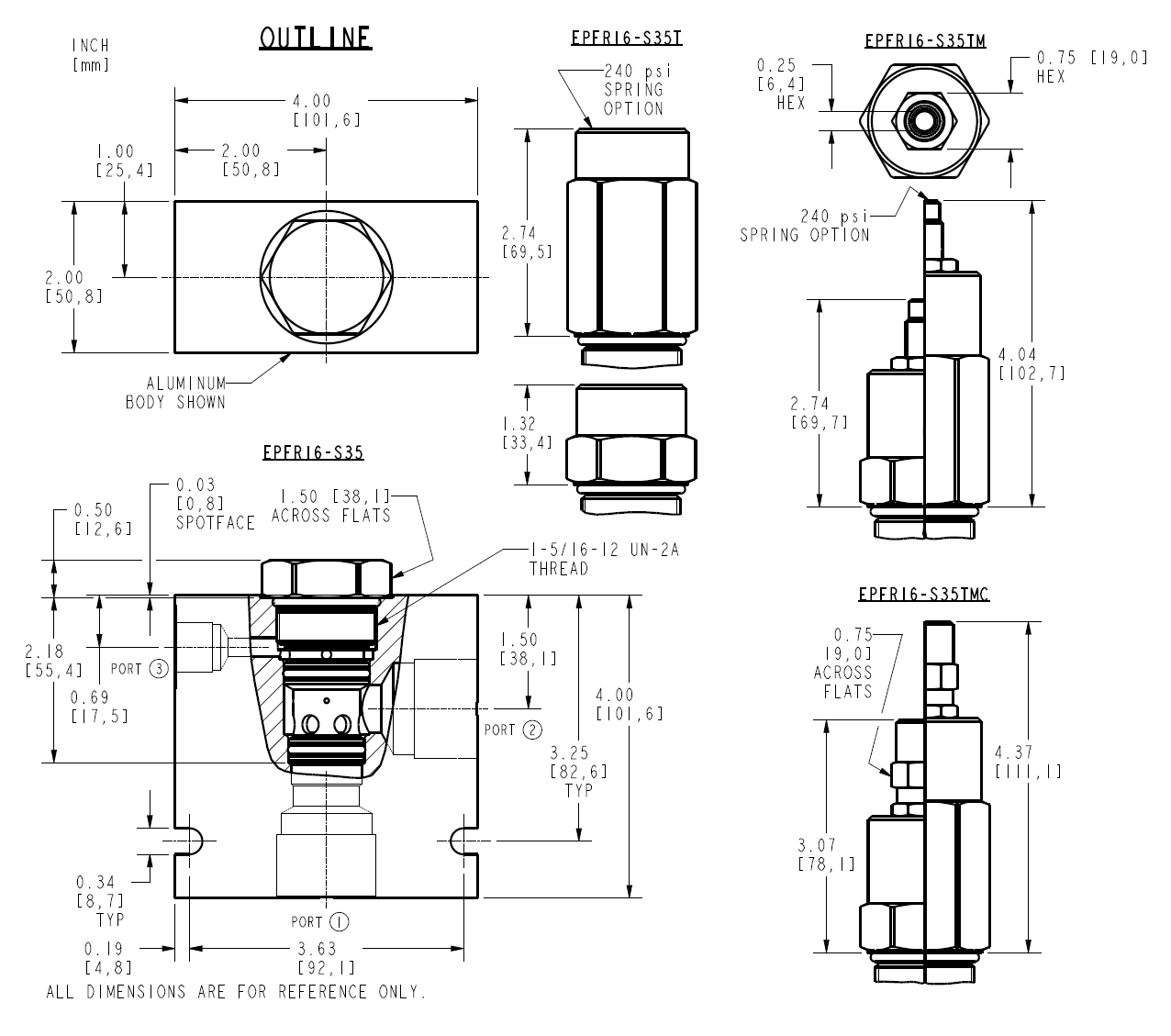

EPFR16-S35_Dim(2022-02-24)
Cavity:
Cartridge installation torque:
  • 62.4 to 73.2 N-m (46 to 54 ft-lb)
Maximum allowable torque:
  • 136 N-m (100 ft-lb)
Orientation restriction:
  • None
Seal kit:
  • SK16-S3X-MM X = seal option

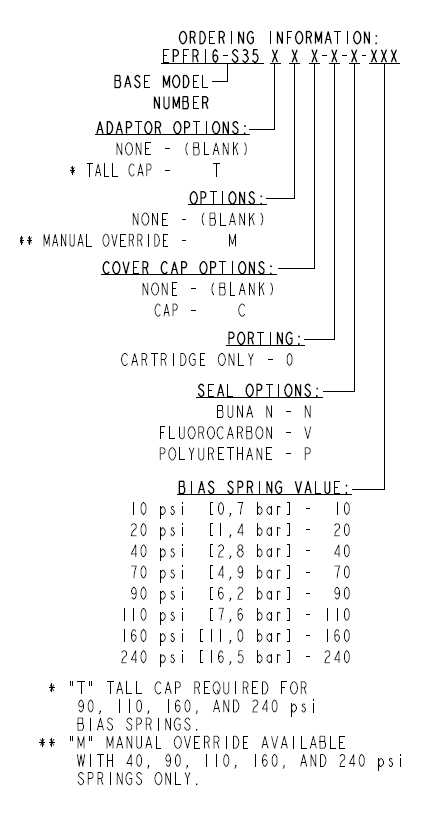

EPFR16-S35_Order(2022-02-24)

Model Options

EPFR16-S35CF-H-J-R
C Tall Cap
CODE
DESCRIPTION
BLANK
Standard Cap
T
Tall Cap
F Stroke Limiter
CODE
DESCRIPTION
BLANK
Standard
M
Stroke Limiter
MC
Stroke Limiter with Cover Cap
H Line Body
CODE
DESCRIPTION
0
No Body
16T
Aluminum SAE 16
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
R Spring
CODE
DESCRIPTION
10
10 psi Bias Spring
20
20 psi Bias Spring
40
40 psi Bias Spring
70
70 psi Bias Spring
90
90 psi Bias Spring
110
110 psi Bias Spring
160
160 psi Bias Spring
240
240 psi Bias Spring
