Cartridge Valves - Directional Control Valves - 4-ways

VDSP-20B

RE18320-89-01(2023-11-07)
Description

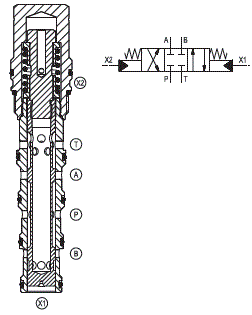

In neutral position, all ports A, B, P, and T are blocked. When remote pilot signal at port X1 rises to overcome the spring bias against the spool, the valve shifts to allow flow between P and A, and between T and B. When remote pilot signal at port X2 rises to overcome the spring bias against the spool, the valve shifts to allow flow between P and B, and between A and T.

1) Measured at 300 bar (4500 psi) from A-B to P-T-X1-X2

2) Only external seals for 10 valves

General:
Max. operating pressure:
  • 350 bar (5000 psi)
Max. pressure admitted ports X1 and X2:
  • 210 bar (3000 psi)
Max. flow:
  • 200 l/min. (53 gpm)
Max. internal leakage 1):
  • 10 cm³/min. (0.6 cu.in./min.)
Pilot displacement volume:
  • 3.5 cm³ (0.2 cu.in)
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 125 - 155 Nm (92 - 114 ft-lbs)
Weight:
  • 1.4 kg (3.1 lbs)
Special cavity:
  • CA-20B-6C
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit 2):
  • Code: RG20B6010530100
  • material no: R930001706
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14
Installation position:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50
RE18320-89-02(2023-11-07)

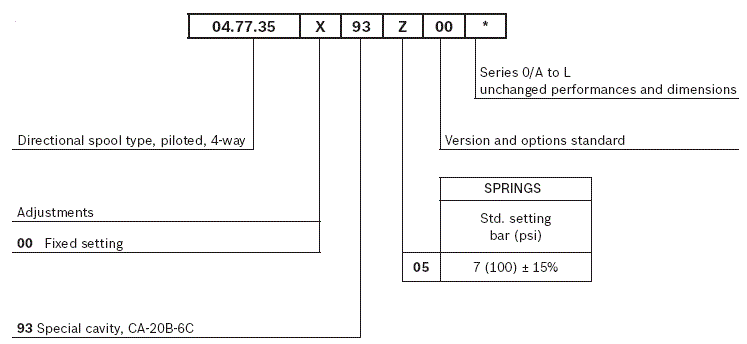

RE18320-89-order(2023-11-07)

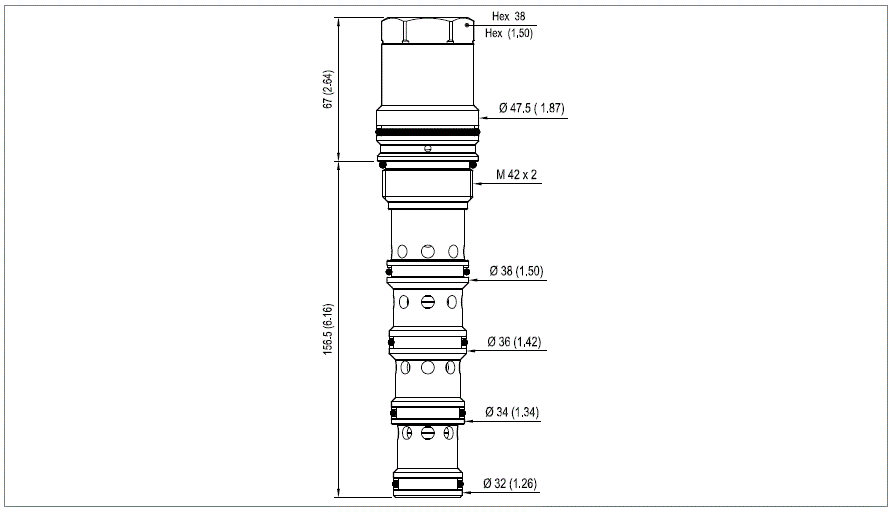

RE18320-89-dim(2023-11-07)
