Cartridge Valves - Directional Control Valves - 2-ways

VLDT-10A

RE18321-76-01(2023-11-07)
Description

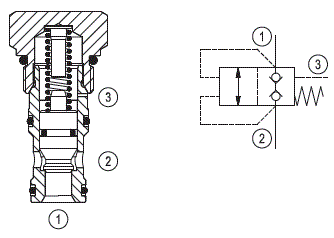

Flow is blocked bi-directionally between 1 and 2, until pressure at either 1 or 2 rises above the combined pressure of the spring bias, plus pressure at 3. The poppet is balanced between pressures at 1 and 2 with a 1:1 area ratio, and held locked by pressure at 3 in a 2:1 ratio versus either 1 or 2.

¹) Only external seals for 10 valves

General:
Max. operating pressure:
  • 350 bar (5000 psi)
Max. flow:
  • 80 l/min. (21 gpm)
Pilot ratio:
  • 2:1
Max. internal leakage:
  • 5 drops/min. at 200 bar (2900 psi) closed
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 41 - 47 Nm (30 - 35 ft-lbs)
Weight:
  • 0.12 kg (0.27 lbs)
Cavity:
  • CA-10A-3C (see data sheet 18325-70)
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit¹):
  • Code: RG10A9010530100
  • material no: R901111368
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 5 to 800 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14
Installation:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50

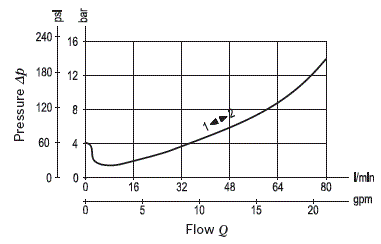

RE18321-76-02(2023-11-07)

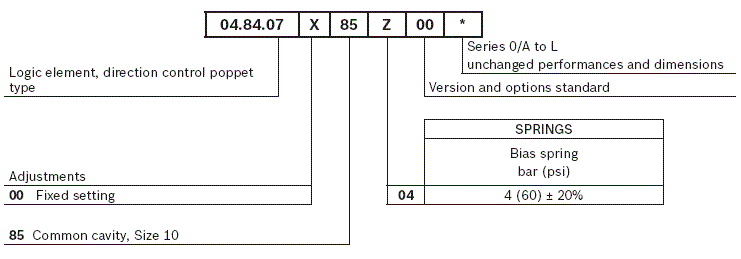

RE18321-76-order(2023-11-07)

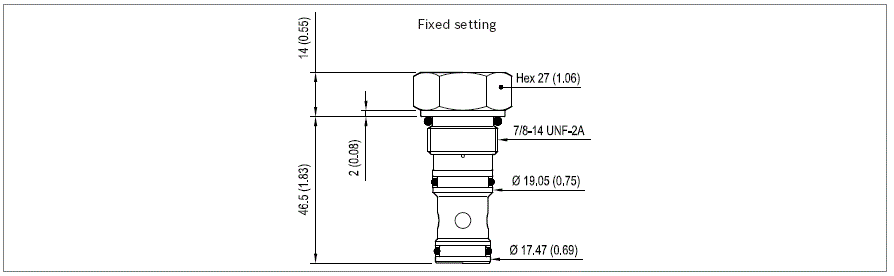

RE18321-76-dim(2023-11-07)
