Cartridge Valves - Directional Control Valves - 2-ways
VMI-8A-2A-09-NC

Technical data
IMPORTANT: When valve is not operated, flow from 1 to 2 is not recommended due to high opening pressure. (Version 05)
General:
Weight:
- 0.28 kg (0.62 lbs)
Installation orientation:
- Optional
Fluid Temperature:
- -30 to 60 (-22 to 140)
Hydraulic:
Max. operating pressure:
Max. flow:
Max. internal leakage:
Fluid temperature range:
Fluids: Mineral-based or synthetics with lubricating properties at
viscosities of 20 to 380 mm²/s (cSt):
Installation torque:
Recommended degree of fluid contamination:
Special cavity:
Lines bodies and standard assemblies:
- Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit – version 05:
- code
- material no.
Seal kit – version 31:
- code
- material no.
Other technical data:
Only for cam-operated valves:
Operating stroke:
Max. overstroke:

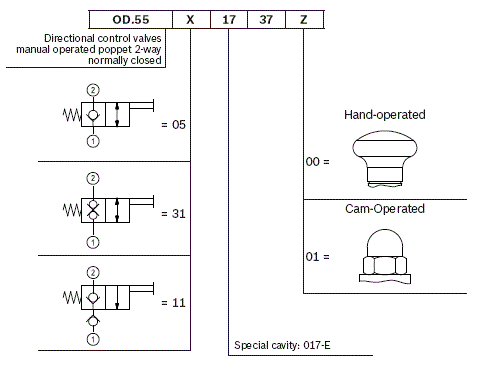

Ordering code

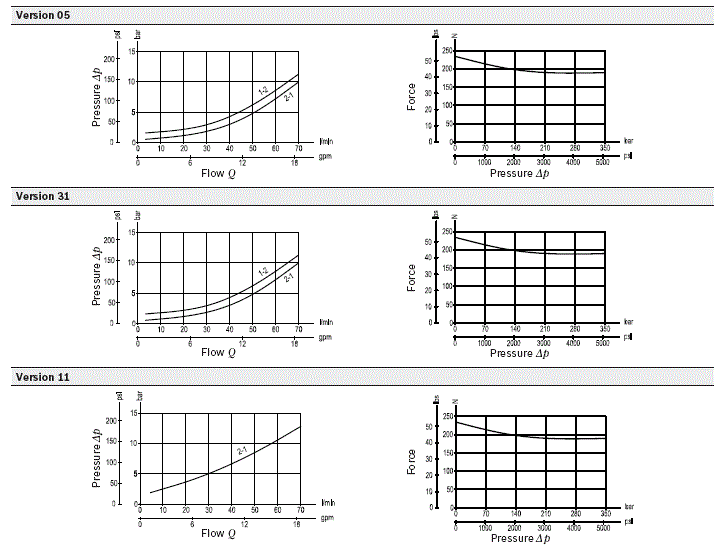

Characteristic curves

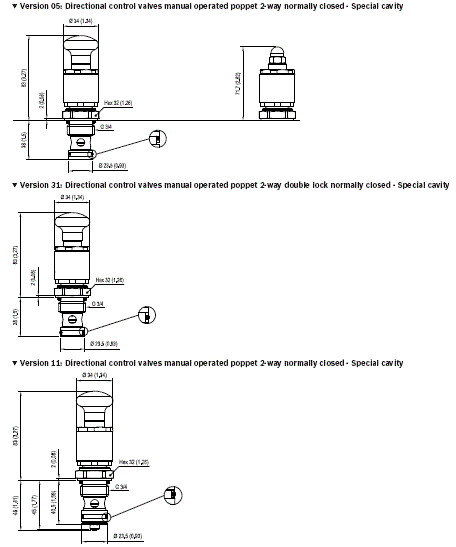

Dimensions
