Proportional valves not compensated flow regulator


Cartridge Valves - Electro-proportional Valves - Flow regulator
VEP-5A-2Q-09-NA

Technical data
General:
Weight:
- 0.32 kg (0.71 lbs)
Installation orientation:
- Optional
Fluid Temperature:
- -30 to 60 (-22 to 140)
Hydraulic:
Max. operating pressure:
Flow range:
- l/min.(gpm)
Max. internal leakage (*):
Fluid temperature range:
Fluids:
Installation torque:
Recommended degree of fluid contamination:
Cavity:
Lines bodies and standard assemblies:
Seal kit:
- code
- material no.
Seal kit coil:
- code
- material no.
Other technical data:
(*) Measured at 210 bar (3000 psi). Oil at 46 cSt.
Electrical:
Type of voltage:
- DC voltage
Coil type:
- S5
Supply voltage:
- 12 DC
Nominal voltage:
- ± 10%
Power consumption:
- 23 W
Duty cycle:
- 100%
Type of protection:
- See data sheet RE 18325-90

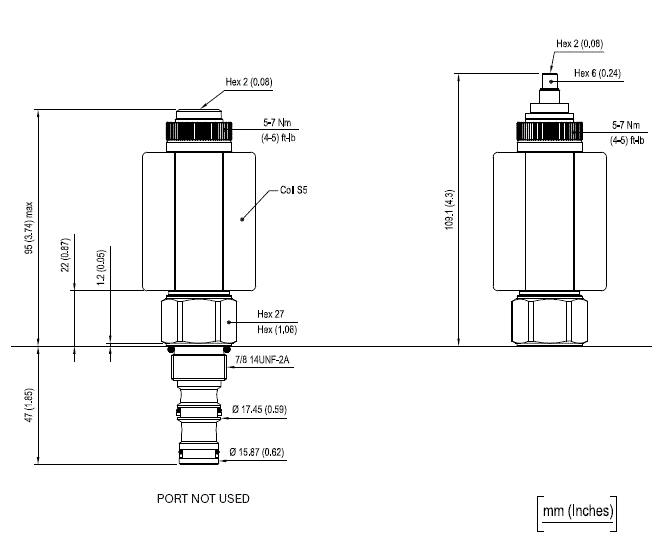

Dimensions

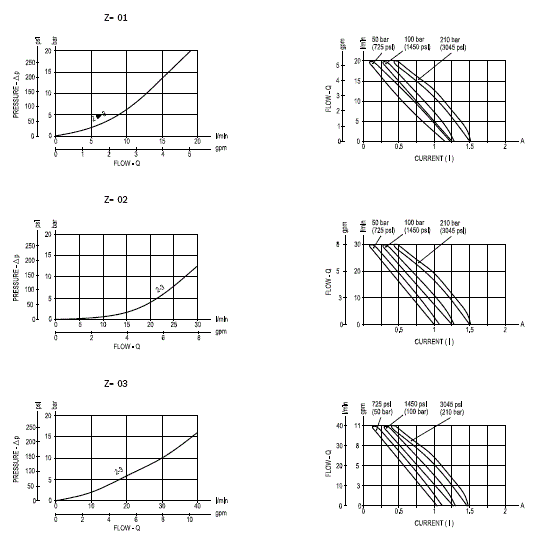

Performance graphs
Note (1): It is recommended to use coil 12 DC.
Note (2): Performance using coil without diode.

PMW Frequency: 120-150 Hz
Hysteresis: < 5%

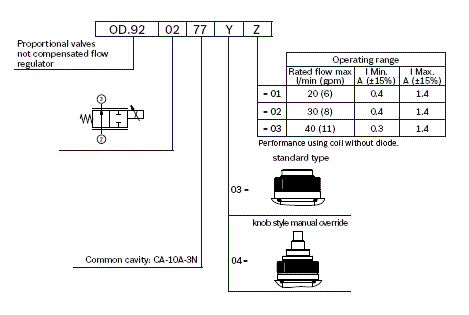

Ordering code
