Description

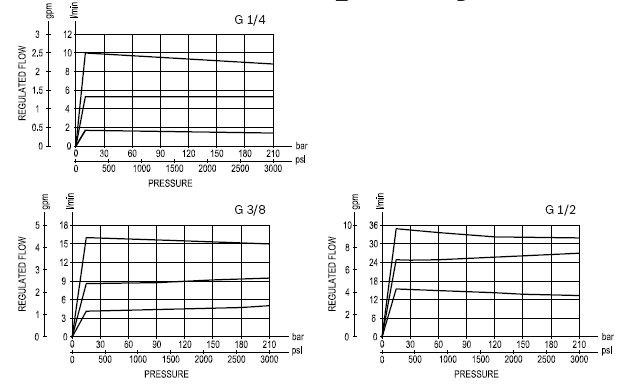

A constant flow rate, regardless of system pressures, is established from 1 to 2 while a minimum pressure differential of 145 psi exists between the two ports. The valve cannot be adjusted for variable flow output. Flow from 2 to 1 is limited by the diameter of the selected control orifice and is not pressure compensated.

General:
Max. operating pressure:
  • 210 bar (3000 psi)
Max. flow:
  • see “Regulated flow range” table l/min. (gpm)
Fluid temperature range:
  • -30 to 100°C (-22 to 212°F)
Weight:
  • see “Dimensions” table kg (lbs)
Special cavity:
  • see “Dimensions”
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) ISO 4406 20/18/15
Installation:
  • No restrictions
Other Technical Data:
  • See data sheet RE 18350-50

* Thread in accordance with ISO 228-1

Note: available also as“Sleeve valve for line mounting”

See data sheets RE 18316-12 and RE 18316-13

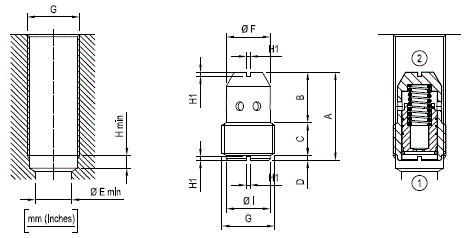

RE18329-75-dim(2023-11-16)
G *
A
B
C
D
E
F
I
H
H1
Weight kg (lbs)
Flow max. l/min. (gpm)
G 1/4
25.5 (1)
13.5 (0.53)
8.5 (0.34)
3 (0.12)
8 (0.32)
10 (0.39)
11 (0.43)
5 (0.2)
1.5 (0.6)
0.011 (0.024)
10 (3)
G 3/8
28 (1.1)
15 (0.59)
10.5 (0.41)
2 (0.08)
11 (0.43)
14 (0.55)
14.5 (0.57)
5 (0.2)
1.5 (0.6)
0.024 (0.053)
16 (4)
G 1/2
35 (1.38)
19.5 (0.77)
13 (0.52)
2 (0.08)
14 (0.55)
17.5 (0.69)
17.5 (0.69)
5 (0.2)
1.5 (0.6)
0.048 (0.106)
40 (11)

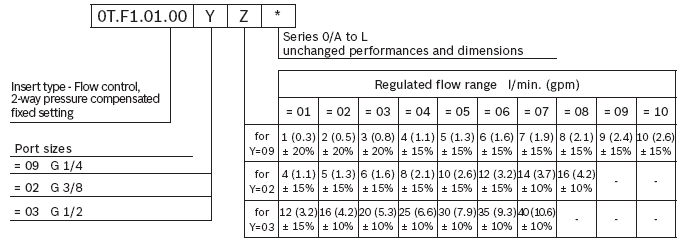

RE18329-75-order(2023-11-16)
