Description
Increasing the orifice value from fully closed to fully open, flow is permitted and regulated bi-directional from 1 to 2 and from 2 to 1. With valve fully closed no leakage permitted between ports 1 and 2.

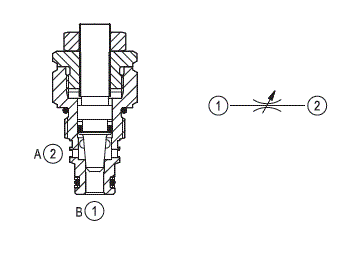

Cartridge Valves - Flow Control Valves - Needle
ST-C-06
Description
Technical data
¹) Only external seals for 10 valves
General:
Max. operating pressure:
- 350 bar (5000 psi)
Rated flow:
- 40 l/min. (11 gpm)
Fluid temperature range:
- -30 to 100 °C (-22 to 212 °F)
Installation torque:
- 39 - 51 Nm (29 - 38 ft-lbs)
Weight:
- 0.09 kg (0.2 lbs)
Cavity:
- CA-08A-2N (see data sheet 18325-70)
Lines bodies and standard assemblies:
- Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit¹):
- Code: RG08A2010530100
- material no: R901101544
Fluids:
- Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
- Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14
Installation:
- No restrictions
Other Technical Data:
- See data sheet 18350-50

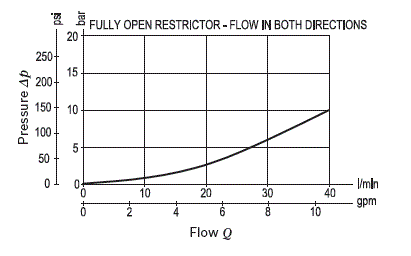

Characteristic curve

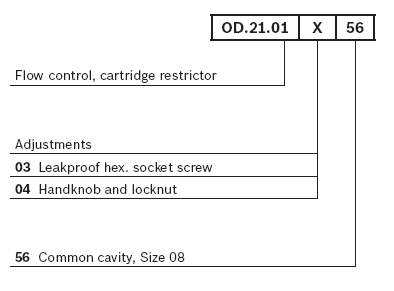

Ordering code

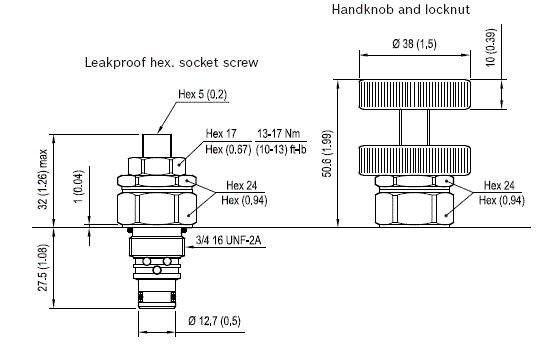

Dimensions
