Cartridge Valves - Flow Control Valves - Needle

ST-C-16

RE18321-29-01(2023-11-07)
Description

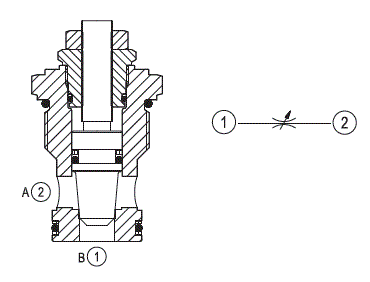

Increasing the orifice value from fully closed to fully open, flow is permitted and regulated bi-directional from 1 to 2 and from 2 to 1. With valve fully closed no leakage permitted between ports 1 and 2.

¹) Only external seals for 10 valves

General:
Max. operating pressure:
  • 350 bar (5000 psi)
Rated flow:
  • 150 l/min. (39 gpm)
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 80 - 100 Nm (59 - 74 ft-lbs)
Weight:
  • 0.31 kg (0.68 lbs)
Cavity:
  • CA-16A-2N (see data sheet 18325-70)
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit¹):
  • Code: RG16A2010530100
  • material no: R930003262
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14
Installation:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50

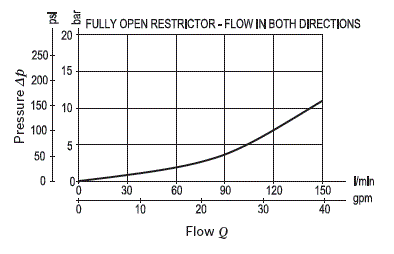

RE18321-29-02(2023-11-07)

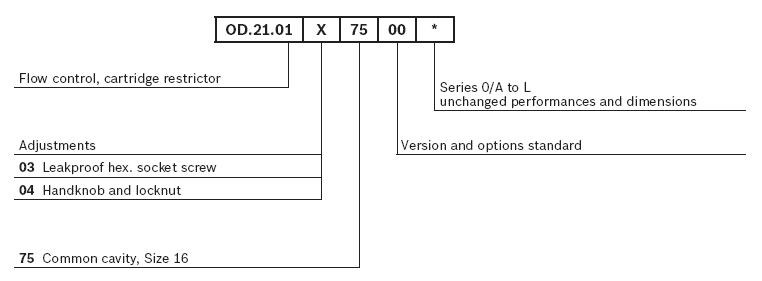

RE18321-29-order(2023-11-07)

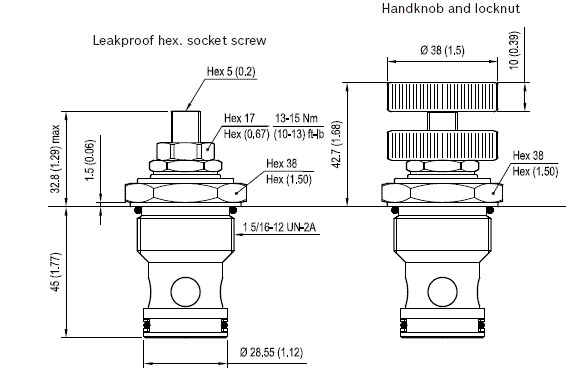

RE18321-29-dim(2023-11-07)
