VBST-12U-RS

RE18320-24-01(2023-11-02)
Description

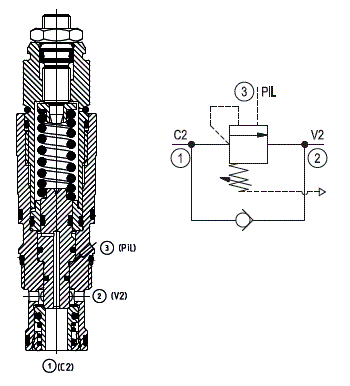

When pressure at 2 rises above the spring bias pressure, the check seat is pushed away from the piston and flow is allowed from 2 to 1. When load pressure at 1 rises above the pressure setting (turn counterclockwise to increase setting - turn clockwise to decrease setting), the direct-acting, relief function is activated and flow is relieved from 1 to 2. With pilot pressure at 3, the pressure setting is reduced in proportion to the stated ratio of the valve, until fully open with free-flow from 1 to 2. The spring chamber is vented to atmosphere allowing operation of all functions independent of back-pressure at 2. Valve design prevents spring going solid and complete unscrewing during adjusting.

¹) At 70% of pressure setting

²) Only external seals for 10 valves

Pressure setting: at least 1.3 times the load induced pressure and maximum 1.5 times catalogue max nominal setting.

General:
Max. operating pressure:
  • 350 bar (5000 psi)
Max. flow:
  • 120 l/min (32 gpm)
Max. internal leakage¹):
  • 15 drops/min.
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)

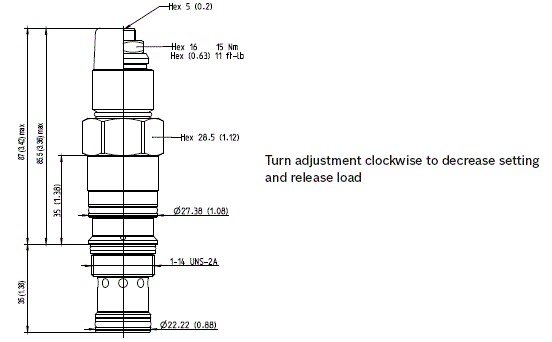

Installation torque:
  • 60 - 70 Nm (45 - 50 ft-lbs)
Weight:
  • 0.4 kg (0.88 lbs)
MTTFD:
  • 150 years see RE 18350-51
Cavity:
  • SUN T-2A
Adjustment:
  • according to ISO 4413 with sealed adjustment screw to prevent oil leakage during adjustment
Salt spray test:
  • 500h according to DIN EN ISO 9227:2017-07

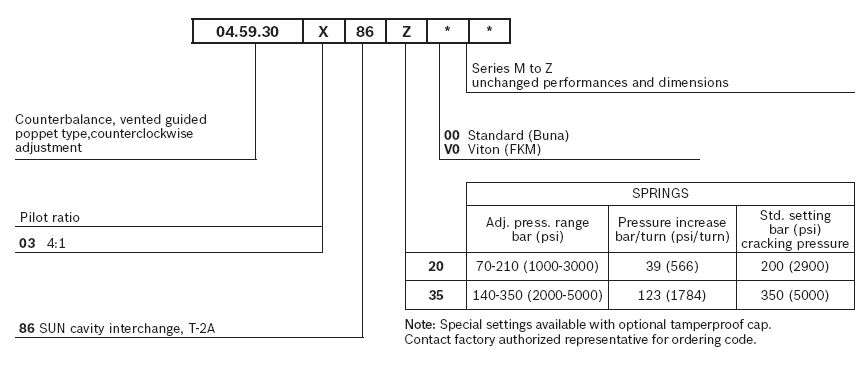

Seal kit²):
  • Code: RG12U9020110100
  • material no: R930005599
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Filtration:
  • Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14
Installation position:
  • No restrictions

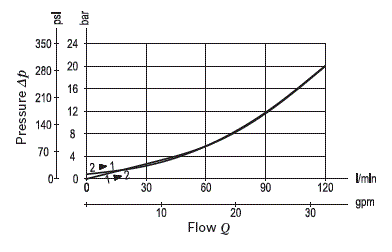

Other Technical Data:
  • See data sheet 18350-50
