Cartridge Valves - Load Holding Valves - Pilot to open check

VSOD-10A

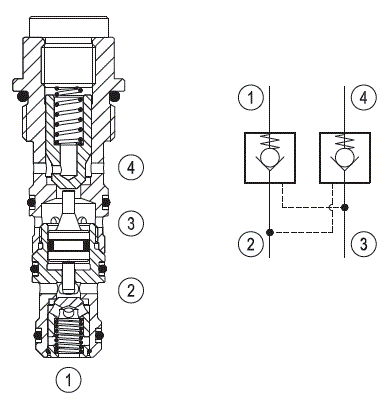

RE18319-38-01(2023-11-01)
Description

When pressure at port 2 or port 3 rises above the spring bias pressure, the poppet is pushed from its seat and flow is allowed from 2 to 1 or 3 to 4. The valve is normally closed (checked) from 1 to 2 and from 4 to 3. When sufficient pilot pressure is present at port 3 or port 2, the pilot piston acts to push the poppet from its seat and flow is allowed from 1 to 2 or from 4 to 3. Precision machining and hardening processes allow virtually leak-free performance in the checked condition.

¹) Only external seals for 10 valves

General:
Max. operating pressure:
  • 350 bar (5000 psi)
Max. flow:
  • 30 l/min. (8 gpm)
Pilot ratio:
  • 3:1
Max. internal leakage:
  • 5 drops/min.
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 41 - 47 Nm (30 - 35 ft-lbs)
Weight:
  • 0.14 kg (0.31 lbs)
Cavity:
  • CA-10A-4N (see data sheet 18325-70)
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit¹):
  • Code: RG10A4010530100
  • material no: R901111373
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 5 to 800 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14
Installation position:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50

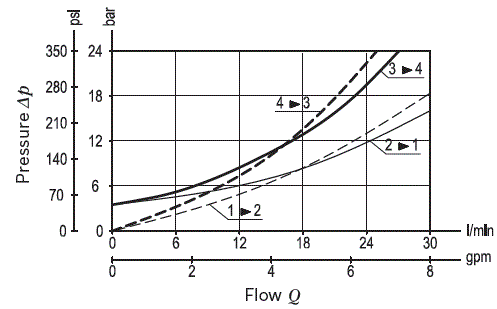

RE18319-38-02(2023-11-01)

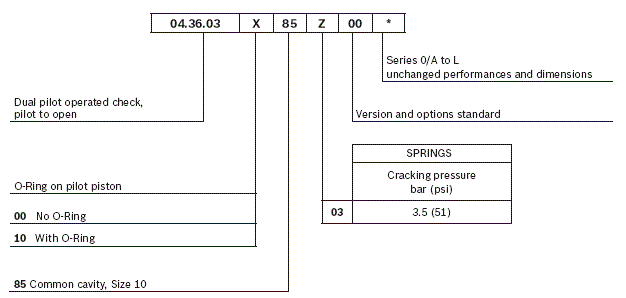

RE18319-38-order(2023-11-01)

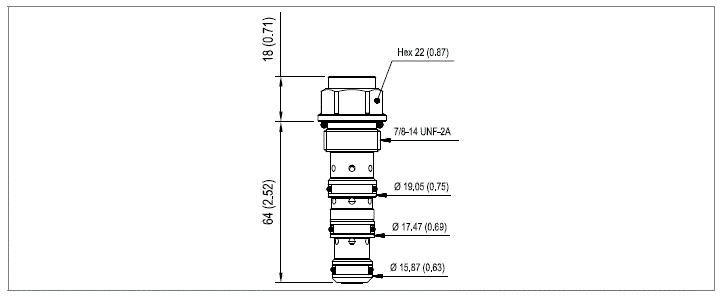

RE18319-38-dim(2023-11-01)
