Cartridge Valves - Pressure Control Valves - Pressure relief

VER-10A

New VER-10A family incorporates a new solenoid concept providing excellent performance and enables cartridges to work in severe environment. With coil not energized, relief function is off and flow is permitted from port 1 to port 2; with coil energized relief function is on.

General:
Weight:
  • 0.2 kg (0.44 lbs)
Installation orientation:
  • Unrestricted
Fluid Temperature:
  • -40 to 100 (-40 to 212)
Fluid Temperature:
  • -30 to 90 (-22 to 194)
Hydraulic:
Max. operating pressure:
Max. admitted pressure port 2:
Max. range:
Max. internal leakage:¹):
Switching time:
Fatigue cycle life:
Fluid temperature range:
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt):
Installation torque:
Recommended degree of fluid contamination:
MTTFd:
Cavity:
Seal kit:
  • code
  • material no.
Seal kit coil:
  • code
  • material no.
Other technical data:
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • D36
Supply voltage:
  • See data sheet 18325-90
Label Needed:
  • See characteristic curve
Power consumption:
  • 20 W
Type of protection:
  • Note: Note: Coils must be ordered separately
  • Note: ¹) Measured at 200 bar (2 900 psi)
  • See data sheet 18325-90

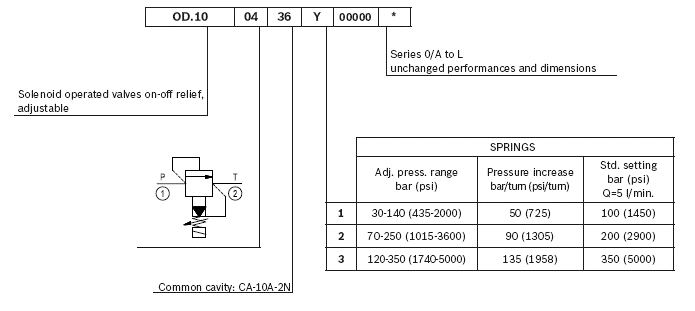

RE18324-15-order(2023-11-10)
RE18324-15-02(2023-11-10)

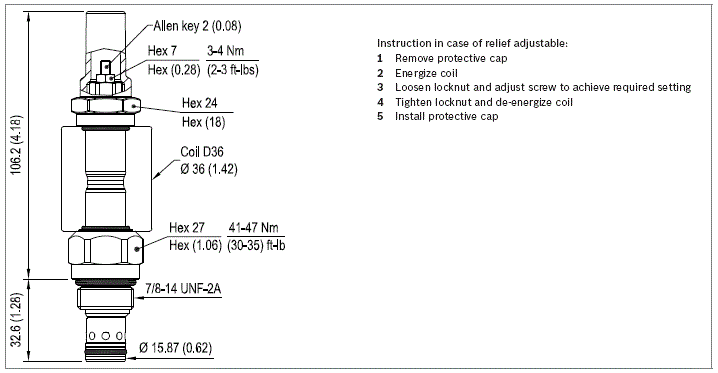

RE18324-15-dim(2023-11-10)

Solenoid operated valves on-off relief, adjustable
