Cartridge Valves - Solenoid Valves - 2-ways

VEI-16-08F-NC_I

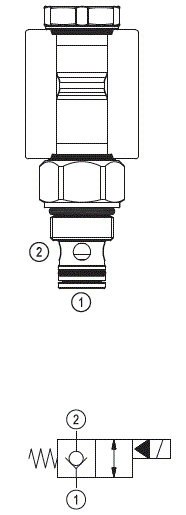

RE18323-52-01(2023-11-07)

New VEI-16 family incorporates a new solenoid concept providing excellent performance and enables cartridges to work in severe environment. Cartridges also incorporates advanced design of hydraulic parts providing excellent hydraulic performance.

Valve function *:

1) after 10 mio cycles valve function guaranteed at nominal voltage.

2) max. internal leakage 70 ml/min. (0.0185 gpm/min).

General:
Weight:
  • 0.18 kg (0.39 lbs)
Installation orientation:
  • Unrestricted
Fluid Temperature:
  • -30 to 90 (-22 to 194)
Hydraulic:
Max. operating pressure:
Flow range:
Fatigue cycle life:
Max. internal leakage:
Switching time:
Fluid temperature range:
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt):
Installation torque:
Recommended degree of fluid contamination:
MTTFD:
Special cavity:
Seal kit for X=05:
  • code
  • material no.
Seal kit coil and standard cap:
  • code
  • material no.
Seal kit coil and protective cap only for Y=D:
  • code
  • material no.
Other technical data:
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • D36
Supply voltage:
  • See data sheet 18325-90
Power consumption:
  • 20 W
Type of protection:
  • Note: Note: Coils must be ordered separately
  • See data sheet 18325-90

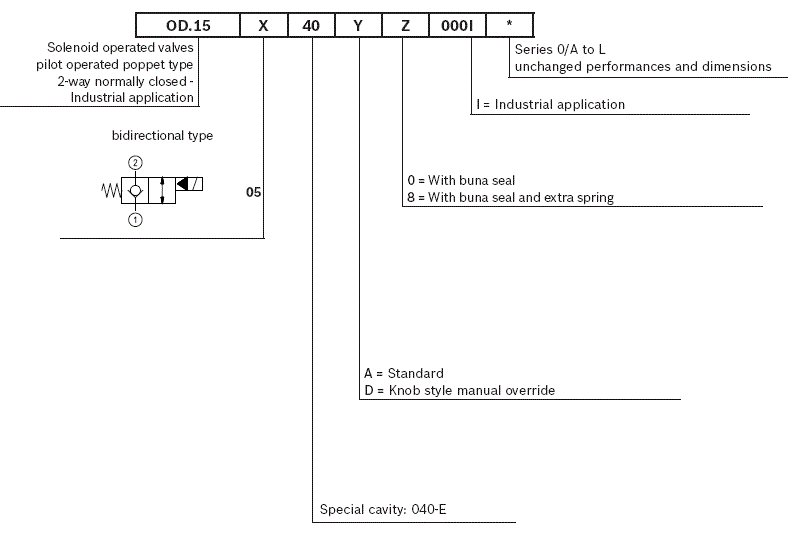

RE18323-52-order(2023-11-07)

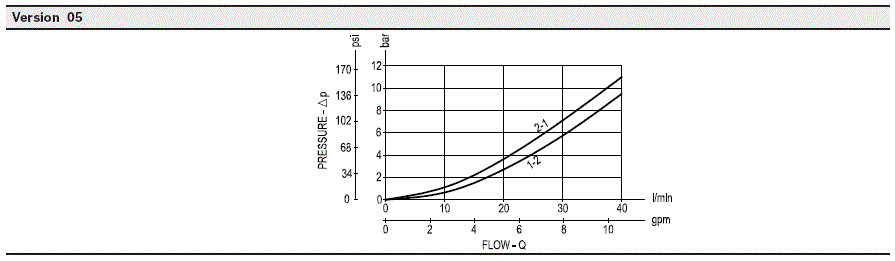

RE18323-52-02(2023-11-07)

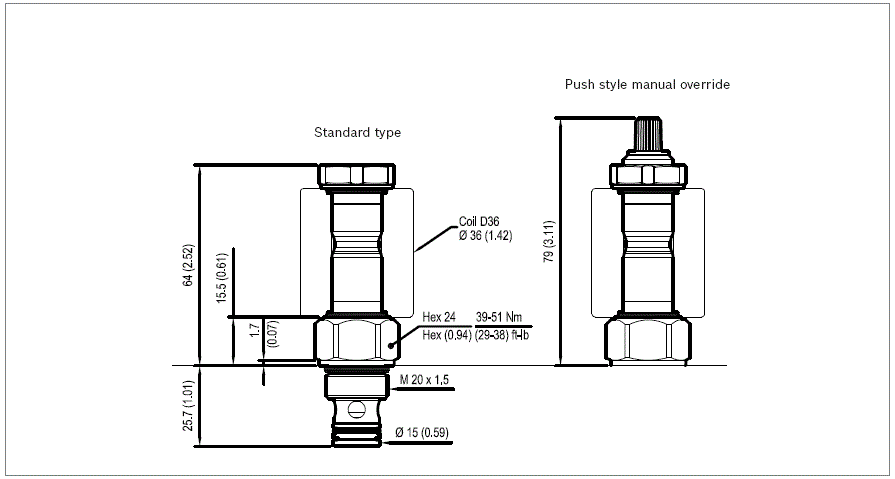

RE18323-52-dim(2023-11-07)

Solenoid operated valves, poppet 2-way normally closed - Industrial application
