Compact Directional Valves - Diverters - 6-ways

VS270F

6 way 2 position valve.

Directional spool valve with direct solenoid control.

Hydraulic / pneumatic pilot, or manual push and twist control available as option.

Usable as stand-alone, or as multiple stackable units.

Control spool operated by solenoid, with easily removable coil fastened by a ring nut.

Wet pin tube for DC coil, with push rod for mechanical override in case of voltage shortage.

Unrestricted 360° orientation of DC coil.

Control spool held in normal position by return spring.

Optional manual override (push-button or screw type).

Connectors available: DIN 43650 – ISO 4400, AMP Junior, DT04-2P (Deutsch), Free leads.

Size 8

Series 00

Maximum operating pressure 310 bar (4500 psi)

Maximum flow 80 l/min (21.1 gpm)

Ports G 3/8 - G 1/2 - SAE10

NEW spool position sensor available for this valve. See RE18300-30

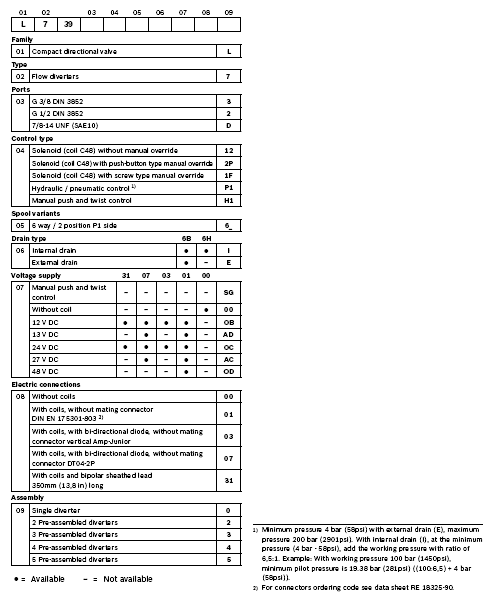

RE18302-12-order

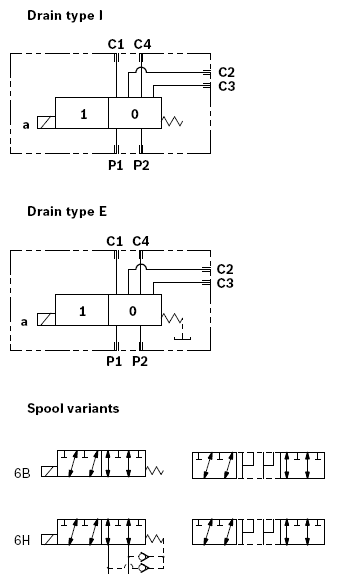

RE18302-12-sym
RE18302-12-01

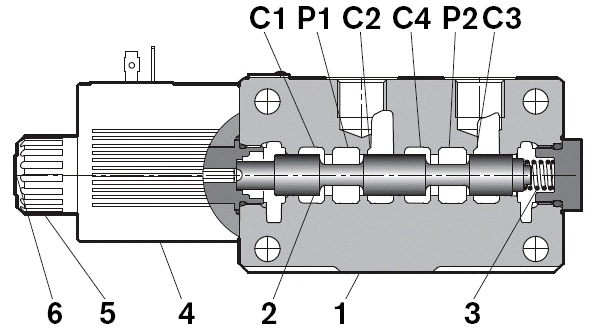

A valve basically consists of a housing (1), a control spool (2), a return spring (3) and a solenoid (5). It is designed to connect two inlet lines P1 – P2 (normally a set of hoses) and divert them to either the outlet ports (C1 – C4) with spool in position “0”, when the solenoid is de-energized, or to the outlet ports (C2 – C3) with spool in position “1”, when the solenoid is energized.

With the coil de-energized, the return spring (3) pushes back the spool (2) and holds it in position “0”.

The coil (5) is fastened to the tube by the ring nut (6).

The manual override (6) allows to shift the spool (2) also in case of voltage shortage.

An external drain, to be connected to tank, ensures shifting operations also at higher working pressure.

Hydraulic / pneumatic pilot control, or manual push and twist control for spool shifting are available upon request.

Code
Voltage [V]
Connector type
Coil description
Marking
Coil Mat no.
OB 01
12 DC
EN 175301-803 (Ex. DIN 43650)
C4801 12DC
12 DC
R933000063
OB 03
12 DC
AMP JUNIOR
C4803 12DC
12 DC
R933000065
OB 07
12 DC
DEUTSCH DT 04-2P
C4807 12DC
12 DC
R933000068
OB 31
12 DC
Cable 350 mm long
C4831 12DC
12 DC
R933000064
AD 01
13 DC
EN 175301-803 (Ex. DIN 43650)
C4801 13DC
13 DC
R933000069
AD 07
13 DC
DEUTSCH DT 04-2P
C4807 13DC
13 DC
R933000073
OC 01
24 DC
EN 175301-803 (Ex. DIN 43650)
C4801 24DC
24 DC
R933000076
OC 03
24 DC
AMP JUNIOR
C4803 24DC
24 DC
R933000071
OC 07
24 DC
DEUTSCH DT 04-2P
C4807 24DC
24 DC
R933000075
OC 31
24 DC
Cable 350 mm long
C4831 24DC
24 DC
R933000070
AC 01
27 DC
EN 175301-803 (Ex. DIN 43650)
C4801 27DC
27 DC
R933000077
AC 07
27 DC
DEUTSCH DT 04-2P
C4807 27DC
27 DC
R933000074
OD 01
48 DC
DIN EN 175301-803 ISO 4400
C4801 48DC
48 DC
R933000078
General
Valve weight:
  • 3.2 kg (7.06 lbs)
Mounting position:
  • unrestricted
Fluid Temperature:
  • –20….+50 (-4….+122) (NBR seals)
Hydraulic
Maximum pressure with external drain (“E” type):
  • 310 bar (4500 psi)
Maximum pressure with internal drain (“I” type):
  • 250 bar (3625 psi)
Maximum pressure with internal drain and 6H scheme:
  • 310 (4500)
Maximum inlet flow:
  • 80 l/min (21.1 gpm)
Hydraulic fluid General properties: it must have physical lubricating and chemical properties suitable for use in hydraulic systems such as, for example:
  • Mineral oil based hydraulic fluids HL (DIN 51524 part 1). Mineral oil based hydraulic fluids HLP (DIN 51524 part 2). For use of environmentally acceptable fluids (vegetable or polyglycol base) please consult us.
Fluid Temperature:
  • –20….+80 °C (-4….+176 °F) (NBR seals)
Permissible degree of fluid contamination:
  • ISO 4572: βₓ ≥ 75 X = 12…15 ISO 4406: class 20/18/15 NAS 1638: class 9
Viscosity range:
  • 5….420 mm²/s
Internal leakage with 100 bar (1450 psi) secondary pressure at C:
  • min.10 cc/min (0.61 in³/min) max. 20 cc/min (1.22 in³/min)
Electrical
Voltage type:
  • DC
Voltage tolerance (nominal voltage):
  • -10 …. +10 %
Duty:
  • Continuous, with ambient temperature ≤ 50°C (122°F)
Coil wire temperature not to be exceeded:
  • 150 °C (302 °F)
Insulation class:
  • H
Compliance with:
  • Low Voltage Directive LVD 73/23/EC (2006/95/EC), 2004/108/EC
Coil weight with DIN 43650 – ISO 4400 connector:
  • 0.5 kg (1.1 lbs)
Voltage:
  • 12 V
  • 13 V
  • 24 V
  • 27 V
  • 48 V
Voltage type:
  • DC
  • DC
  • DC
  • DC
  • DC
Power consumption:
  • 36 W
  • 36 W
  • 36 W
  • 36 W
  • 36 W
Current (nominal at 20 °C (68 °F)):
  • 3.0 A
  • 2.77 A
  • 1.53 A
  • 1.32 A
  • 0.75 A
Resistance (nominal at 20 °C (68 °F)):
  • Note: For applications with different specifications consult us
  • 3.97 Ω
  • 4.68 Ω
  • 15.67 Ω
  • 20.42 Ω
  • 63.60 Ω

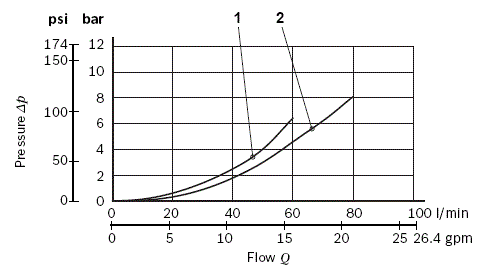

RE18302-12-02
Model
Curve no.
P1>C1
P1>C2
P2>C4
P2>C3
VS270-G3/8
1
1
1
1
VS270-G1/2
2
2
2
2
VS270-SAE10
2
2
2
2

Measured with hydraulic fluid ISO-VG32 at 45° ±5 °C (113° ±9 °F); ambient temperature 20 °C (68 °F).

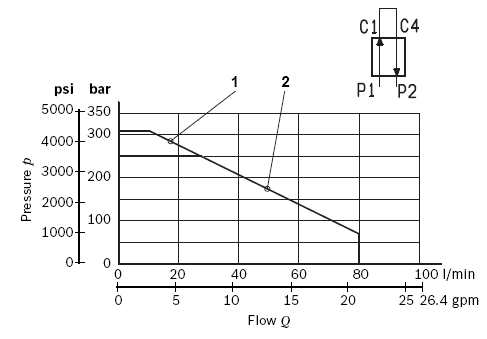

RE18302-12-03

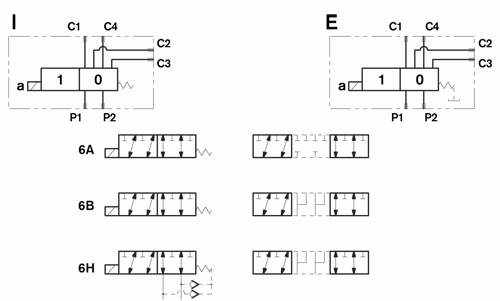

Scheme
Internal Drain
External Drain
v6B
2
1
6H
1
-

The performance curves are measured with flow going across and caming back, like P1>C1 and C4>P2.

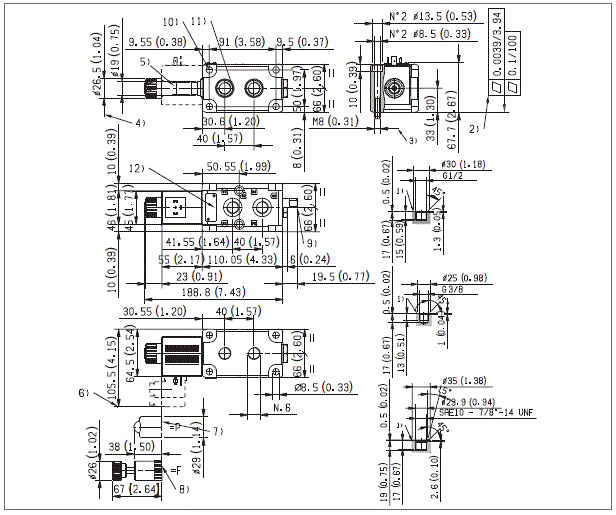

RE18302-12-dim
1
Ports P1, P2, C1, C2, C3, C4.
2
The mounting surface flatness must comply with specifications.
3
Two through installation holes reccomended screws M8x65 with strength class DIN 8.8. Torque 15 – 16 Nm (11,1-11,8 ft-lb).
4
Ring nut for coil locking Ø 26.5 mm (1.04 inch). Torque 5-6 Nm (3.6-4.4 ft-lb).
5
Solenoid tube Ø 19 mm (0.75 inch).
6
Minimum clearance needed for connector removal.
7
Optional push-button, 2P type, manual override for spool opening: it is pressure stuck to the ring nut for coil locking. Mat no. R933000043.
8
Optional screw type manual override, 1F type, for spool opening: it is screwed (torque 6-7Nm (4.4-5.2 ft-lb)) to the tube as replacement of the coil ring nut. Mat no. R933007215.
9
External drain plug available with G 1/4 and SAE 4 port.
10
Four through holes, 8.5 mm dia., for coupling of other similar diverter valve.
11
O-Ring (NBR) for P1 and P2 ports.
12
Identification label.

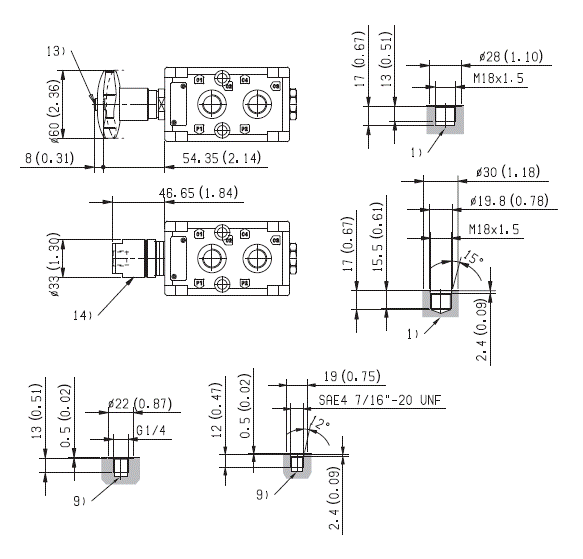

RE18302-12-dim2
1
Ports P1, P2, C1, C2, C3, C4.
13
Dimensions of manual version, push and twist type.
14
Dimensions of hydraulic / pneumatic piloted version. Pilot port plug available with G 1/4.

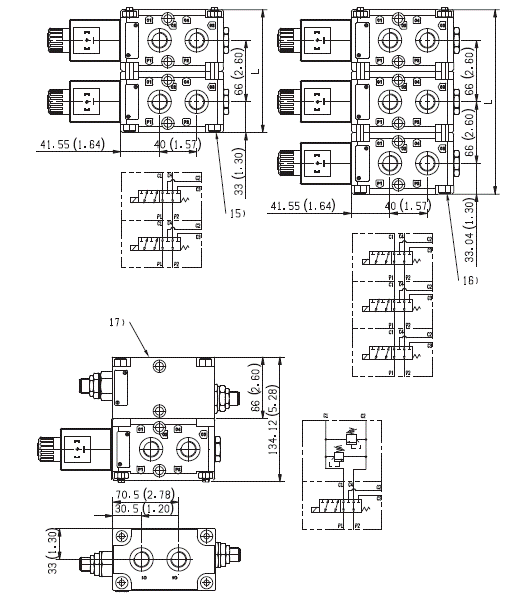

RE18302-12-dim3
15
Four screws M8x125 DIN 912 for coupling together 2 diverter valves. Suggested bolt strength class DIN 8.8. Torque 16 – 18 Nm (11.8-13.3 ft-lb).
16
Four screws M8x190 DIN 912 for coupling together 3 diverter valves. Suggested bolt strength class DIN 8.8. Torque 16-18 Nm (11.-13.3 ft lb).
17
Modular relief valves (cartridges VMD1040SV): with G 3/8 ports, code L7313610214SV00 with SAE 8 ports, code L731C610214SV00. Max pressure 250 bar (3625psi).
Total stacked units
Total Ports
Total length
Bolts (v) or Tie Rods (t)
Torque Nm / (ft-lb)
2
8
132 (5.2)
M8x125 (v)
16-18 / (11.8-13.2)
3
10
198 (7.8)
M8x190 (v)
16-18 / (11.8-13.2)
4
12
264 (10.4)
M8x270 (t)
16-18 / (11.8-13.2)
5
14
330 (13.0)
M8x330 (t)
16-18 / (11.8-13.2)

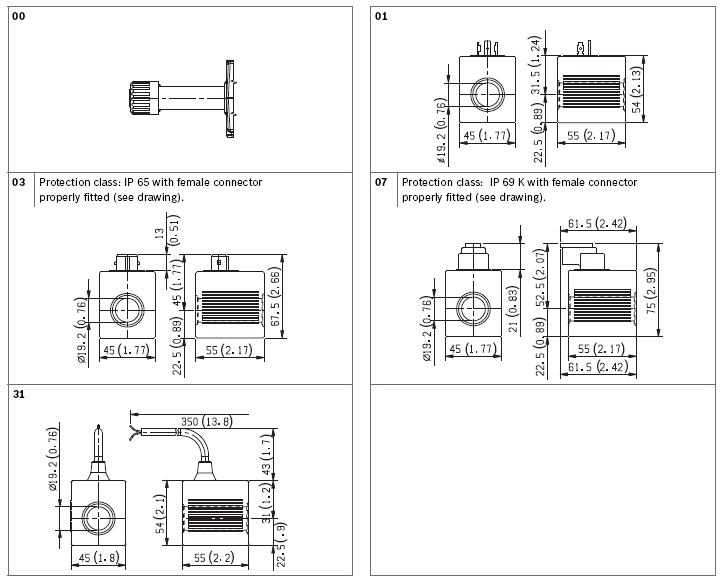

RE18302-12-04
