Compact Directional Valves - Non-compensated and Post-compensated - Inlet elements ED Series

TE11

Expand All|Collapse All
Description

The inlet elements TE-11-__ are employed to connect the external P and T lines to the P and T channels inside the ED elements of the Directional Valve Assembly. They incorporate a 3-way pressure reducing / relieving cartridge which allows to control the primary pressure in the P line of the ED elements. The primary pressure can be adjusted and can be checked and through the Test Point port M. The TE-11-__ inlet elements are available with body made of Black Anodized Aluminium (AL). Hydraulic Ports P and T can be size G 3/8, G 1/2 or SAE 8 (3/4” 16 UNF). Test point M is G 1/4 on BSPP versions, and SAE 4 in SAE versions.

General
Label Needed:
  • 0.54 kg (1.19 lbs) TE-11-02-00-
Label Needed:
  • 0.54 kg (1.19 lbs) TE-11-03-00-
Label Needed:
  • 0.54 kg (1.19 lbs) TE-11-56-00-
Label Needed:
  • 0.80 kg (1.76 lbs) TE-11-02-S_-
Label Needed:
  • 0.80 kg (1.76 lbs) TE-11-03-S_-
Label Needed:
  • 0.80 kg (1.76 lbs) TE-11-56-S_-
Fluid Temperature:
  • –20….+50 (-4….+122) (NBR seals)
Hydraulic:
Maximum pressure:
  • 250 bar (3625 psi)
Maximum inlet flow:
  • 50 l/min (13.2 gpm)
Hydraulic fluid General properties: it must have physical lubricating and chemical properties suitable for use in hydraulic systems such as, for example:
  • Mineral oil based hydraulic fluids HL (DIN 51524 part 1). Mineral oil based hydraulic fluids HLP (DIN 51524 part 2). For use of environmentally acceptable fluids (vegetable or polyglycol base) please consult us.
Fluid Temperature:
  • –20….+80 °C (-4….+176 °F) (NBR)
Permissible degree of fluid contamination:
  • ISO 4572: βx≥75 X=10…12 ISO 4406: class 19/17/14 NAS 1638: class 8
Viscosity range:
  • Note: For applications with different specifications consult us
  • 5….420 mm2/s

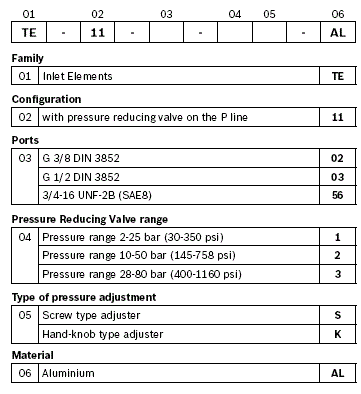

RE18300-10-order
RE18300-10-sym

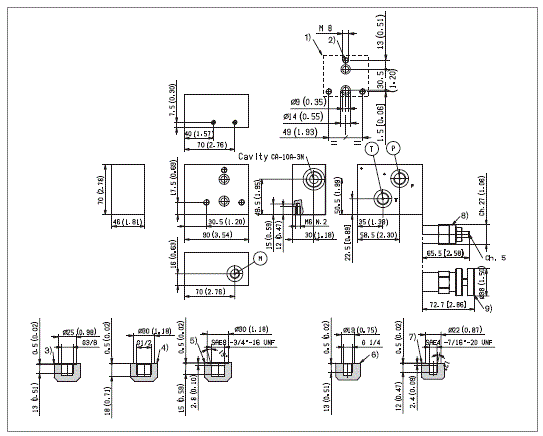

RE18300-10-dim
1
Flange specifications for coupling to the ED Directional Valve Elements (for Version TE-11-02…).
2
For tie rod and tightening torque information see data sheet RE 18301-90.
3
Hydraulic Ports P-T G 3/8, for Inlet Elements TE-11-02…
4
Hydraulic Ports P-T G 1/2, for versions TE-11-03-…
5
Hydraulic Ports P-T SAE 8, for versions TE-11-56.
6
Test Point port (M) G 1/4, for Inlet Elements TE-11-02… and TE-11-03…
7
Test Point port SAE 4, for versions TE-11-56-…
8
Pressure Reducing/Relieving Cartridge VRPR, with screw type adjuster.
9
Pressure Reducing/Relieving Cartridge VRPR, with hand-knob type adjuster.
