Compact Motion Control Valves - Counterbalance Valves - Single acting with regenerative function

A-VBSO-CR-EA-42

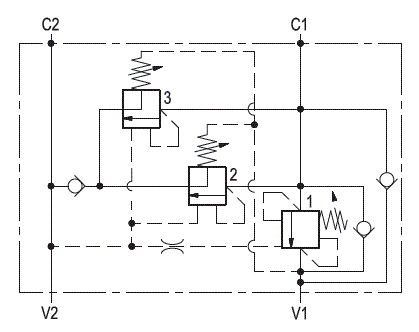

RE18307-96-01(2023-10-25)
Description

It provides high speed cylinder extension at low pressure operation; the extension speed increment given by the regenerative function disappears when line pressure in V2 increases above the pressure threshold needed to pilot open valve (1) which diverts to tank the flow from the annular chamber. Two pilot assisted by-pass counterbalance “fully vented type” valves (2 and 3) provide the regenerative function by feeding into the full bore (C2) the flow coming out from the annular side (C1). The by-pass valves (2 and 3) are piloted by V2 pressure and are internally vented into V1 which acts as “Tank” line during cylinder extension. For better safety and compact assembly, the C1 and C2 ports are gasket mounted directly on the actuator.

General:
Max. operating pressure:
  • 410 bar (5945 psi)
Max. flow:
  • 400 l/min. (106 gpm)
Weight:
  • 18.9 kg (41.7 lbs)
Manifold material:
  • Zinc plated cast iron
Flange seal kit ¹):
  • E00000000000050 (R930052830)
Fluid:
  • Mineral oil (HL, HLP) according DIN 51524
Fluid temperature range:
  • -20 °C to 120 (-4 to 248 °F)
Viscosity range:
  • 5 to 800 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Class 19/17/14 according to ISO 4406
Other technical data:
  • Note: Note: for applications outside these parameters, please consult us.
  • Note: ¹) Seals for 10 valves
  • see data sheet 18350-50

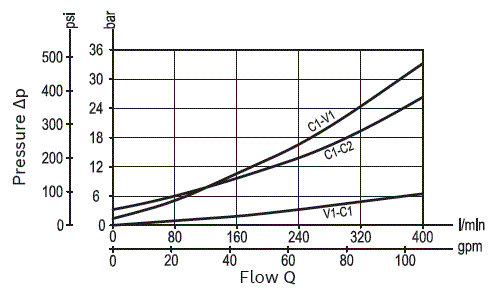

RE18307-96-02(2023-10-25)

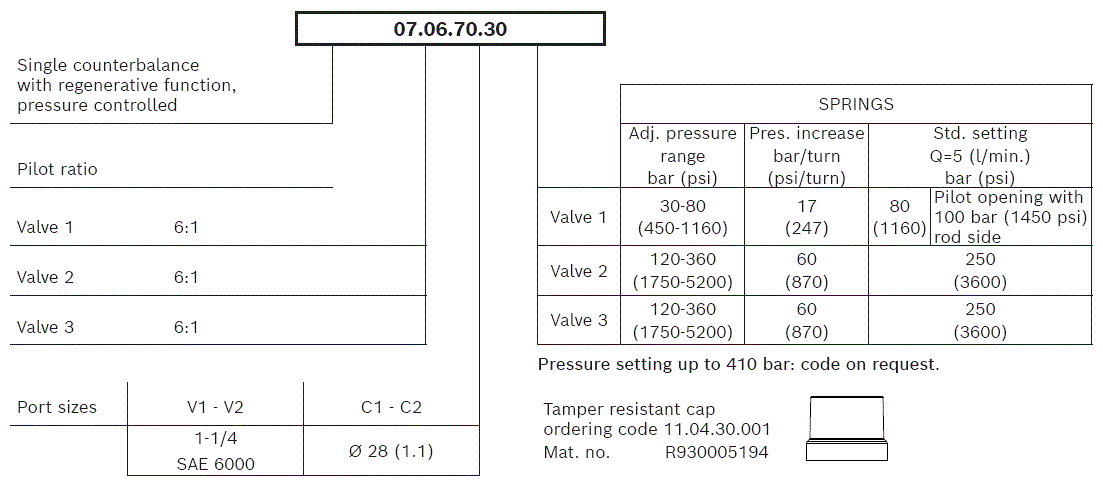

RE18307-96-order(2023-10-25)

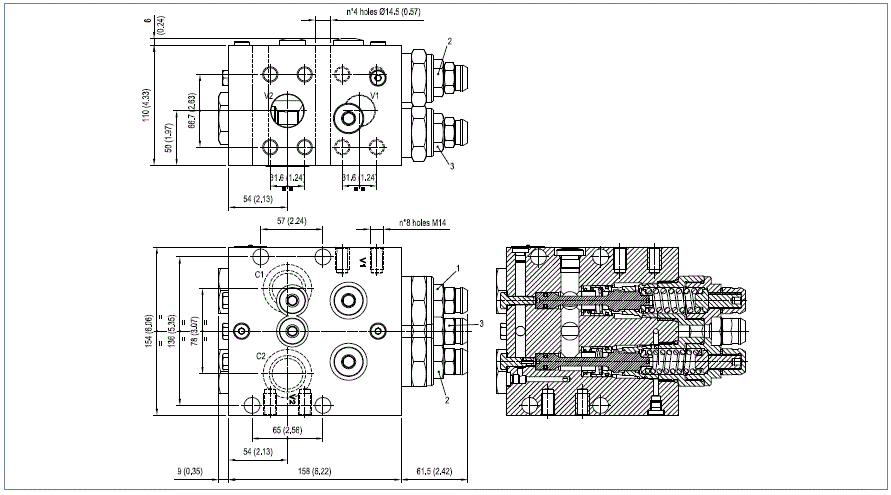

RE18307-96-dim(2023-10-25)
