Compact Motion Control Valves - Counterbalance Valves - Double acting vented

A-VBSO-DE-CCAP-78-FC2

RE18308-64-01(2023-10-25)
Description

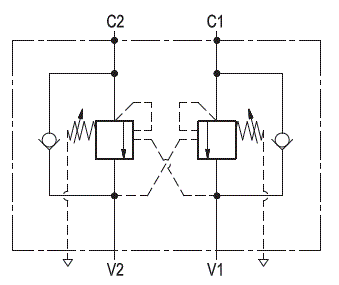

It provides static and dynamic control of load by regulating the flow IN and OUT of the actuator, through ports C1 and C2. This valve module includes 2 sections, each one composed by a check and a relief valve with balanced piston, pilot assisted by pressure in the opposite line: the check section allows free flow into the actuator, then holds the load against reverse movement; with pilot pressure applied at the line across, the pressure setting of the relief is reduced in proportion to the stated ratio until opening and allowing controlled reverse flow. Relief operates at the valve setting independent of back-pressure, but the piloted opening remains subject to additive pressure at V1 or V2. The relief spring chambers are vented to air: relief and piloted opening are independent of back-pressure at V1 or V2. For better safety and compact assembly, the C1 and C2 ports are gasket mounted directly on the actuator.

General:
Max. operating pressure:
  • 350 bar (5000 psi)
Max. flow:
  • 40 l/min. (11 gpm)
Weight:
  • 1.8 kg (4 lbs)
Manifold material:
  • Zinc plated steel
Flange seal kit ¹):
  • E00000000000014 (R930005947)
Fluid:
  • Mineral oil (HL, HLP) according DIN 51524
Fluid temperature range:
  • -30 °C to 100 (-22 to 212 °F)
Viscosity range:
  • 5 to 800 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Class 19/17/14 according to ISO 4406
Other technical data:
  • see data sheet 18350-50
Relief setting: at least 1.3 times the highest expected load.:
  • Note: ¹) Seals for 10 valves.
  • Note: Note: for applications outside these parameters, please consult us.

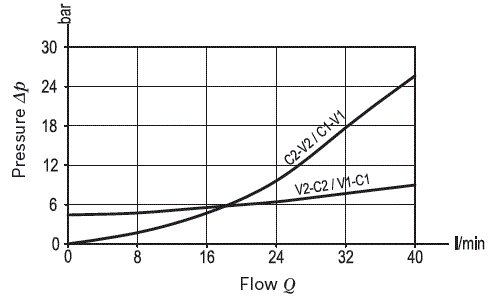

RE18308-64-02(2023-10-25)

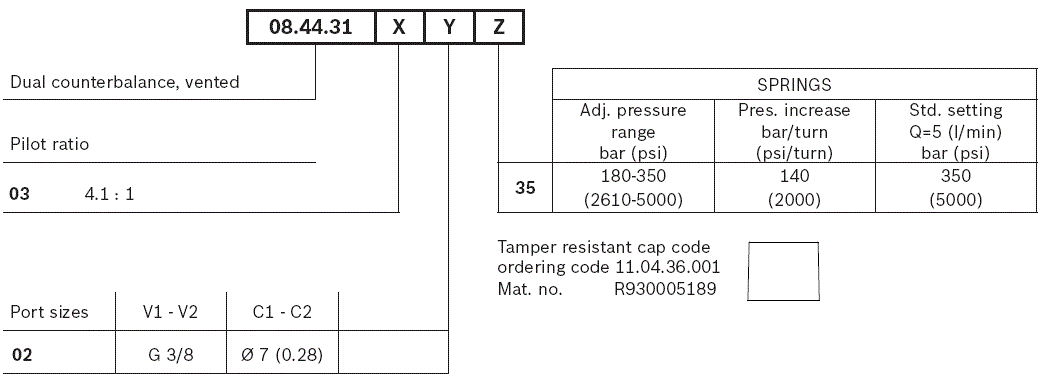

RE18308-64-order(2023-10-25)

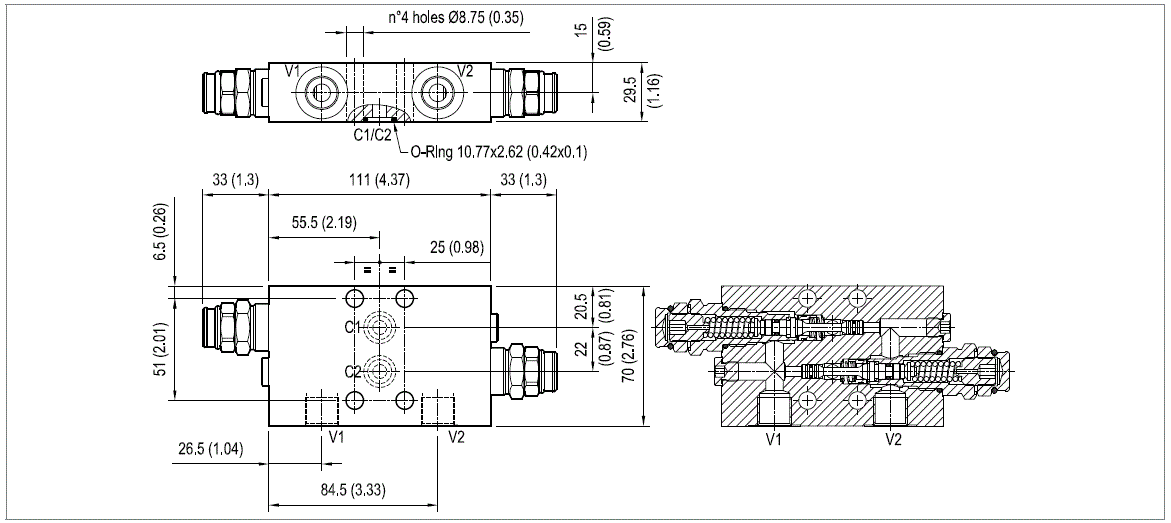

RE18308-64-dim(2023-10-25)
