Compact Motion Control Valves - Flow Control Valves - Flow regulator

A-VRFC2

Description

A constant flow rate, regardless of system pressures, is established from E to R, while a minimum pressure differential of approximately 5 bar (70 psi) exists between the two ports. Output flow can be varied from zero (closed) to the nominal maximum rating. Reverse flow from R to E is limited by the selected opening of the restrictor and is not pressure compensated.

General:
Max. operating pressure:
  • 350 bar (5000 psi)
Q= max. inlet flow “E” port (see “Dimensions”):
Flow range adjustment:
  • 0 - 3 turns
Weight:
  • see “Dimensions”
Manifold material:
  • Zinc plated steel
Fluid:
  • Mineral oil (HL, HLP) according DIN 51524
Fluid temperature range:
  • -30 °C to 100 (-22 to 212 °F)
Viscosity range:
  • 5 to 800 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Class 19/17/14 according to ISO 4406
Other technical data:
  • Note: Note: for applications outside these parameters, please consult us.
  • see data sheet 18350-50

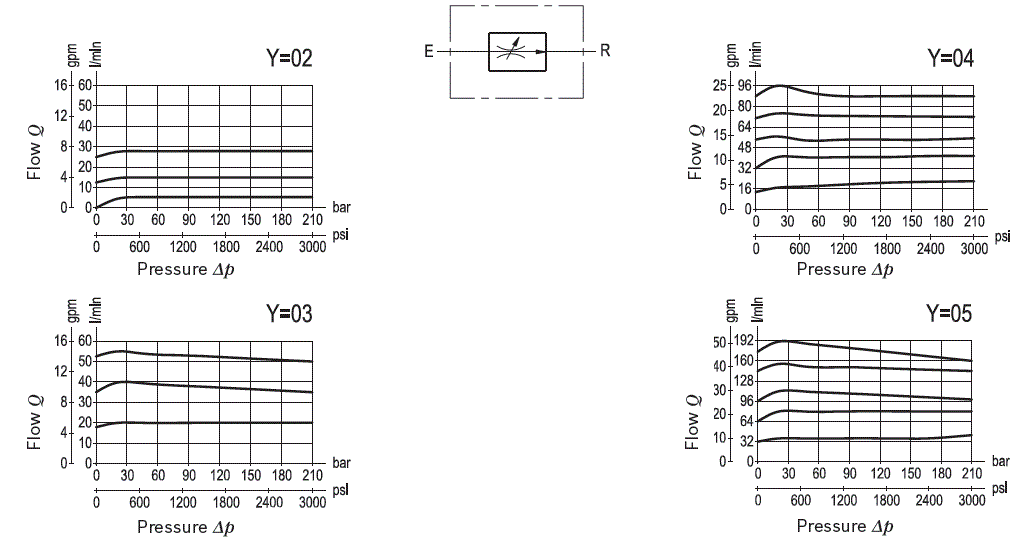

RE18309-35-01(2023-10-27)

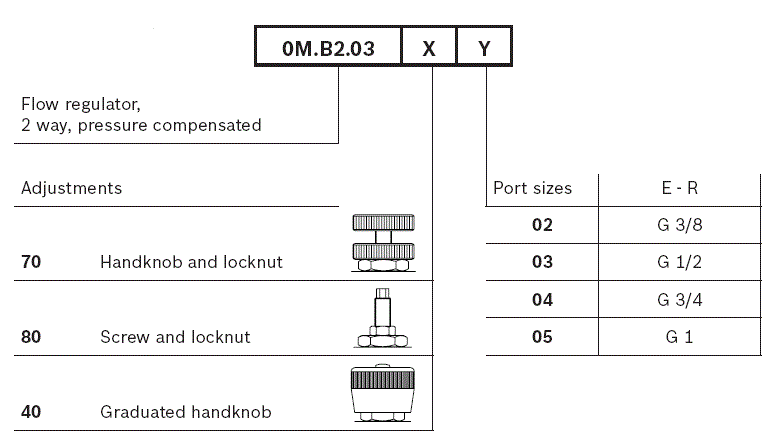

RE18309-35-order(2023-10-27)
RE18309-35-dim(2023-10-27)
