Electronic Controls - Electronic Control Units (ECU)

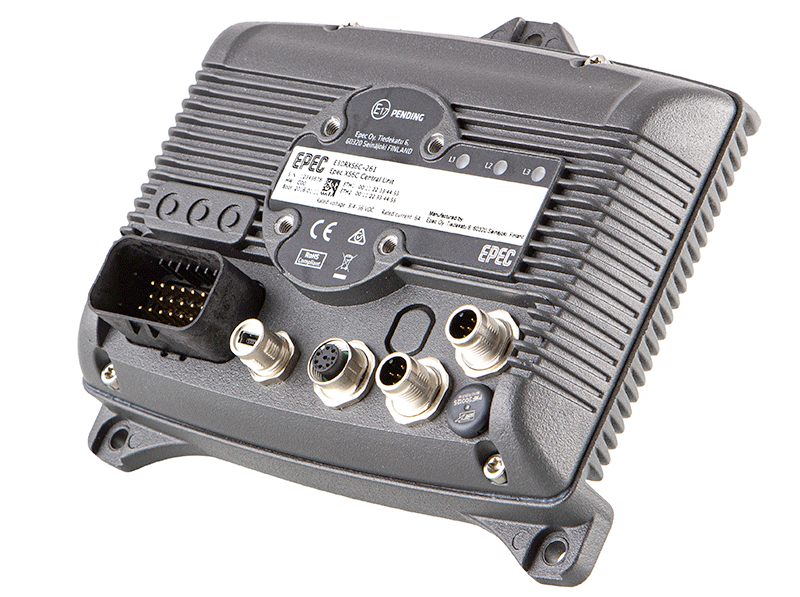

EPEC-XS6C

Epec XS6C Central Unit has up to 6 CAN buses to connect it with other devices. XS6C also includes 2 Ethernets to enable, for example, IoT solutions.

Expand All|Collapse All
Processor:
  • 32 bit dual/quad core CPU
Flash memory:
  • 4 GB
  • 32 GB
RAM:
  • 1024 MB
CAN ports:
  • 6
Ethernet ports:
  • 2
USB ports:
  • 1
Total I/O:
  • 5 3 inputs, 2 outputs, or 5 inputs and 0 outputs)
IP class:
  • IP67
Temperature range:
  • -30 to 65 °C (-22 to 149 °F)
Connectors:
  • 1 x AMP23, 2-4 x M12
Programming:
  • Codesys 3.5
Supported communication protocols:
  • CANopen
  • SAE J1939
  • MODBUS
  • NMEA 2000
Indicator:
  • 3 three-colored diagnostic LED for quick status check and fault detection

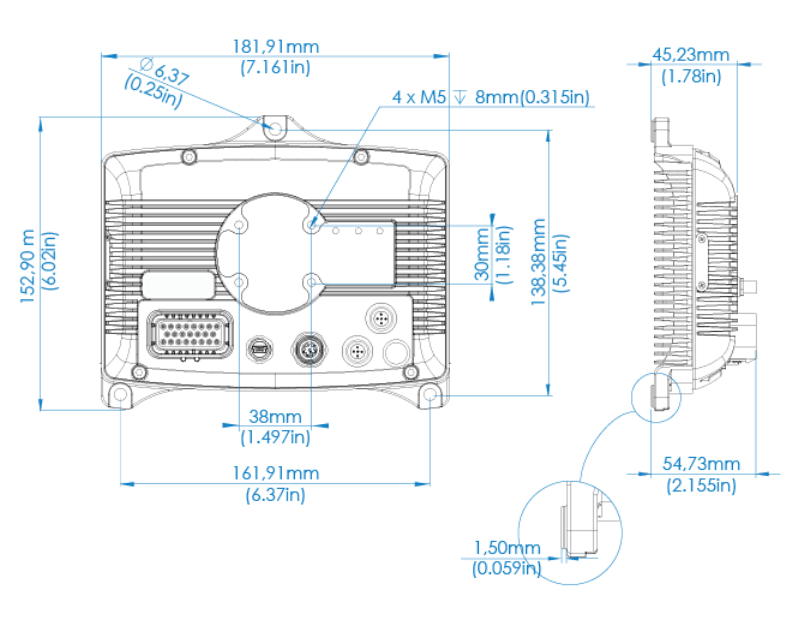

EPEC-XS6C_dim(2025-05-12)
Symbol/Name
Explanation
CE
This product complies with the requirements set in the CE Standard.
E17
This product is certified with normal automotive (E17) EMC (electromagnetic compatibility) standards.
RoHS2
This product complies with the RoHS directive (The Restriction of the use of certain Hazardous Substances in Electrical and Electronic Equipment).
AEF HW conformance*
This product has AEF HW conformance approval (AEF HW ID 000441)

* Only for ISOBUS product version E30E3606-23

Ordering code
4002973
4002974
EPEC model
E30RXS6C-261
E30RXS6C-262
CAN
6
6
RS-232
1
1
USB
1
1
Ethernet
2
2
5 V REF
1
1
DO/DI
2
2
AI/DI
1
1
DI
2
2
Accelerometer
no
yes
