Heavy-duty pressure sensor

Overview

Description

High-accuracy heavy-duty pressure sensors with 1% total error band accuracy accomplished by marrying a high performance ASIC to a very stable, field-proven polysilicon, thin-film pressure sensor. These sensors are intended for use in demanding industrial and off-highway equipment.

Features

  • Advanced ASIC technology for reliability and accuracy
  • 1% total error band accuracy within -20 to 85°C (-4 to 185°F) temperature range
  • Reverse polarity and miswire-protected
  • Broad temperature capability
  • All-welded pressure construction
  • High EMI/RFI rating
  • IP67 ingress rated
  • Diagnostic rails <0.5 and >4.5 V
Electrical Parameters
Supply voltage:
  • 5 Vdc
  • 9 to 36 Vdc
Voltage output:
  • 0.5 to 4.5 Vdc
Accuracy:
  • ±1% To -20 to 85 °C (-4 to 185 °F) temperature extremes
Environmental Ratings
Response:
  • <1 ms
Operating and storage temperature:
  • -40 to 125 °C (-40 to 257 °F)
Humidity:
  • 0 to 100% RH
Vibration:
  • 5 G 20 to 2000 Hz
Ingress protection:
  • IP67
CE rating:
  • EN61326: 1997, 1998 +A2.2001 Annex A (heavy industrial)
Installation Requirements
Connector:
  • Deutsch DT04-3P
Port:
  • SAE #6 ORB, 9/16-18 UNF-2A
Installation torque:
  • 27 to 34 N-m (20 to 25 ft-lb)

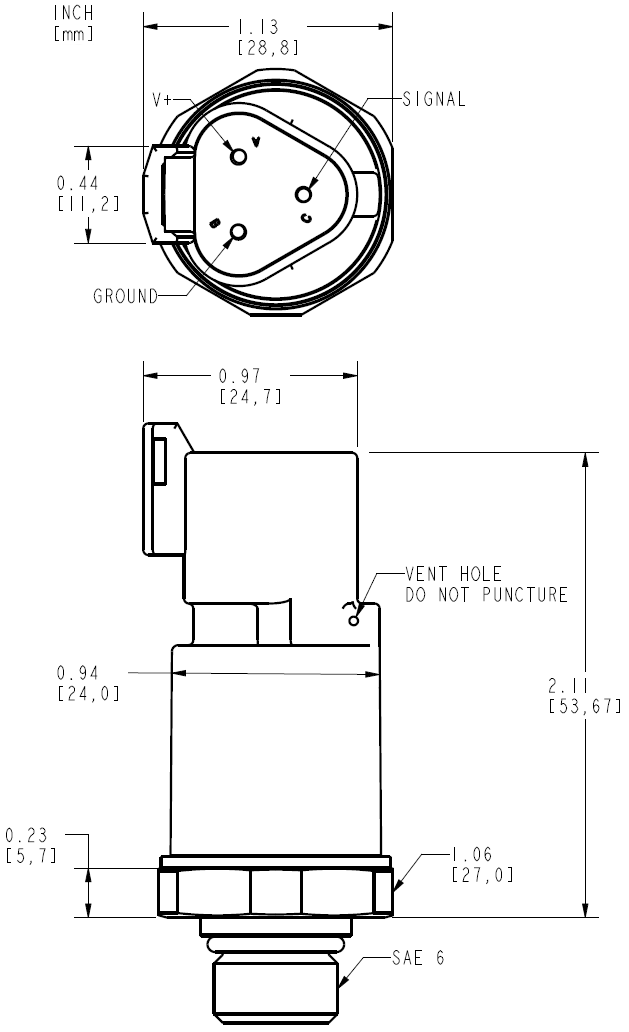

ERPXXX-ID-06_Dim(2022-02-24)
Part No.
Model No.
Range
Vs
-Vs
Is max.
Proof
Burst
4000650
ERP035-RM-ID-06
35 bar (500 psig)
5 Vdc
-5 Vdc
3.5 mA
200%
1000%
4000651
ERP103-RM-ID-06
103 bar (1500 psig)
5 Vdc
-5 Vdc
3.5 mA
200%
500%
4000652
ERP207-RM-ID-06
207 bar (3000 psig)
5 Vdc
-5 Vdc
3.5 mA
200%
500%
4000653
ERP345-RM-ID-06
345 bar (5000 psig)
5 Vdc
-5 Vdc
3.5 mA
150%
500%
4000654
ERP414-RM-ID-06
414 bar (6000 psig)
5 Vdc
-5 Vdc
3.5 mA
150%
500%
4000655
ERP035-B-ID-06
35 bar (500 psig)
9 to 36 Vdc
-36 Vdc
5 mA
200%
1000%
4000656
ERP103-B-ID-06
103 bar (1500 psig)
9 to 36 Vdc
-36 Vdc
5 mA
200%
500%
4000657
ERP207-B-ID-06
207 bar (3000 psig)
9 to 36 Vdc
-36 Vdc
5 mA
200%
500%
4000658
ERP345-B-ID-06
345 bar (5000 psig)
9 to 36 Vdc
-36 Vdc
5 mA
150%
500%
4000659
ERP414-B-ID-06
414 bar (6000 psig)
9 to 36 Vdc
-36 Vdc
5 mA
150%
500%

Mating connector: Deutsch DT04-3S Part No. 4001952
