Manifolds and Plates - Line Mount - Needle Restrictor

ST-C-06-C

RE18331-01-dim(2023-11-24)
Table "Y"
Cavity A
Y
PORT SIZE 1-2
Rated Flow l/min (gpm)

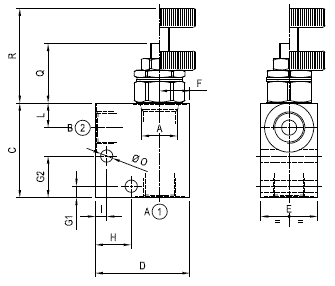

DIMENSIONS mm (Inches)




C
D
E
F
G1
G2
H
I
L
O
Q
R
SIZE08
09
G 1/4

up to 40 (11)
50(1.97)
50(1.97)
30(1.18)
16(0.63)
6(0.24)
22(0.87)
19(0.75)
6(0.24)
13(0.51)

6.5(0.26)
32(1.26)
51(2.00)

02
G 3/8

50(1.97)
50(1.97)
30(1.18)
16(0.63)
6(0.24)
22(0.87)
19(0.75)
6(0.24)
13(0.51)
6.5(0.26)
32(1.26)
51(2.00)

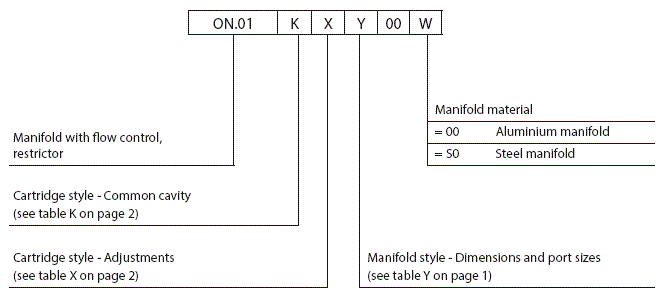

To order only manifold see data sheet RE 18325-85

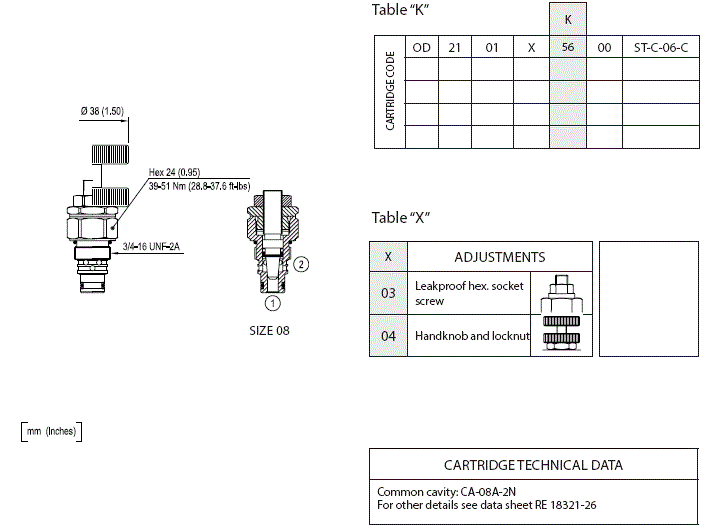

RE18331-01-02(2023-11-24)

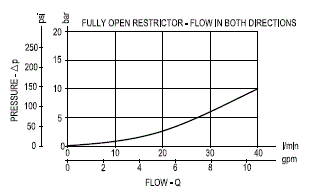

RE18331-01-03(2023-11-24)
RE18331-01-order(2023-11-24)
