Manifolds and Plates - Sub plate - Relief on A/B

EM-VSBN-08A-CETOP 3

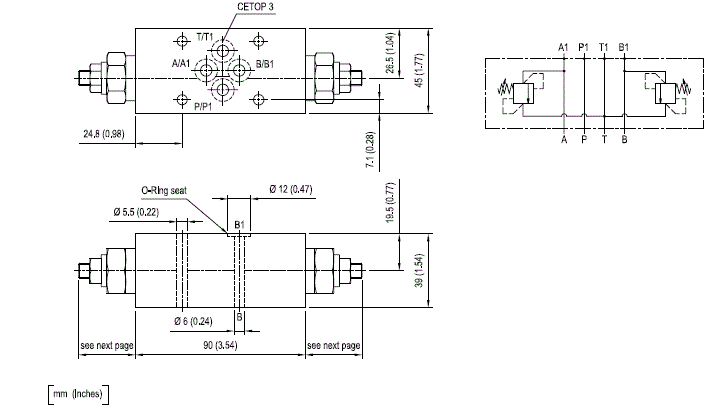

RE18332-75-dim(2023-11-21)
General:
Max flow:
  • up to 20 l/min (5 gpm)
Max operating pressure:
  • 210 bar (3000 psi)
Standard manifolds in high strength aluminium.For working pressure up to 350 bar (5000 psi) and for fatigue applications with any working pressure, steel manifolds are available upon request.:
Weight:
  • 0.53 kg (1.17 lbs)

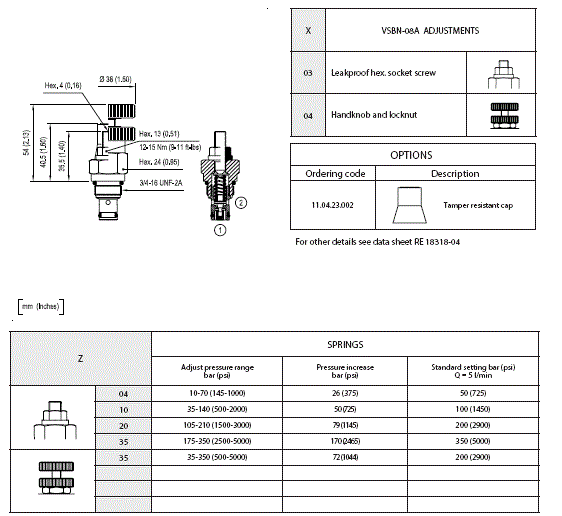

RE18332-75-01(2023-11-21)

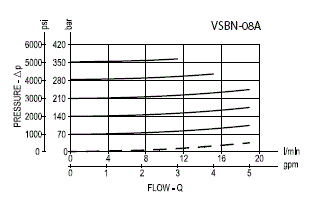

RE18332-75-02(2023-11-21)

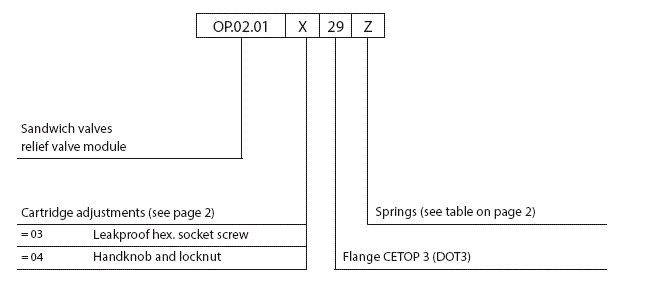

RE18332-75-order(2023-11-21)
