- Compact design and inline mounting for space saving.
- Seven sizes provide great adaptability to the system.
- Easiness of adjustment.
- Mounting position is unrestricted.
Sleeve for Line Mounting - Flow Control Valves - Throttle
SD

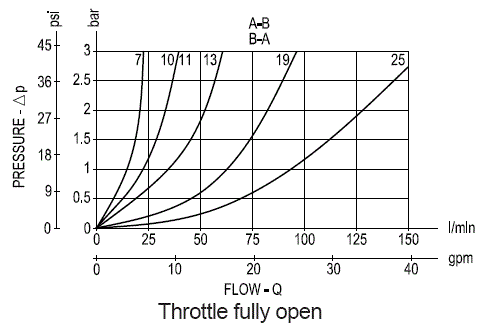

Performance
Advantages
Description
Description
This line mounted valve provides a fully adjustable restriction. Pressure compensation is not provided and flow depends from pressure drop and oil viscosity. Once the flow is adjusted, lock the knurled ring nut (H) in order to maintain the desired opening.
Minor leakage in both directions can be expected with valve fully closed.
With valve fully closed, max admitted pressure: 250 bar.
Technical data
Steel body, zinc plated
General:
Code:
- Pressure P max bar (psi)
SD 7:
- 350 (5000)
SD 10:
- 350 (5000)
SD 13:
- 350 (5000)
SD 19:
- 250 (3600)
SD 25:
- 250 (3600)

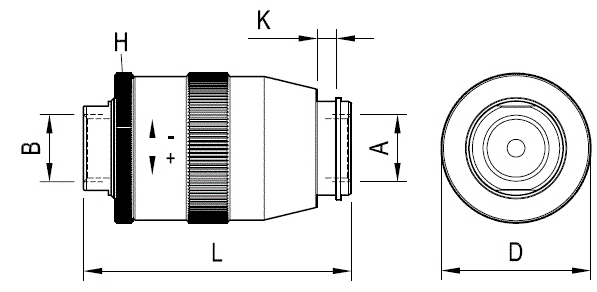

Dimensions
Ports size / Dimensions
Code
Ports size A-B
Ø D mm (inches)
L mm (inches)
K mm (inches)
SD 7
G 1/4
35 (1.38)
62 (2.44)
5 (0.20)
SD 10
G 3/8
38 (1.50)
72 (2.84)
7 (0.28)
SD 13
G 1/2
48 (1.89)
86 (3.39)
8 (0.32)
SD 19
G 3/4
55 (2.17)
100 (3.94)
11 (0.43)
SD 25
G 1
79 (3.11)
126 (4.96)
12 (0.47)
Applications
The SD Series valve is a fully and easily adjustable non-compensated flow control which can be employed for meter-in (Port A connected to the actuator inlet) or meter-out (Port B connected to the actuator outlet in order to control the oil flow from the actuator). The cost effectiveness and the easiness of adjustment make it suitable for many circuits and many applications where a non-compensated flow control is desired.
