Construction
Magnet wire wound on a molded 30% glass reinforced nylon bobbin. Framed in steel and encapsulated with 30% nylon resin.

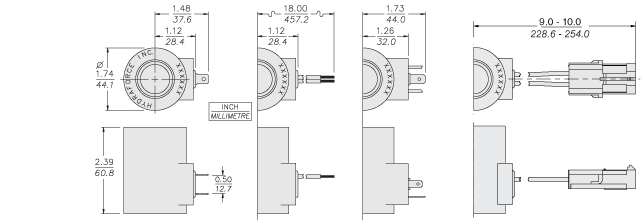

Coil_70-XXDX/X
D COIL 70 SIZE
Properties
Magnet wire:
- U.S. class H 180 °C (356) minimum rating
Weight:
- 0.34 kg (0.74 lb)
Electrical Specifications
Voltage
Resistance
Inductance
Initial current draw
Initial power
12
4.65/5.15 Ohm
1.5 A
11 W
24
18.34/19.96 Ohm
0.75 A
10.8 W
Old Number
New Number
Code
Vols
Termination
UL
Diode
6507612
R901539388
12 DG
12
DIN 43650
true
false
6507212
R930091175
12 DL
12
DUAL LEADS
true
false
6507912
R930091178
12 DL/W
12
MALE 2-PIN WEATHERPACK
true
false
6507112
R935061597
12 DS
12
DUAL SPADE PER SAE J858a
true
false
6507624
R930091177
24 DG
24
DIN 43650
true
false
6507224
R930091176
24 DL
24
DUAL LEADS
true
false
6507124
R930091174
24 DS
24
DUAL SPADE PER SAE J858a
true
false
