Cartridge Valves - Cartridge Valve Accessories - Bodies - 10-size - 5-way

body_10-5w-XXX

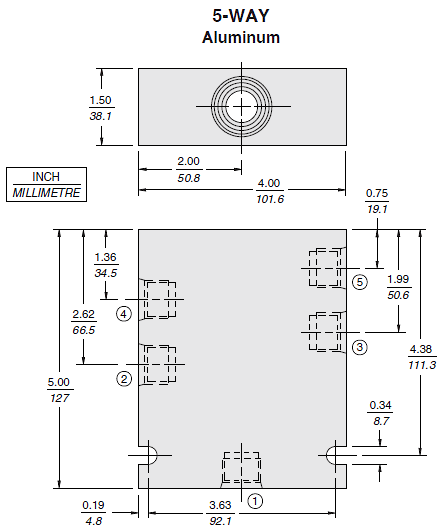

10-Size 5-Way Valve Housings

Pressure rating:
  • 207 bar (3000 psi) Aluminum
  • 345 bar (5000 psi) Ductile iron
Material:
  • 6061-T6511 Aluminum
  • Dura-bar Ductile iron
10_Hous-5w(2022-02-24)

CAVITY: VC10-5

P/N: 7022820
Code: 6T
Material: ALUMINUM
Port 1
Port 2
Port 3
Port 4
Port 5
Port 6
SAE 6
SAE 6
SAE 6
SAE 6
SAE 6
P/N: 7022830
Code: 8T
Material: ALUMINUM
Port 1
Port 2
Port 3
Port 4
Port 5
Port 6
SAE 8
SAE 8
SAE 8
SAE 8
SAE 8
