12-Size 6-Way Valve Housings

Expand All|Collapse All

Ratings

Pressure rating:

207 bar (3000 psi) Aluminum
345 bar (5000 psi) Ductile iron

Material:

6061-T6511 Aluminum
Dura-bar Ductile iron

Dimensions

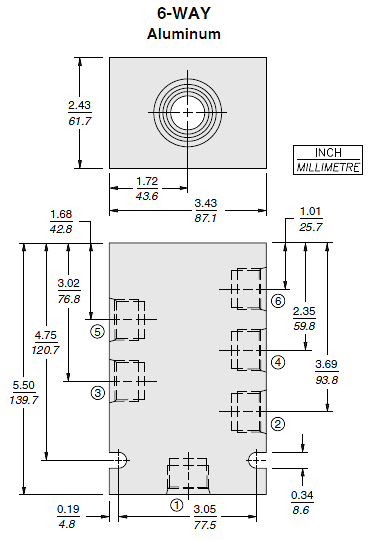

12_Hous-6w-1(2022-02-24)

12_Hous-6w-2(2022-02-24)

Part Numbers

CAVITY: VC12-6

P/N: 7021480

Code: 10T

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 10

SAE 10

SAE 10

SAE 10

SAE 10

SAE10

P/N: 7021470

Code: 8T

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 8

SAE 8

SAE 8

SAE 8

SAE 8

SAE 8
