TS10-36

PRESSURE REDUCING/RELIEVING PROPORTIONAL VALVE U.S. PATENT # 7,137,406

Expand All|Collapse All

Overview

Description

The TS10-36X is a screw-in, cartridge style, pilot-operated, spool-type, proportional pressure reducing/relieving valve which CAN be infinitely adjusted across a prescribed range using a variable electric input. The regulated pressure is proportional to the input electrical current.

Operation

With current applied to the valve coil,the TS10-36XX allows flow from port 2 to port 1 until sufficient pressure is present at port 1 to open the pilot section by offsetting the electrically induced solenoid force. Upon reaching the predetermined pressure at port 1, the valve shifts to restrict inlet flow at port 2, thereby regulating pressure at port 1. in this mode, the valve also relieves port 1 to port 3. With no current applied, the valve will relieve at approximately 100 psi [6,9].

Features

  • 12 and 24 volt coils standard.
  • Optional waterproof E-Coils rated up to IP69K.
  • Industry common cavity.
  • Optional manual override.
Pressure Ratings
Pressure rating:
  • 241.3 bar (3500 psi) Ports 1, 2
  • 68.9 bar (1000 psi) Port 3
Proof pressure:
  • 249.9 bar (3625 psi)
Burst pressure:
  • 758.4 bar (11000 psi) With coil assembled
Adjustable pressure range:
  • 6.9 to 206.8 bar (100 to 3000 psi) Model-code A
  • 6.9 to 158.6 bar (100 to 2300 psi) Model code B
  • 6.9 to 117.2 bar (100 to 1700 psi) Model code C
Flow Ratings
Flow rating:
  • 56.8 lpm (15 gpm)
Maximum pilot flow:
  • 0.02 lpm (0.08 gpm) With maximum control current and with inlet pressure of 241.3 bar (3500 psi) at regulated flow of 3.8 lpm (1 gpm)
Other Ratings
Cycle life:
  • Less than 5% performance degradation over 1 million cycles (based on simulated test at 37.8 lpm (10 gpm) flow and maximum pressure setting.
Corrosion protection:
  • 960 hr salt spray per ASTM b117
Temperature Ratings
Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °F) With buna N seals
  • -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals
  • -54 to 107 °C (-65 to 225 °F) With polyurethane seals
Storage temperature:
  • -40 to 70 °C (-40 to 160 °F)
Ambient temperature:
  • -40 to 70 °C (-40 to 160 °F)
Fluids:
  • Mineral based or synthetic with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 18/16/13 per ISO 4406 (tank pressure is additive to regulated pressure)
Unit weight:
  • 0.21 kg (0.47 lb)
Internal wetted surface area:
  • 192 cm² (29.8 in²) TS10-36X
  • 198 cm² (30.7 in²) TS10-36XM
Maximum control current:
  • 1.10 A 12 V D coil
  • 0.55 A 24 V D coil
  • 141 mH 12 V E coil
  • 626 mH 24 V E coil
Valve inductance:
  • 141 mH 12 V D coil
  • 626 mH 24 V D coil
  • 139 mH 12 V E coil
  • 600 mH 24 V E coil
Recommended PWM frequency:
  • 200 Hz

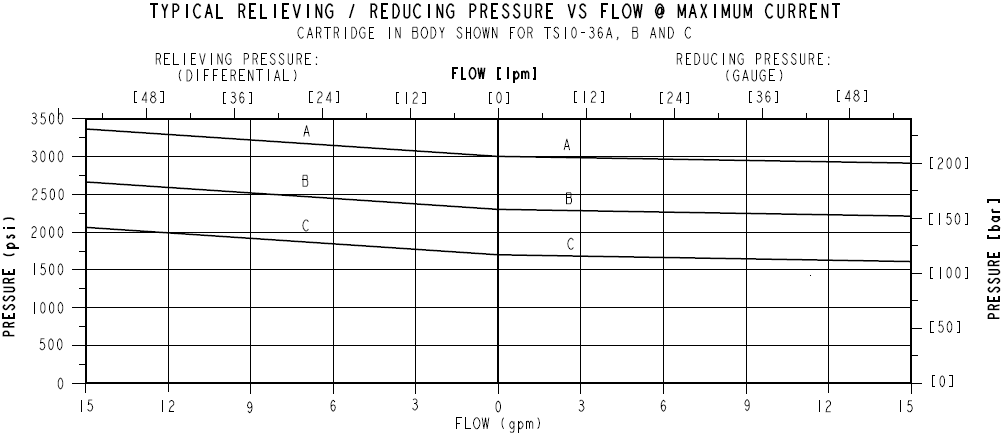

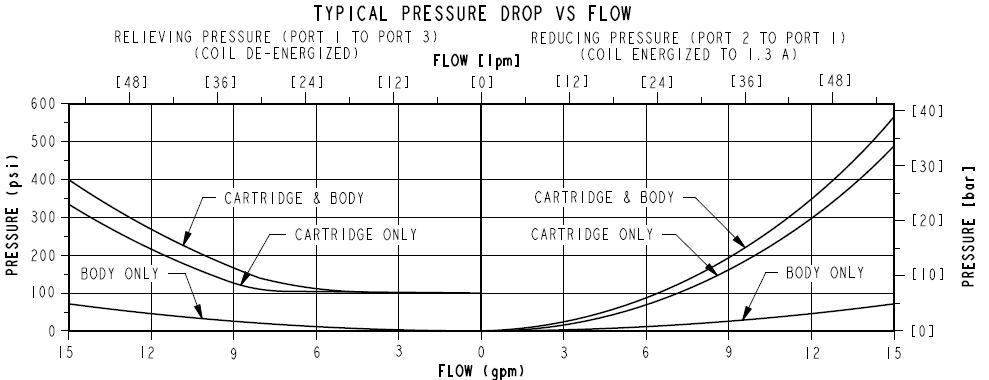

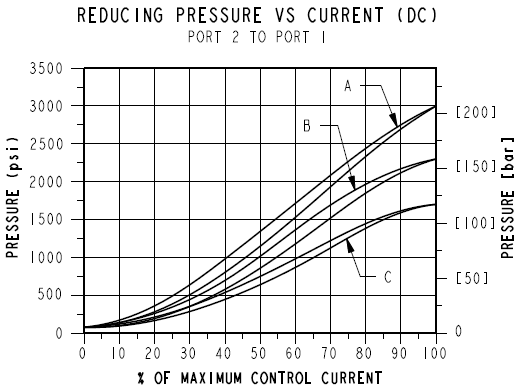

TS10-36_Perf1(2022-02-24) TS10-36_Perf2(2022-02-24) TS10-36_Perf3(2022-02-24)

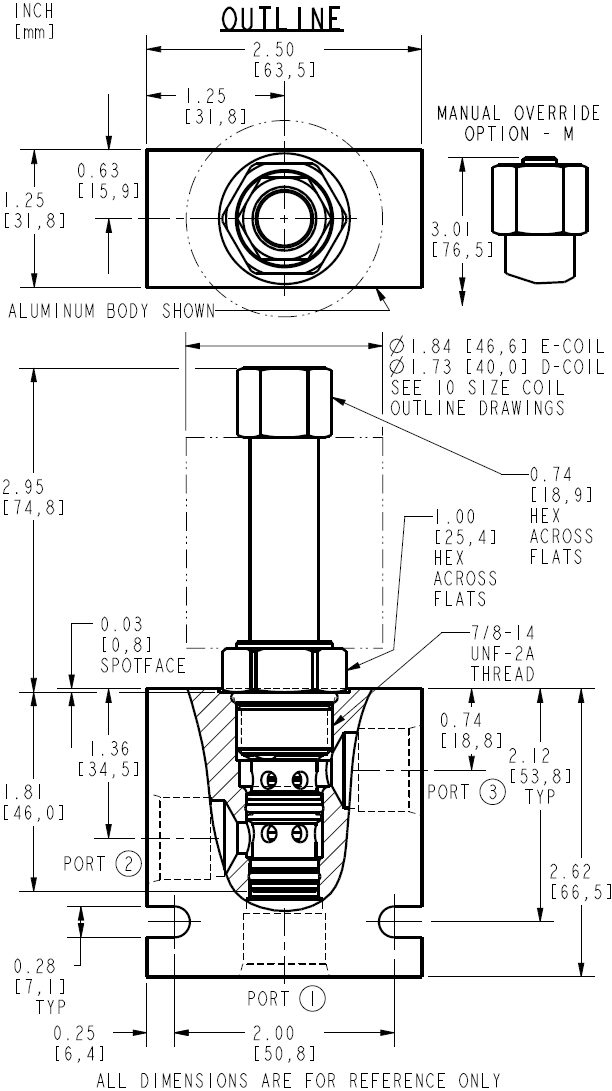

TS10-36_Dim(2022-02-24)
Cavity:
  • VC10-3
Cartridge installation torque:
  • 32.5 to 35.3 N-m (24 to 26 ft-lb)
Coil nut torque:
  • 9.5 to 13.6 N-m (7 to 10 ft-lb)
Orientation restriction:
  • None
Seal kit:
  • SK10-3X-BM SK10-3U-OO X = seal option
Housings:
Coils:

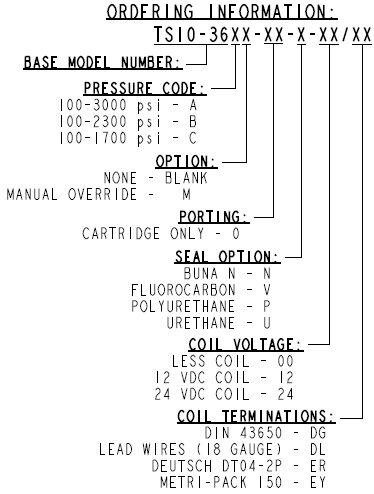

TS10-36_Order(2022-02-24)

Model Options

TS10-36DE-H-J-L
D Regulating Pressure Range
CODE
DESCRIPTION
A
6.9 to 206.8 bar (100 to 3000 psi) Pressure Range
B
6.9 to 158.6 bar (100 to 2300 psi) Pressure Range
C
6.9 to 117.2 bar (100 to 1700 psi) Pressure Range
E Manual Override
CODE
DESCRIPTION
BLANK
NONE
M
Minimum Regulated Pressure Override, 3/16" Internal Hex
H Line Body
CODE
DESCRIPTION
0
No Body
6T
Aluminum SAE 6
8T
Aluminum SAE 8
6TD
Ductile Iron SAE 6
8TD
Ductile Iron SAE 8
3B
Aluminum BSPP 3/8" (3)
3BD
Ductile Iron BSPP 3/8" (3)
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
L Coil
CODE
DESCRIPTION
0
No Coil
10DG
10 VDC, D-Coil, DIN 43650
10DL
10 VDC, D-Coil, Dual Lead Wires
10DS
10 VDC, D-Coil, Dual Spade
10EL
10 VDC, E-Coil, Dual Lead Wires
10ER
10 VDC, E-Coil, Deutsch
12DG
12 VDC, D-Coil, DIN 43650
12DL
12 VDC, D-Coil, Dual Lead Wires, 18 inches long
12DL/36
12 VDC, D-Coil, Dual Lead Wires, 36 inches long
12DL/W
12 VDC, D-Coil, Dual Lead Wires with Weatherpak
12DR
12 VDC, D-Coil, Deutsch
12DS
12 VDC, D-Coil, Dual Spade
12EG
12 VDC, E-Coil, DIN 43650
12EJ
12 VDC, E-Coil, AMP Jr.
12EL
12 VDC, E-Coil, Dual Lead Wires, 18 inches long
12EL/36
12 VDC, E-Coil, Dual Lead Wires, 36 inches long
12ER
12 VDC, E-Coil, Deutsch
12EY
12 VDC, E-Coil, Metri-Pack 150
20DS
20 VDC, D-Coil, Dual Spade
20ER
20 VDC, E-Coil, Deutsch
24AG
24 VDC, D-Coil, DIN 43650
24AP
24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires
24DG
24 VDC, D-Coil, DIN 43650
24DL
24 VDC, D-Coil, Dual Lead Wires
24DL/W
24 VDC, D-Coil, Dual Lead Wires with Weatherpak
24DP
24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires
24DR
24 VDC, D-Coil, Deutsch
24DS
24 VDC, D-Coil, Dual Spade
24EG
24 VDC, E-Coil, DIN 43650
24EJ
24 VDC, E-Coil, AMP Jr.
24EL
24 VDC, E-Coil, Dual Lead Wires, 18 inches long
24EL/36
24 VDC, E-Coil, Dual Lead Wires, 36 inches long
24ER
24 VDC, E-Coil, Deutsch
24EY
24 VDC, E-Coil, Metri-Pack 150
36DS
36 VDC, D-Coil, Dual Spade
