Cartridge Valves - Pressure Control Valves - Relief - Direct Acting - Spool Type

RV10-21

RELIEF VALVE

Expand All|Collapse All

Overview

Description

The RV10-21X is a screw-in, cartridge style, hydraulic relief valve for use as a pressure limiter.

Operation

The RV10-21X allows flow passage from port 1 to port 2, while normally blocking oil flow in the opposite direction. the cartridge has a fully guided spool which is spring-biased closed until sufficient pressure is applied at port 1 to open to port 2.

Pressure Ratings
Pressure rating:
  • 69 bar (1000 psi)
Proof pressure:
  • 138 bar (2000 psi)
Burst pressure:
  • 896 bar (13000 psi)
Flow Ratings
Flow rating:
  • 75.8 lpm (20 gpm)
Temperature Ratings
Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °F) With buna N seals
  • -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals
  • -54 to 107 °C (-65 to 225 °F) With polyurethane seals
Storage temperature:
  • -40 to 70 °C (-40 to 160 °F)
Ambient temperature:
  • -40 to 90 °C (-40 to 194 °F)
Fluids:
  • Mineral based or synthetic with lubricating properties
Fluid viscosity range:
  • 7.4 to 420 cSt
Maximum operating contamination level:
  • 20/18/14 per ISO 4406
Unit weight:
  • 0.235 kg (0.52 lb) A
  • 0.281 kg (0.62 lb) C
  • 0.109 kg (0.24 lb) F
  • 0.254 kg (0.56 lb) FT
  • 0.231 kg (0.51 lb) H
Internal wetted surface area:
  • 90 cm² (14.0 in²) A, C
  • 69 cm² (10.7 in²) F
  • 112 cm² (17.3 in²) FT
  • 115 cm² (17.8 in²) H
Pressure change per adjustment screw turn:
  • 0.9 bar (13 psi) Option A and C, spring code 1.5
  • 1.2 bar (17 psi) Option H, spring code 1.5

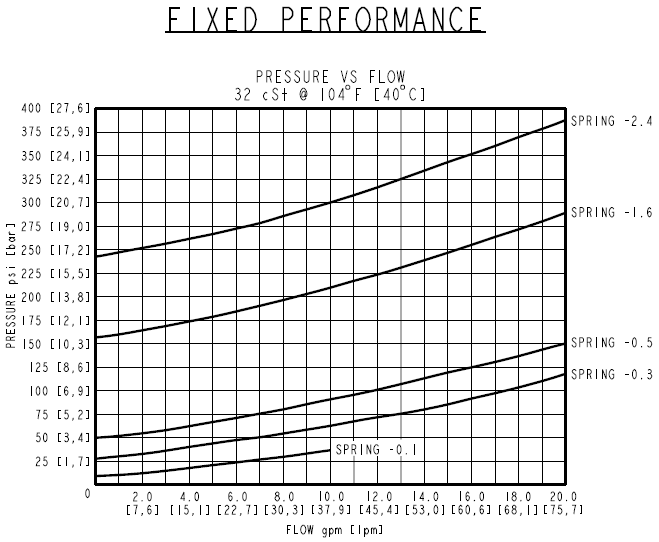

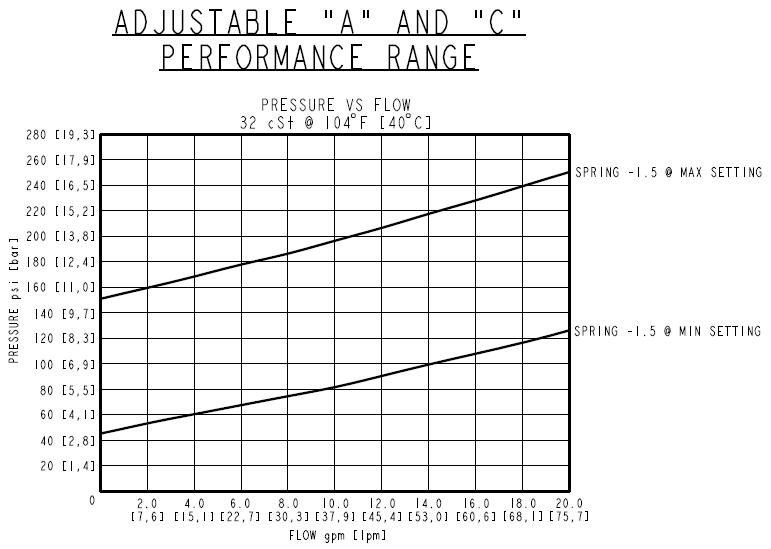

RV10-21_PERF(2022-02-24) RV10-21_PERF2(2022-02-24)

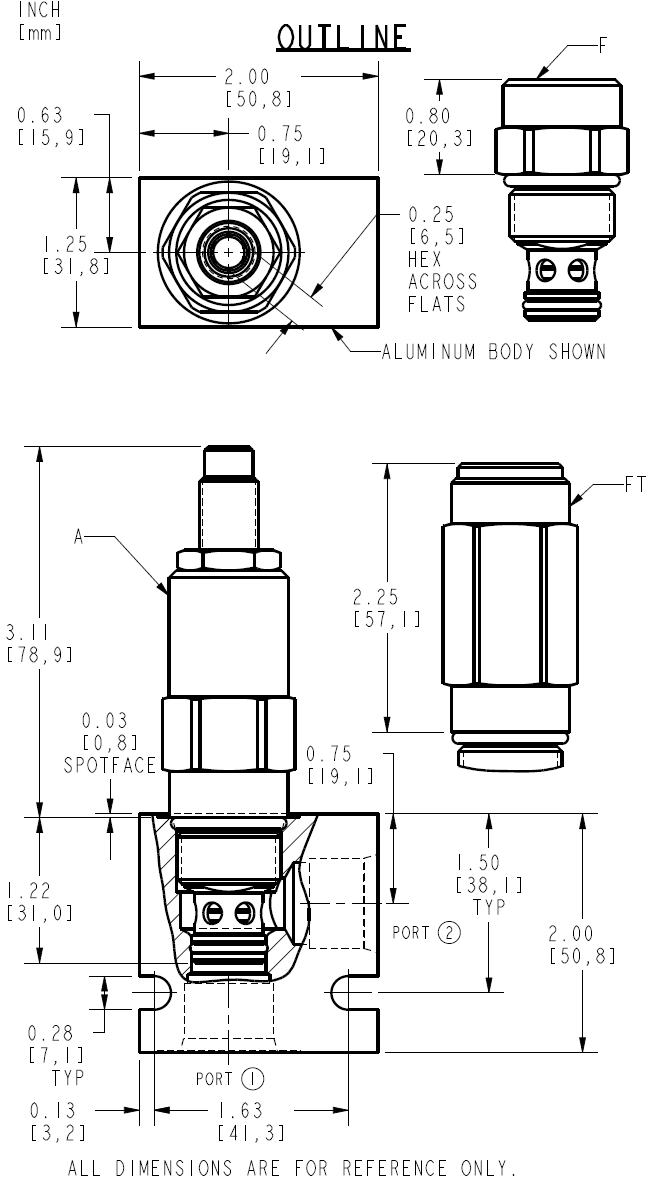

RV10-21_DIM(2022-02-24)
Cavity:
  • VC10-2
Cartridge installation torque:
  • 32.6 to 35.4 N-m (24 to 26 ft-lb)
Orientation restriction:
  • None
Seal kit:
  • SK10-2X-O X=seal option
Housings:

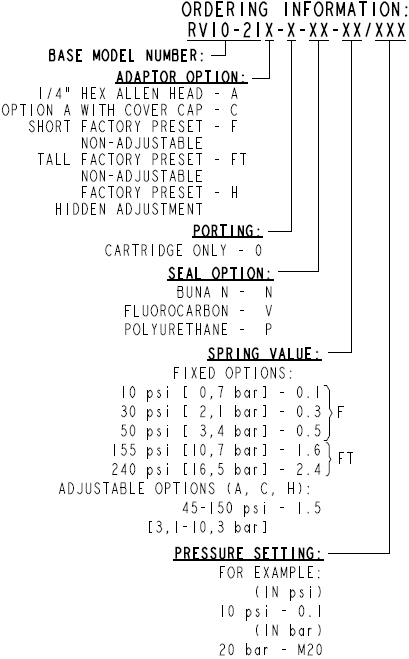

RV10-21_ORDER(2022-02-24)

Model Options

RV10-21F-H-J-R/S
F Adjustment Option
CODE
DESCRIPTION
A
1/4" Hex Allen Head
C
1/4" Hex Allen Head with Cover Cap
F
Factory Preset Non-Adjustable
FT
Factory Preset Non-Adjustable Tall
H
Factory Preset Hidden Adjustment
H Line Body
CODE
DESCRIPTION
0
No Body
6T
Aluminum SAE 6
8T
Aluminum SAE 8
6TD
Ductile Iron SAE 6
8TD
Ductile Iron SAE 8
2B
Aluminum BSPP 1/4" (2)
3B
Aluminum BSPP 3/8" (3)
4B
Aluminum BSPP 1/2" (4)
4BD
Ductile Iron BSPP 1/2" (4)
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
R Spring
CODE
DESCRIPTION
Fixed Options (code F)
0.1
0.7 bar (10 psi)
0.3
2.1 bar (30 psi)
0.5
3.4 bar (50 psi)
Fixed Options (code FT)
1.6
10.7 bar (155 psi)
2.4
16.5 bar (240 psi)
Adjustable Options (A, C, H)
1.5
3.1 to 10.3 bar (45 to 150 psi)
S Setting
CODE
DESCRIPTION
MXXX
Pressure Setting in XXX bar
XX
Pressure Setting in XX psi (x 100)
