Description

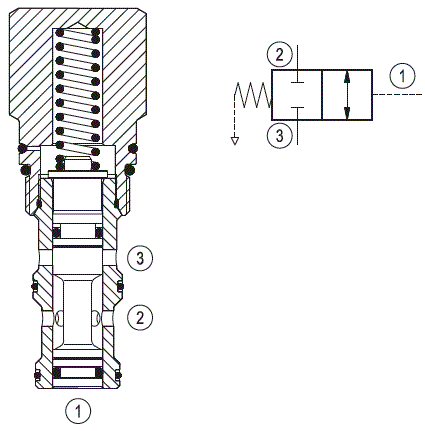

Flow is blocked bi-directionally at 2 and 3 until pressure at 1 rises to overcome the spring bias against the spool. When this bias pressure is surpassed, the spool shifts, allowing flow from 2 to 3, or 3 to 2. The spring chamber is sealed and vented to atmosphere, allowing consistent shifting with only spring bias pressure independent of conditions at 2 or 3.

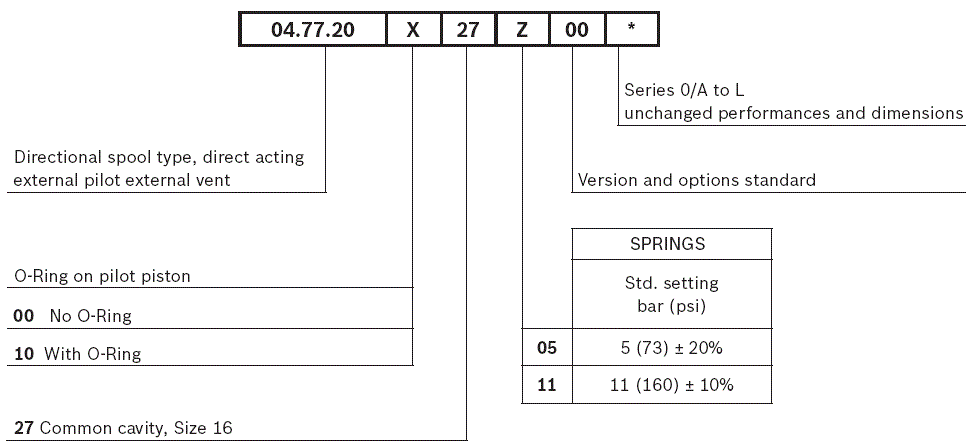

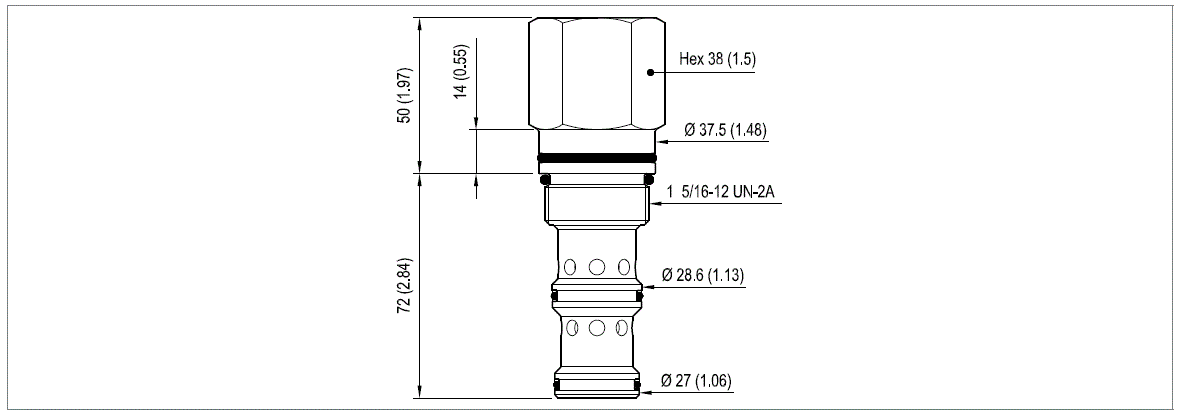

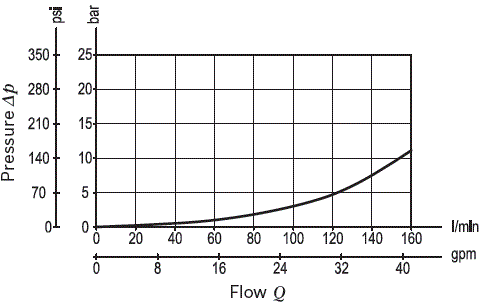

1) Measured at 200 bar (2900 psi)
