VLST-10A

RE18321-60-01(2023-11-24)
Description

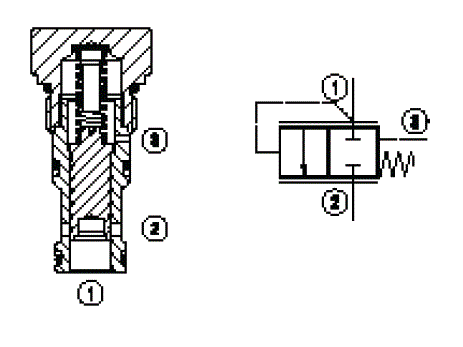

When pressure at 1 rises above the selected spring bias pressure against the spool, the valve shifts to allow flow from 1 to 2. Pilot pressure at 3 is additive to the spring bias pressure. The valve may be used in switching or compensation type applications.

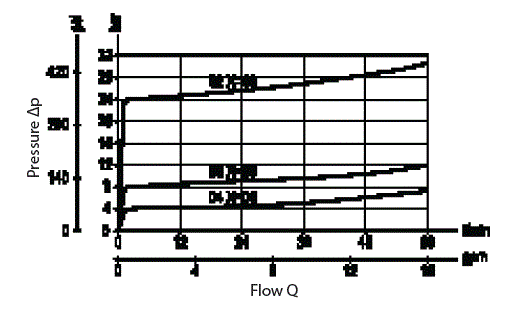

¹) Measured at 200 bar (2900 psi)

²) Standard version X=00 type

³) Only external seals for 10 valves

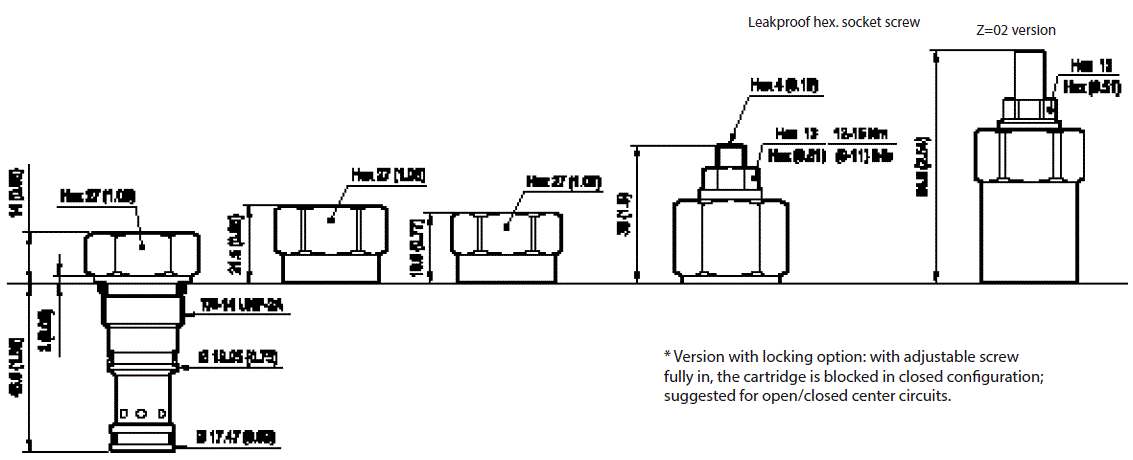

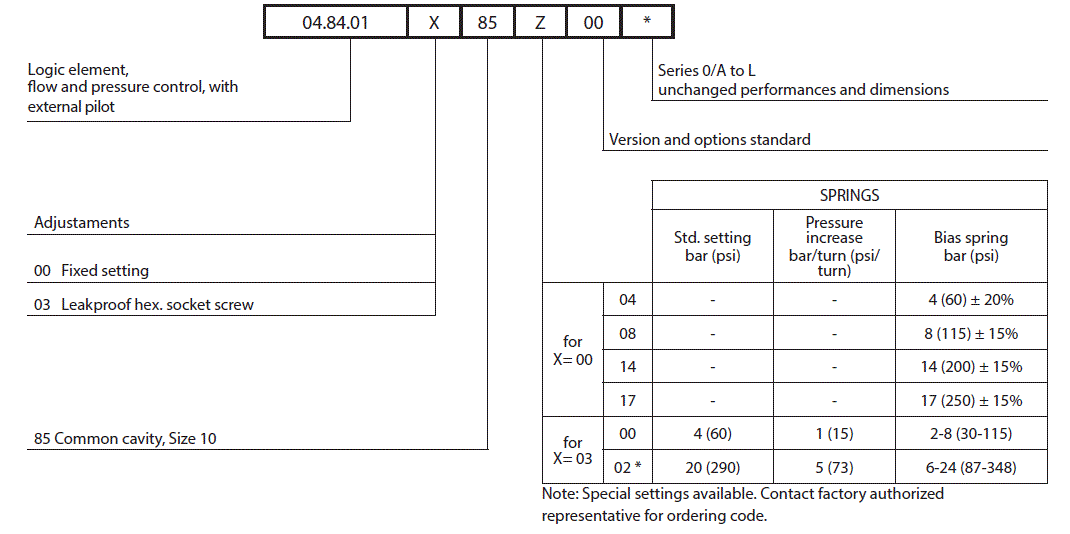

General:
Max. operating pressure:
  • 350 bar (5000 psi)
Max. flow:
  • 60 l/min (16 gpm)
Max. internal leakage¹):
  • 50 cm³/min. (3 cu.in./min.)
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 41 - 47 Nm (30 - 35 ft-lbs)
Weight²):
  • 0.12 kg (0.27 lbs)
Cavity:
  • CA-10A-3C (see data sheet 18325-70)
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit³):
  • Code: RG10A9010520100
  • material no: R901111367
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14
Installation position:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50
