Proportional valves pilot operated pressure reducing


Cartridge Valves - Electro-proportional Valves - Pressure reducing
VEP-5A-2R-06-P

Technical data
Note: Coils must be ordered separately.
General:
Weight:
- 0.3 kg (0.66 lbs)
Installation orientation:
- Optional
Fluid Temperature:
- -30 to 60 (-22 to 140)
Hydraulic:
Max. operating pressure port 2:
Max. operating pressure port 1:
Flow range:
Max. internal leakage:
Fluid temperature range:
Fluids:
Installation torque:
Recommended degree of fluid contamination:
Cavity:
Lines bodies and standard assemblies:
Seal kit:
- code
- material no.
Seal kit coil:
- code
- material no.
Other technical data:
Electrical:
Type of voltage:
- 12 DC voltage
Coil type:
- S5
Supply voltage:
- See data sheet RE 18325-90
Nominal voltage:
- ± 10%
Power consumption:
- 23 W
Duty cycle:
- 100%
Type of protection:
- See data sheet RE 18325-90

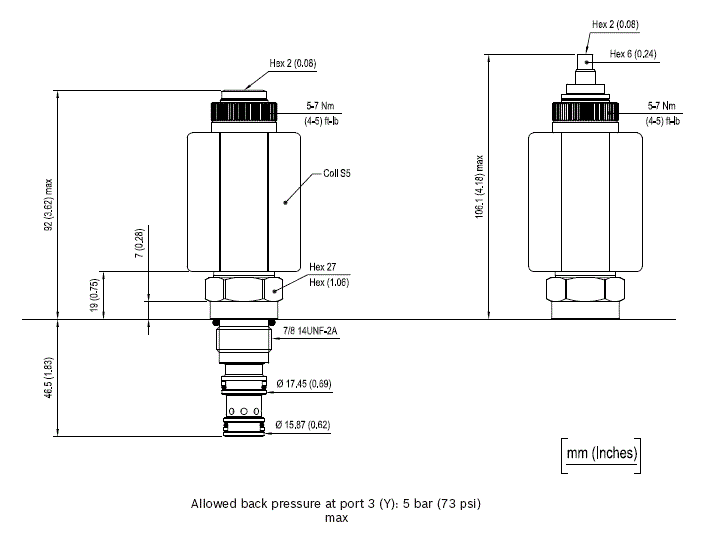

Dimensions

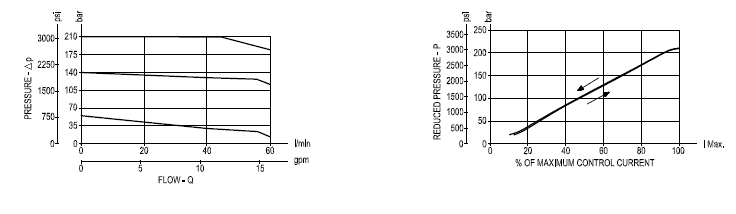

Performance graphs
Note (1): It is recommended to use coil 12 DC.
Note (2): It is recommended to bleed air carefully before operation.
Note (3): Performance using coil without diode.

I
P bar (psi)
Coils
I min:
0.1 A
15 (218)
12 DC
I max:
1.3 A
210 (3045)
12 DC
PMW Frequency:
120-150 Hz
Hysteresis:
< 5%

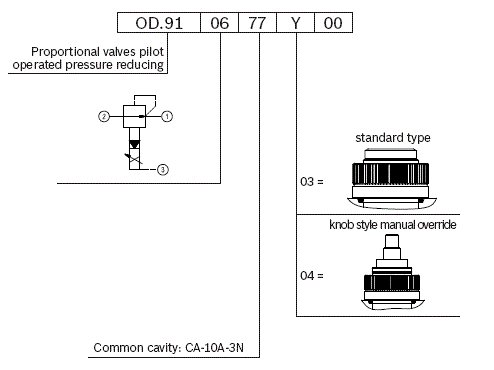

Ordering code
