Cartridge Valves - Electro-proportional Valves - Pressure relief

VEP-5B-2S-10A-P

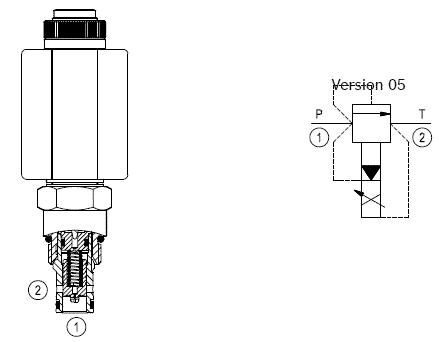

RE18323-66-01(2023-11-07)
General:
Weight:
  • 0.3 kg (0.66 lbs)
Installation orientation:
  • Optional
Fluid Temperature:
  • -30 to 60 (-22 to 140)
Hydraulic:
Max. operating pressure:
Flow range:
Max. internal leakage:
Fluid temperature range:
Fluids:
Installation torque:
Recommended degree of fluid contamination:
MTTFD:
Cavity:
Lines bodies and standard assemblies:
Seal kit:
  • code material no.
Seal kit coil:
  • code material no.
Other technical data:
  • Note: (*) at 20% of pressure setting. Oil at 46 cSt.
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • S5
Supply voltage:
  • 12 DC
Nominal voltage:
  • ± 10%
Power consumption:
  • 23 W
Duty cycle:
  • 100 %
Type of protection:
  • Note: Note: Coils must be ordered separately.
  • See data sheet RE 18325-90

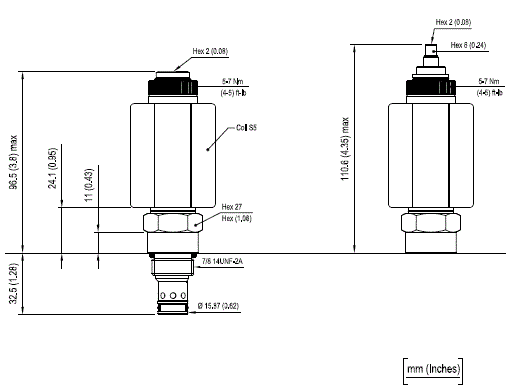

RE18323-66-dim(2023-11-07)

Proportional valves pilot operated relief

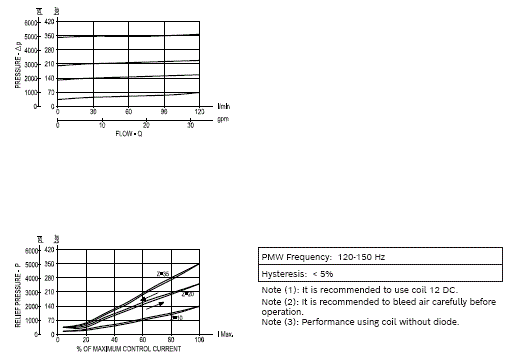

RE18323-66-02(2023-11-07)

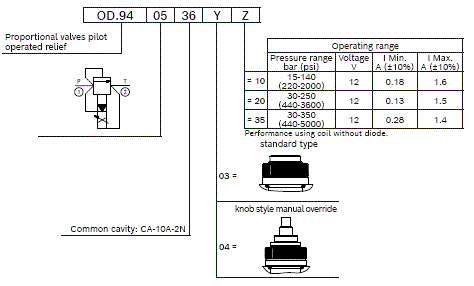

RE18323-66-order(2023-11-07)
