VEP-5B-2S-D

Note: Coils must be ordered separately.

General:
Weight:
  • 0.23 kg (0.51 lbs)
Installation orientation:
  • Optional
Fluid Temperature:
  • -30 to 60 (-22 to 140)
Hydraulic:
Max. operating pressure:
Flow range:
  • l/min.(gpm)
Ma x . internal leakage (*):
Fluid temperature range:
Fluids:
Installation torque:
Recommended degree of fluid contamination:
Cavity:
Lines bodies and standard assemblies:
Seal kit:
  • code
  • material no.
Seal kit coil:
  • code
  • material no.
Other technical data:
  • Note: (*) at 20% of pressure setting. Oil at 46 cSt
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • S5
Supply voltage:
  • 12 DC
Nominal voltage:
  • ± 10%
Power consumption:
  • 23 W
Duty cycle:
  • 100%
Type of protection:
  • See data sheet RE 18325-90

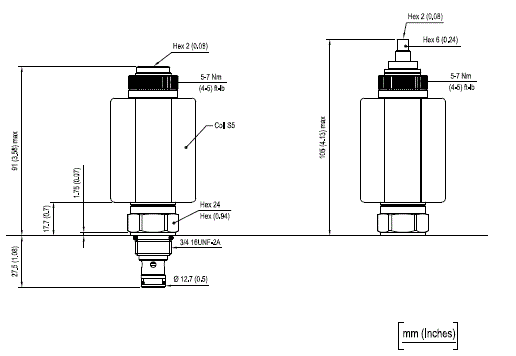

RE18323-65-dim(2023-11-08)

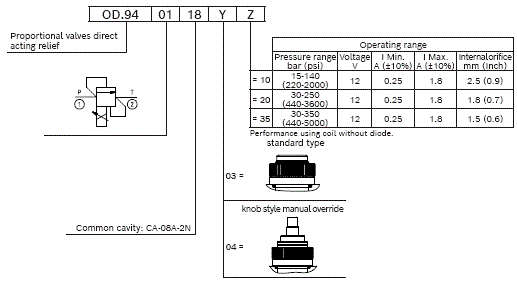

Proportional valves direct acting relief

Note (1): It is recommended to use coil 12 DC.

Note (2): It is recommended to bleed air carefully before operation.

Note (3): Performance using coil without diode.

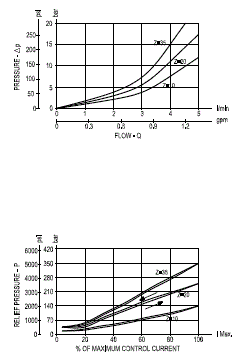

RE18323-65-02(2023-11-08)
PMW Frequency: 120-150 Hz
Hysteresis: < 5%
RE18323-65-order(2023-11-08)
