Proportional valves pilot operated relief


Cartridge Valves - Electro-proportional Valves - Pressure relief
VEP-5B-2S-P


Technical data
General
Weight:
- 0.36 kg (0.79 lbs)
Installation orientation:
- Optional
Fluid Temperature:
- -30 to 60 (-22 to 140)
Hydraulic
Max. operating pressure:
Flow range:
Max. internal leakage (*):
Fluid temperature range:
Fluids:
Installation torque:
Recommended degree of fluid contamination:
Cavity:
Lines bodies and standard assemblies:
Seal kit:
- code
- material no.
Seal kit coil:
- code
- material no.
Other technical data:
(*) at 20% of pressure setting. Oil at 46 cSt.
Electrical
Type of voltage:
- DC voltage
Coil type:
- S5
Supply voltage:
- 12 DC V
Nominal voltage:
- ± 10%
Power consumption:
- 23 W
Duty cycle:
- 100%
Type of protection:
Note: Coils must be ordered separately.
- See data sheet RE 18325-90

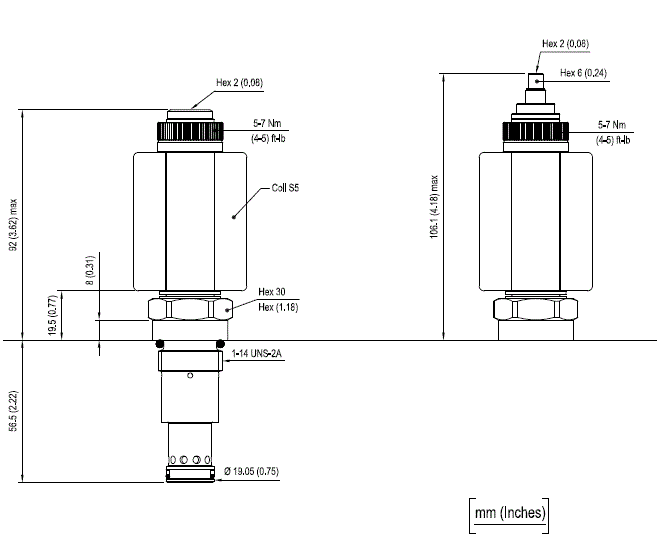

Dimensions

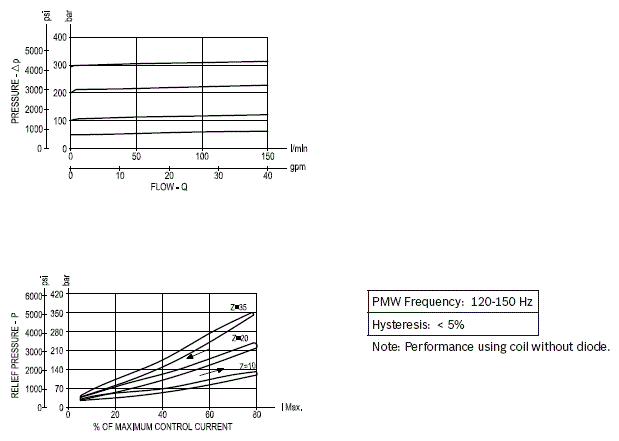

Performance graphs

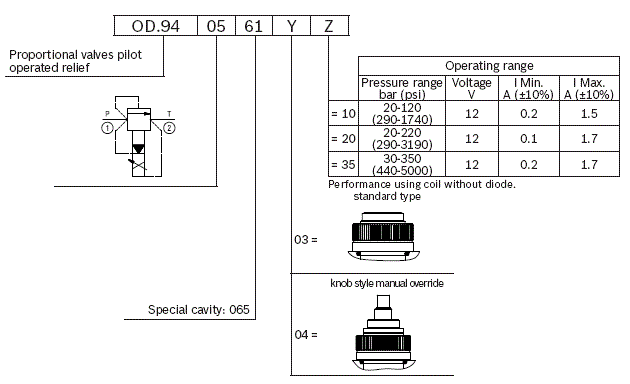

Ordering code
