1) Only external seals for 10 valves

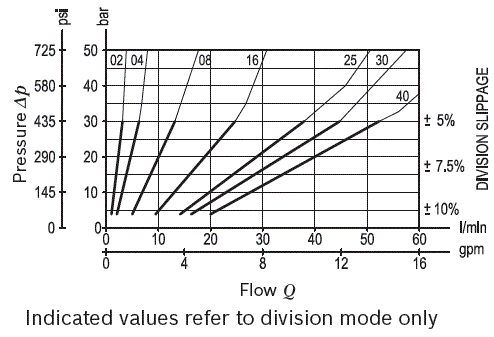

Slippage (tolerance) from theoretical divided flows: ±5% to ±10%, depending from inlet flow (see diagram).
N.B. Slippage is lowest toward upper limit of nominal range.
Pressure min. - max.:
-
10 - 350 bar (145 - 5000 psi)
Flow range:
-

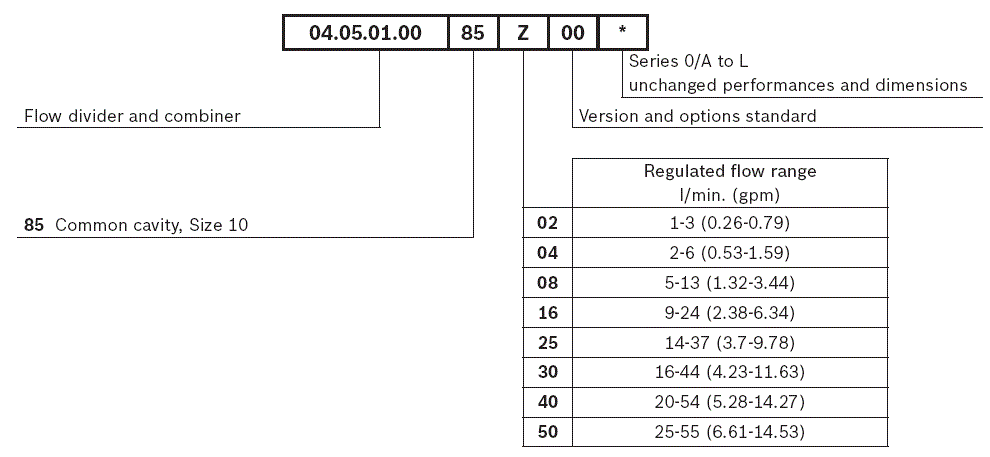

see “Range of total flow” table
Fluid temperature range:
-
-30 to 100 °C (-22 to 212 °F)
Installation torque:
-
41 - 47 Nm (30 - 35 ft-lbs)
Cavity:
-
CA-10A-4N (see data sheet 18325-70)
Lines bodies and standard assemblies:
-
Please refer to section “Hydraulic integrated circuit” or consult
factory
Seal kit1):
-
Code: RG10A4010530100
-
material no: R901111373
Fluids:
-
Mineral-based or synthetics with lubricating properties at
viscosities of 10 to 500 mm2/s (cSt)
Recommended degree of fluid contamination:
-
Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14
