Cartridge Valves - Flow Control Valves - Flow fuse

VPN1

Description

When the lowering speed exceeds preset value, as it might happen in case of hose failure, the flow is blocked. These valves should ideally be screwed directly into the actuator outlet port. Sealing parts are superfinished and enable to lock the load in the position where the actuator is in the moment of hose failure. These valves can be supplied, on request, with an orifice on the disc, allowing an emergency lowering of the load. It is recommended to fit a flow regulator valve downstream the hose burst valve, at the end of the flexible hose, to control the lowering speed at the nominal value. The “R” gap must be adjusted to allow a flow at least 50% over the nominal regulated flow from the actuator.

The valve is only supposed to be operated in case of hose failure. Should this circumstance occur, we strongly recommend to verify the integrity of the valve and eventually to replace it in the event that the pressure spike generated by the hose failure was such to damage permanently some valve components.

General:
Max. operating pressure:
  • 315 bar (4500 psi)
Max. flow:
  • see performance graphs (‘R‘-Q) l/min. (gpm)
Fluid temperature range:
  • -30 to 100°C (-22 to 212°F)
Installation torque:
  • see “Dimensions” table Nm (ft-lbs)
Weight:
  • see “Dimensions” table kg (lbs)
Special cavity:
  • see “Dimensions”
MTTFD:
  • 150 years see RE 18350-51
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) ISO 4406 20/18/15
Installation:
  • No restrictions
Other Technical Data:
  • See data sheet RE 18350-50

* Thread in accordance with ISO 228-1

Note: Metric versions available on request. Consult factory.

RE18329-85-dim(2023-11-16)
G *
A
B
C
D
E
F
H
Hex
Weight kg (lbs)
Inst. torque Nm (ft-lbs)
Flow max. l/min. (gpm)











min.
max.
G 1/4
8.5 (0.34)
17.5 (0.69)
8 (0.32)
9.5 (0.37)
2.4 (0.1)
on request
11 (0.43)
5.5 (0.22)
0.005 (0.011)
2 (1.5)
4 (1)
25 (7)
G 3/8
10.5 (0.41)
23 (0.91)
10.5 (0.41)
12.5 (0.49)
3.5 (0.14)
on request
11 (0.43)
5.5 (0.22)
0.010 (0.022)
3 (2)
6 (2)
50 (13)
G 1/2
13 (0.51)
25 (0.98)
12 (0.47)
15 (0.59)
4.5 (0.18)
on request
15 (0.59)
7 (0.28)
0.020 (0.044)
4 (3)
16 (4)
80 (21)
G 3/4
16 (0.63)
30.5 (1.2)
17 (0.67)
18.5 (0.73)
6 (0.24)
on request
16 (0.63)
7 (0.28)
0.042 (0.093)
10 (7)
25 (7)
150 (40)
RE18329-85-02(2023-11-16)
Type
F
L
L1
L2
Tool code
Material number
VPN1.G14
11.3 (0.45)
120 (4.72)
110 (4.33)
60 (2.36)
AVA18
R930009677
VPN1.G38
15 (0.59)
120 (4.72)
108 (4.25)
80 (3.15)
AVA18-01
R931002468
VPN1.G12
18.8 (0.74)
120 (4.72)
108 (4.25)
80 (3.15)
AVA18-02
R931002469
VPN1.G34
24 (0.95)
120 (4.72)
108 (4.25)
80 (3.15)
AVA18-03
R931002470

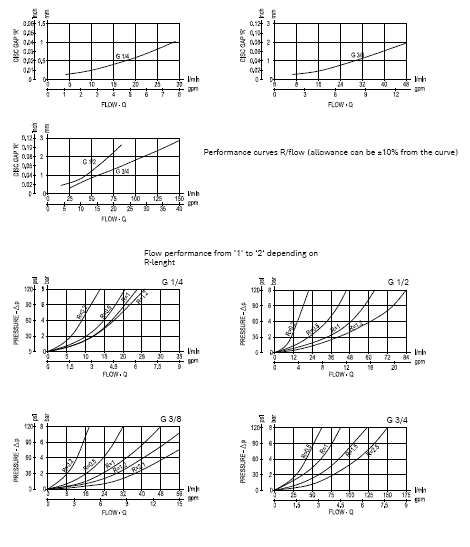

RE18329-85-03(2023-11-16)

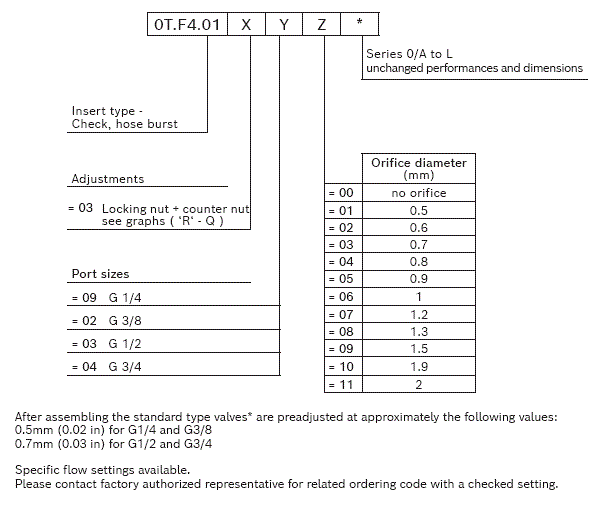

RE18329-85-order(2023-11-16)
