Cartridge Valves - Flow Control Valves - Flow regulator

VRFA-10A

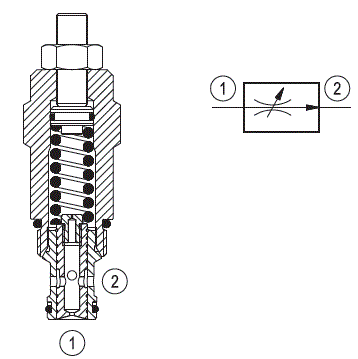

RE18321-15-01(2023-11-07)
Description

A constant flow rate, regardless of system pressures, is established from 1 to 2 while a minimum pressure differential of 14 bar (200 psi) exists between the two ports. Output flow can be varied through a limited range of adjustment and coordinate change in minimum required pressure differential. Flow from 2 to 1 is limited by the diameter of the selected control orifice and is not pressure compensated.

1) Standard version X=03 type

2) Only external seals for 10 valves

General:
Pressure min. - max.:
  • 14 - 350 bar (200 - 5000 psi)
Flow range:
  • see “Regulated flow range” table
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 41 - 47 Nm (30 - 35 ft-lbs)
Weight1):
  • 0.26 kg (0.57 lbs)
Cavity:
  • CA-10A-2N (see data sheet 18325-70)
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit2):
  • Code: RG10A2010520100
  • material no: R901111363
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14
Installation:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50

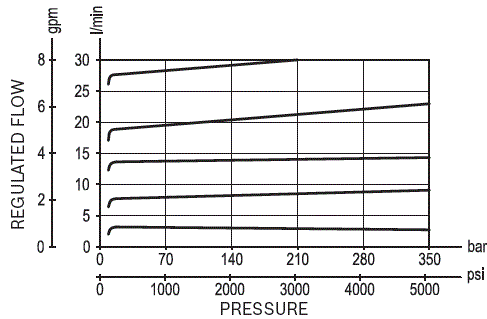

RE18321-15-02(2023-11-07)

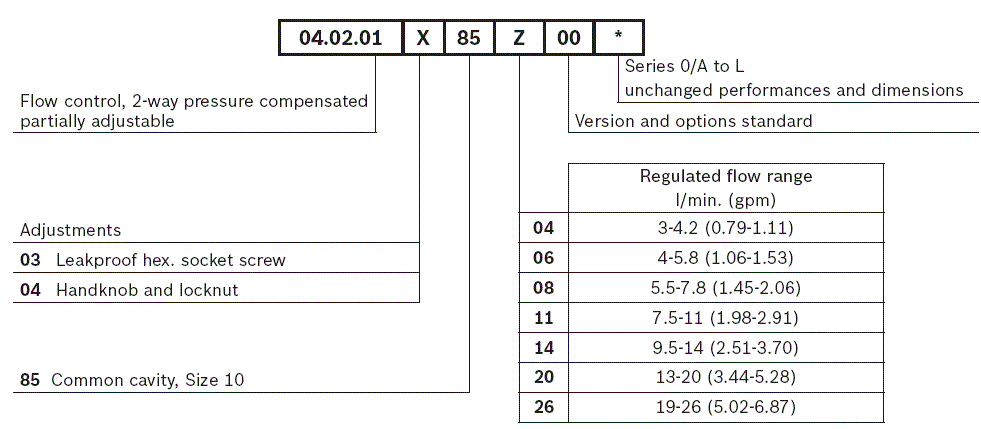

RE18321-15-order(2023-11-07)
RE18321-15-dim(2023-11-07)
