Cartridge Valves - Pressure Control Valves - Pressure relief

VS-80

RE18318-25-01(2023-11-23)
Description

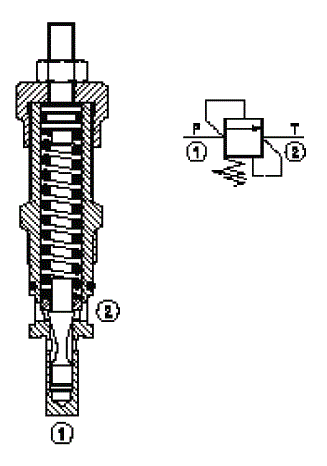

Flow is blocked from 1 to 2 until pressure increases to meet the selected valve setting, lifting the poppet from its seat and allowing relief flow through 2 to tank. Pressure at 2 is additive to the relief setting of the valve. The unique Bosch Rexroth Oil Control poppet design provides enhanced stability at all flows and pressures.

¹) At 80% of pressure setting

²) Only external seals for 10 valves

General
Max. operating pressure port 1 (P):
  • 350 bar (5000 psi)
Max. pressure admitted port 2 (T):
  • 140 bar (2000 psi)
Max. flow:
  • 80 l/min (21 gpm)
Max. internal leakage¹):
  • 15 drops/min.
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 83 - 92 Nm (61 - 68 ft-lbs)
Weight:
  • 0.35 kg (0.77 lbs)
MTTFD:
  • 150 years see RE 18350-51
Special cavity:
  • 009 (see data sheet 18325-75)
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit²):
  • Code: RG0009010000100
  • material no: R930001694
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10μm (NAS 8) / ISO 4406 20/18/15
Installation position:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50
RE18318-25-02(2023-11-23)

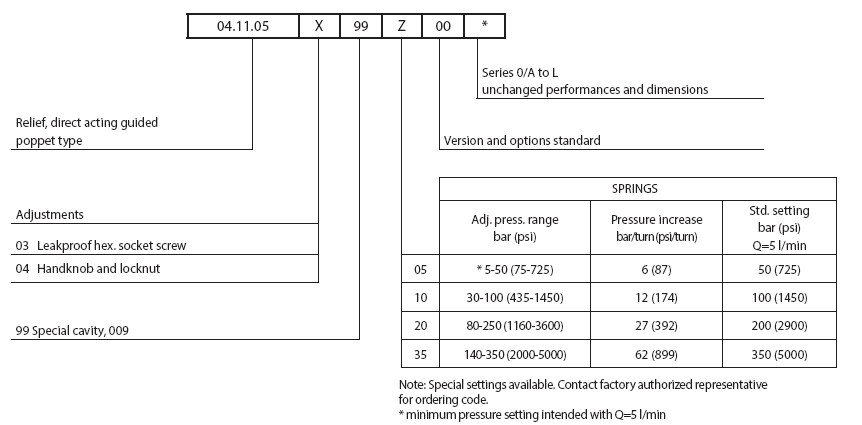

RE18318-25-order(2023-11-23)

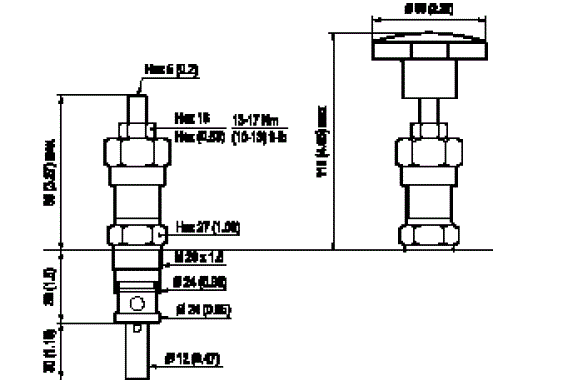

RE18318-25-dim(2023-11-23)
