Cartridge Valves - Pressure Control Valves - Pressure relief

VSPN-10A

RE18318-08-01(2023-11-23)
Description

Flow is blocked from 1 to 2 until pressure increases to meet the selected valve setting, lifting the conical, pilot-stage poppet from its seat. This action exhausts oil above the main-stage piston (spool type), allowing it to shift and provide relief flow through 2 to tank. Pressure at 2 is additive to the relief setting of the valve.

¹) Measured at 200 bar (2900 psi)

²) Standard version X=03 type

³) Only external seals for 10 valves

General
Max. operating pressure port 1 (P):
  • 420 bar (6000 psi)
Max. pressure admitted port 2 (T):
  • 350 bar (5000 psi) for version 03 210 bar (3000 psi) for version 04
Flow range:
  • 3 - 120 l/min (1 - 32 gpm)
Max. internal leakage¹):
  • 200 cm³/min. (12 cu.in./min.)
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 41 - 47 Nm (30 - 35 ft-lbs)
Weight²):
  • 0.21 kg (0.46 lbs)
Cavity:
  • CA-10A-2N (see data sheet 18325-70)
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
MTTFd:
  • 150 years see data sheet 18350-51
Seal kit³):
  • Code: RG10A2010530100
  • material no: R901111366
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14
Installation position:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50

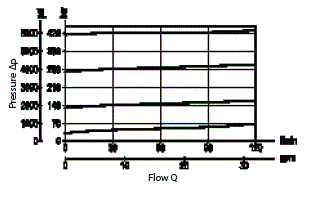

RE18318-08-02(2023-11-23)

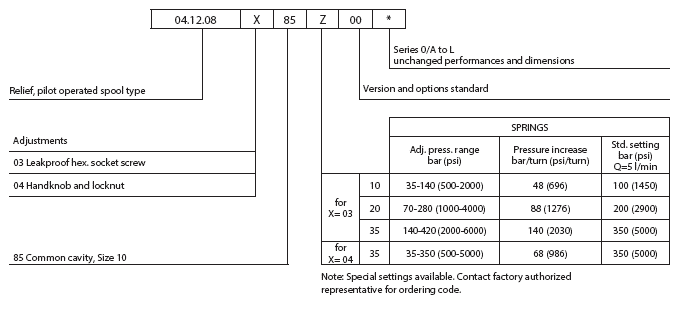

RE18318-08-order(2023-11-23)

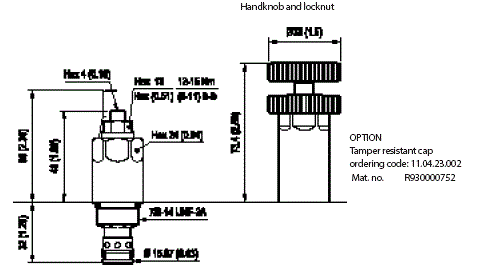

RE18318-08-dim(2023-11-23)
