Description

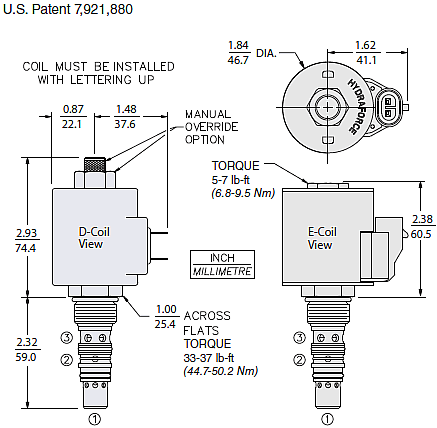

A solenoid operated, 3 port, normally closed, on/off, poppet-type, screw-in hydraulic cartridge valve designed to function as a load holding or blocking valve in applications requiring low leakage.
Operation

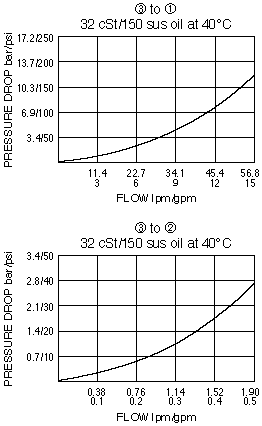

When de-energized, flow is blocked at all ports. When energized, flow is allowed to pass from port 3 to ports 1 and 2, but will not allow flow from ports 2 and 1 to port 3.
Features
- Continuous-duty rated coil.
- Hardened precision seat for long life and low leakage.

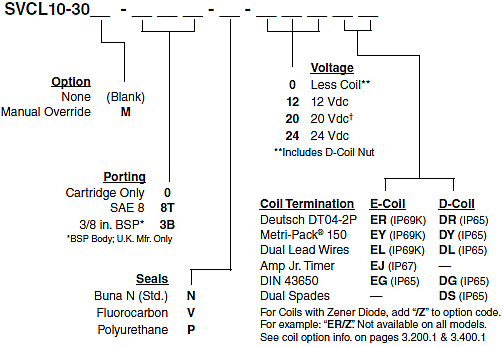

- Optional coil voltages and terminations.
- Efficient wet-armature construction.
- Cartridges are voltage interchangeable.
- All ports may be fully pressurized.
- Unitized, molded coil design.
- Optional waterproof E-Coils rated up to IP69K.
- Industry common cavity.
- Reduce manifold space claim.
