Cartridge Valves - Solenoid Valves - 2-ways

VEI-16-NC_004

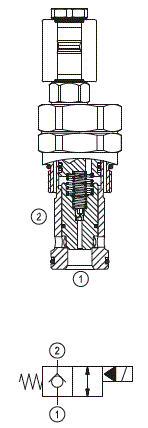

RE18323-30-01(2023-11-07)

New VEI-16 family incorporates a new solenoid concept providing excellent performance and enables cartridges to work in severe environment. Cartridges also incorporates advanced design of hydraulic parts providing excellent hydraulic performance.

General:
Weight:
  • 1.13 kg (2.5 lbs)
Installation orientation:
  • Optional
Fluid Temperature:
  • -40 to 100 (-40 to 212)
Fluid Temperature:
  • -30 to 90 (-22 to 194)
Salt spray test to DIN EN ISO 9227:2017-07:
  • 500h
Hydraulic:
Max. operating pressure:
Max. proof pressure:
Rated flow:
Fatigue cycle life:
Max. internal leakage:
Fluid temperature range:
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt):
Installation torque:
Recommended degree of fluid contamination:
MTTFD:
Special cavity:
Lines bodies and standard assemblies:
Seal kit:
  • code
  • material no.
Seal kit coil and standard cap:
  • code
  • material no.
Other technical data:
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • D36 see 18325-90
Supply voltage:
  • See data sheet 18325-90
Label Needed:
  • See characteristic curve
Power consumption:
  • 20 W
Duty cycle coil:
  • See characteristic curves %
Type of protection:
  • Note: Note: Coils must be ordered separately
  • See data sheet 18325-90

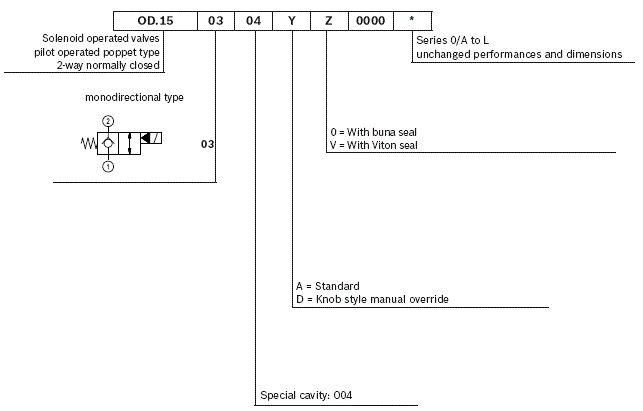

RE18323-30-order(2023-11-07)

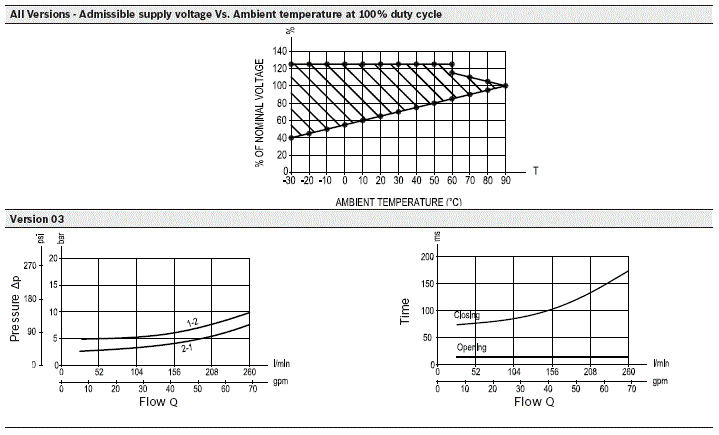

RE18323-30-02(2023-11-07)

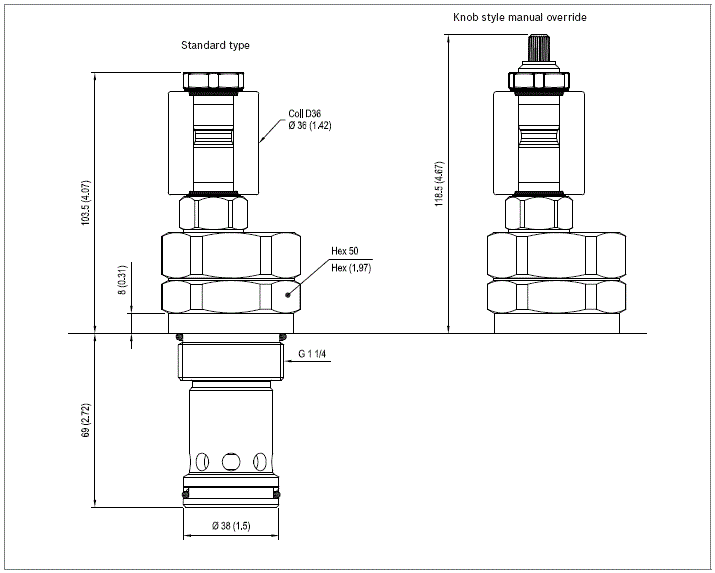

RE18323-30-dim(2023-11-07)

Solenoid operated valves, poppet 2-way normally closed
