VS91-VS92-VS95

3 way 2 position valve.

Directional spool valve with direct solenoid control.

Hydraulic / pneumatic pilot , or manual push and twist control available as option.

Control spool operated by solenoid, with easily removable coil fastened by a ring nut.

Wet pin tube for DC coil, with push rod for mechanical override in case of voltage shortage.

Unrestricted 360° orientation of DC coil.

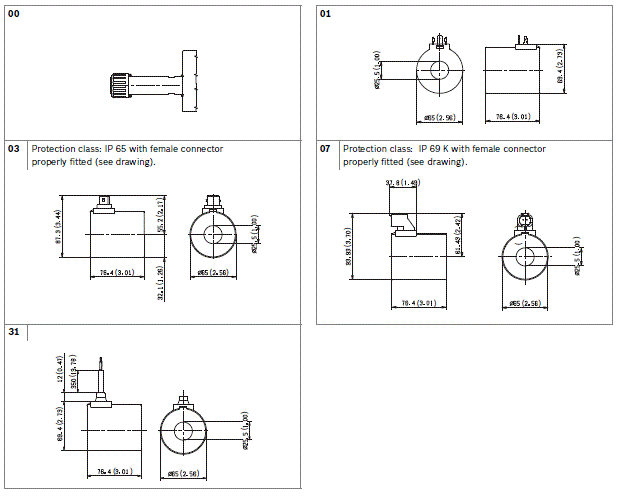

Control spool held in normal position by return spring. Optional manual override (push-button or screw type). Connectors available: DIN 43650 – ISO 4400, AMP Junior, DT04-2P (Deutsch), Free leads.

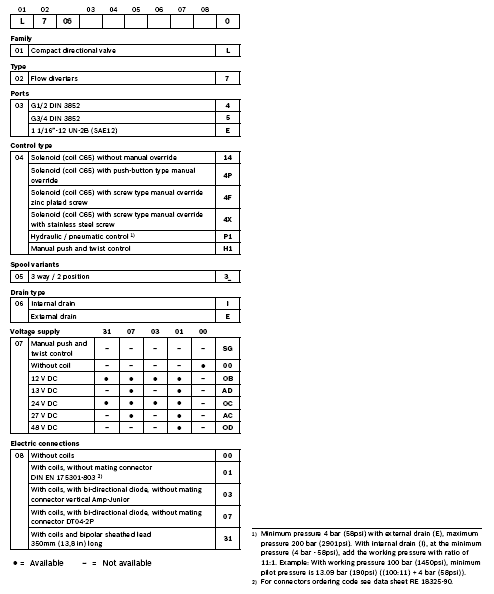

Size 12

Series 00

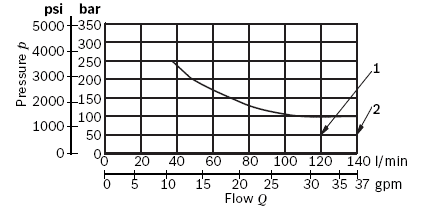

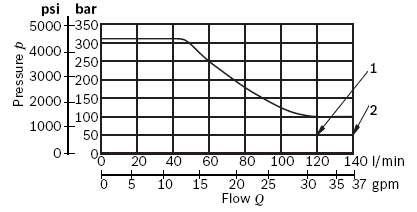

Maximum operating pressure 310 bar (4500 psi)

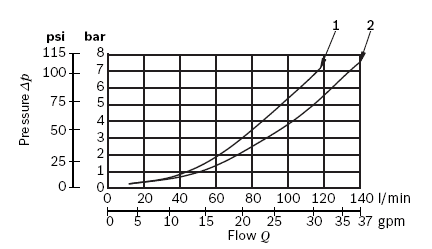

Maximum flow 140 l/min (36.98 gpm)

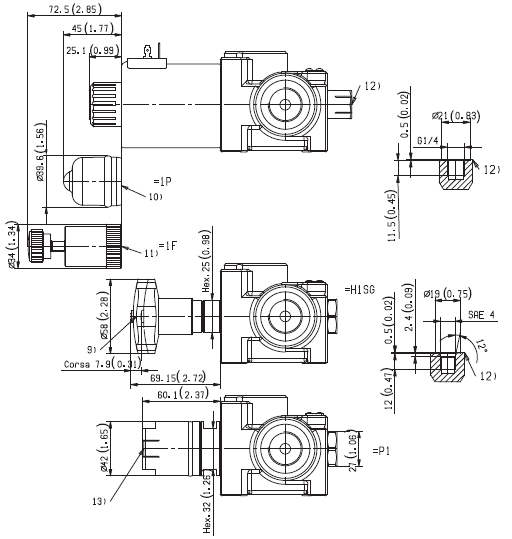

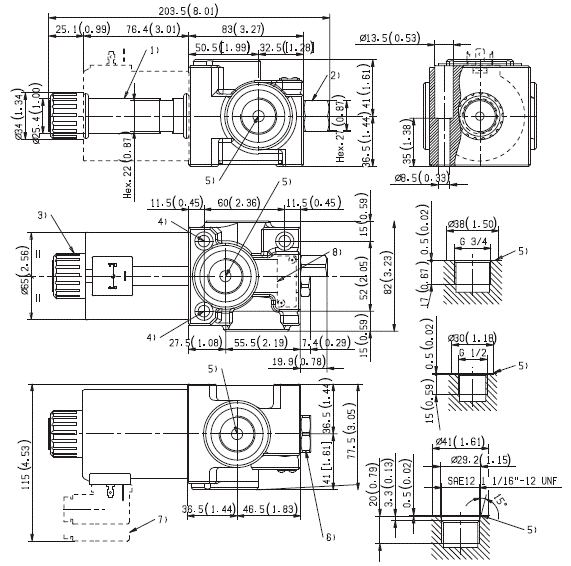

Ports G 1/2 - G 3/4 - SAE12

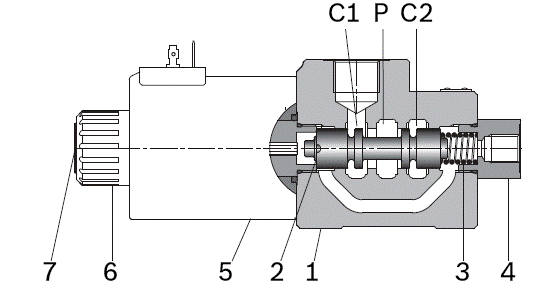

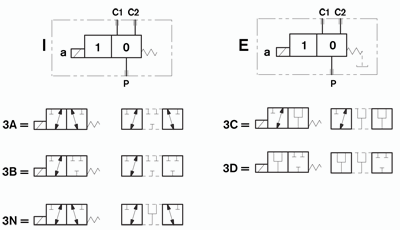

A valve basically consists of a housing (1), a control spool (2), a return spring (3) and a solenoid (5). It is designed to select which one of two circuits (C1 or C2) is to be supplied with the oil delivered from one single hose (P): with spool in position “0”, when the solenoid is de-energized, the flow goes from P to C1, with spool in position “1”, when the solenoid is energized the flow goes from P to C2. With the coil de-energized, the return spring (3) pushes back the spool (2) and holds it in position “0”.

The coil (5) is fastened to the tube by the ring nut (6).

The manual override (7) allows to shift the spool (2) also in case of voltage shortage.

An external drain, to be connected to tank, ensures shifting operations also at higher working pressure.

Hydraulic / pneumatic pilot control, or manual push and twist control for spool shifting are available upon request.
